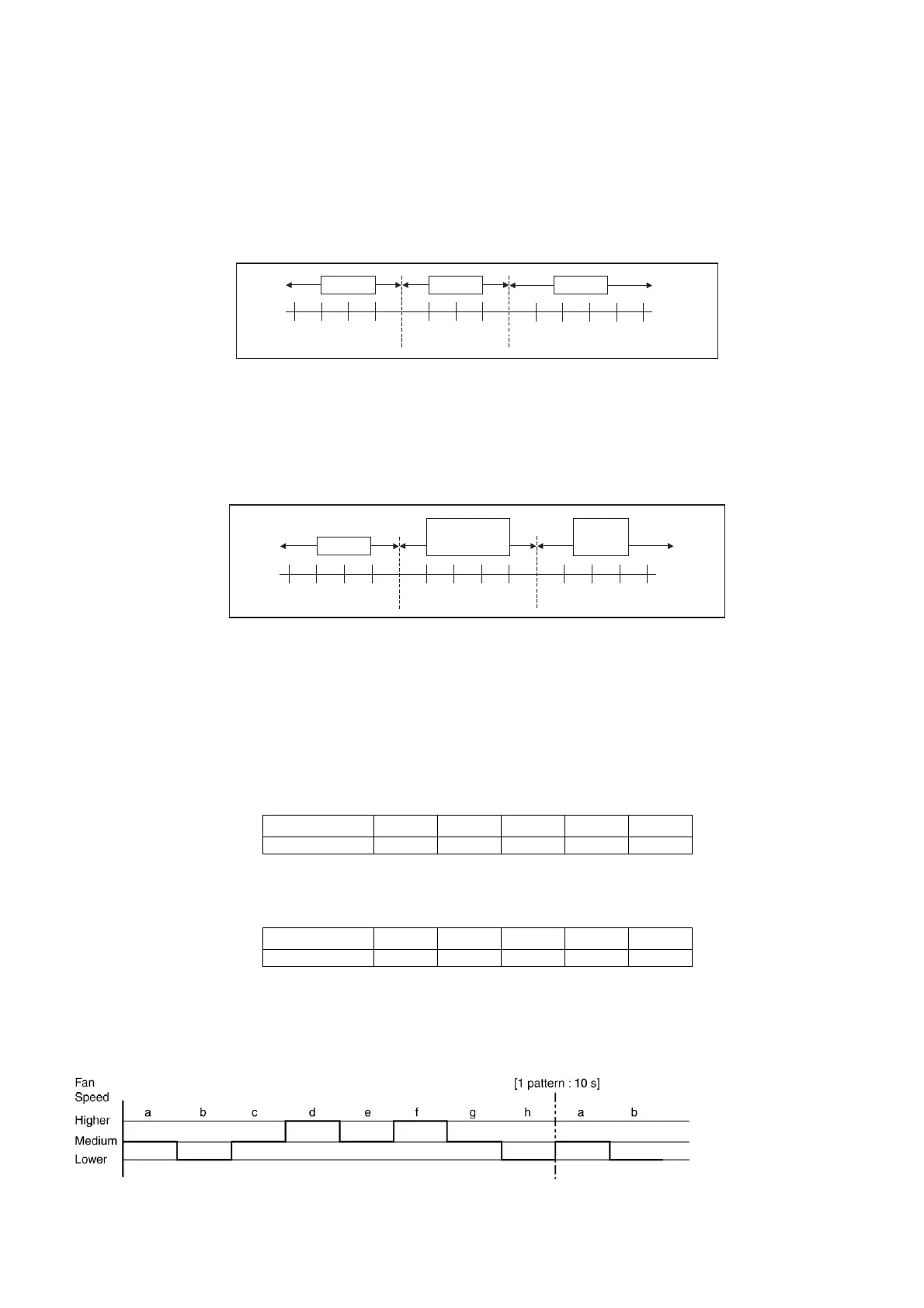

14.1.5 Automatic Operation
 This mode can be set using remote control and the operation is decided by remote control setting temperature,
remote control operation mode and indoor intake air temperature.
 During operation mode judgment, indoor fan motor (with speed of Lo-) is running for 30 seconds to detect the
indoor intake air temperature.
 Every 10 minutes, the indoor temperature is judged.
 For the 1st judgment
o If indoor intake temperature - remote control setting temperature ≥ 2.0°C, COOL mode is decided.
o If -2.0°C ≤ indoor intake temperature - remote control setting temperature < 2.0°C, DRY mode is decided.
o If indoor intake temperature - remote control setting temperature < -2.0°C, HEAT mode is decided.
6.05.04.03.02.01.00.0-1.0-2.0-3.0-4.0-5.0-6.0
Dry Cool
Heat
 For the 2nd judgment onwards
o If indoor intake temperature - remote control setting temperature ≥ 3.0°C, if previous operate in DRY mode,
then continue in DRY mode, otherwise COOL mode is decided.
o If -2.0°C ≤ indoor intake temperature - remote control setting temperature < 3.0°C, maintain with previous
mode.
o If indoor intake temperature - remote control setting temperature < -2.0°C, HEAT mode is decided.
6.05.04.03.02.01.00.0-1.0-2.0-3.0
-4.0
-5.0-6.0
Maintain
current mode
Cool
/Dry
Heat
14.2 Indoor Fan Motor Operation
14.2.1 Basic Rotation Speed (rpm)
A. Basic Rotation Speed (rpm)
i. Manual Fan Speed
[Cooling, Dry]
 Fan motor’s number of rotation is determined according to remote control setting.
Remote control ○ ○ ○ ○ ○
Tab Hi Me+ Me Me- Lo
[Heating]
 Fan motor’s number of rotation is determined according to remote control setting.
Remote control ○ ○ ○ ○ ○
Tab SHi Me+ Me Me- Lo
ii Auto Fan Speed
[Cooling, Dry]
 According to room temperature and setting temperature, indoor fan speed is determined automatically.
 When set temperature is not achieved, the indoor fan will operate according to pattern below.
 When set temperature achieved, the indoor fan speed will be fixed. When thermostat off, the fan stop periodically.

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
