Panasonic CS-Z25VKEW Installation Instruction

36

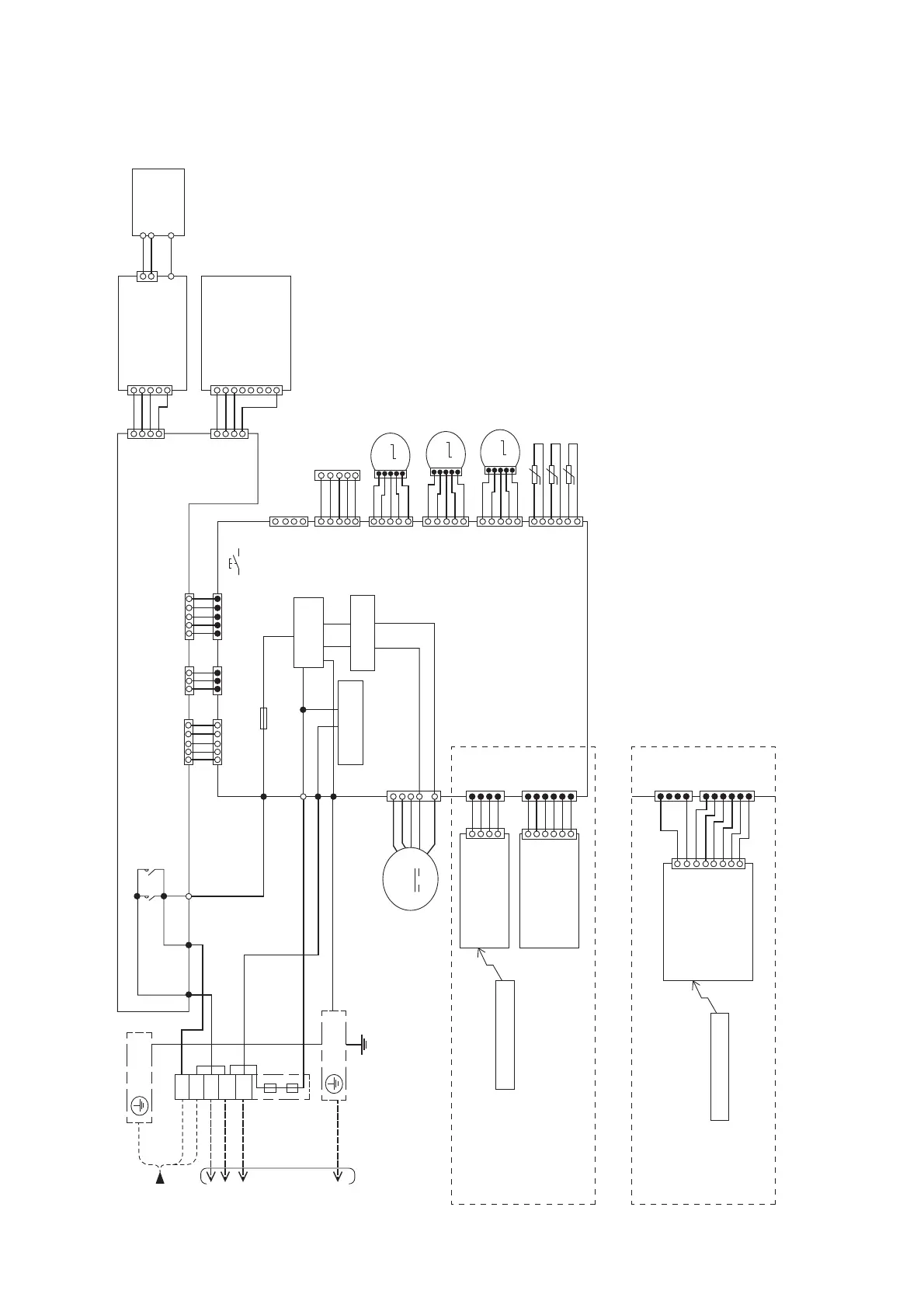

9. Wiring Connection Diagram
9.1 Indoor Unit
t° t° t°
SW01
GROUNDING TERMINAL
TO OUTDOOR UNIT
POWER SUPPLY
TERMINAL
BOARD
S1
N
L1
2
3
TEMP. FUSE 102ºC (250V, 3A) TEMP. FUSE 102ºC (250V, 3A)
Y/G
Y/G
EVAPORATOR
BR
Y
RY-PWR
ELECTRONIC CONTROLLER (SUB)
RY-PWR2
(YELLOW) AC302
(BROWN) ACL501
(BLACK) AC306
BLACK
CN-101
(GRN)
CN-DATA 1
(GRN)
CN-DATA 3
(YLW)
CN-DATA 2
(YLW)
CN1 (WHT)
HIGH VOLTAGE
POWER SUPPLY
CN2
(WHT)
NANOE
GENERATOR
1
1
1
1
4
1
2
3
5
CN-102
(WHT)
1
3
CN-103
(WHT)
1
5
1
5
1
5
3
5
W
W
W
W
W
W
W
W
W
W
W
W
W
P
W W
W
G
R
R
R
O
O
O
Y
Y
Y
P
P
P
Y
GR
BR
BR
BR
BR
BL
B
W
BL
1
1
1
1
1
1
1
1
1
1
4
5
5 5
5
6
5
5
5
5
CN-WLAN (BLK)
CN-RMT
(WHT)
CN-CNT
(WHT)
CN-STM1
(WHT)
CN-STM2
(YLW)
CN-STM3
(BLU)
CN-TH
(RED)
M M M
PIPING TEMPERATURE SENSOR 2 (THERMISTOR) PIPING TEMPERATURE SENSOR 1 (THERMISTOR) SUCTION TEMPERATURE SENSOR (THERMISTOR)
UP DOWN LOUVER MOTOR (OUTER)
UP DOWN LOUVER MOTOR (INNER) LEFT RIGHT LOUVER MOTOR
NOISE FILTER
CIRCUIT
RECTIFICATION
CIRCUIT
ELECTRONIC CONTROLLER (MAIN)
COMMUNICATION
CIRCUIT
FUSE301
T3.15A L250V
AC306 (BLK)
AC303 (WHT)
AC304 (RED)
G301 (GRN)
W
R
G
FAN MOTOR
W W W W W W W W W W
BL
W
B
R
Y
7 6 5 4
4
4
1
1
1
1
1 6
6
CN-RCV
(YLW)
CN-FM (WHT)
CN-RCV
(WHT)
CN-DISP
(WHT)
CN-DISP
(YLW)
ELECTRONIC CONTROLLER (DISPLAY)
REMOTE CONTROLLER
ELECTRONIC CONTROLLER (RECEIVER)
REMARKS B: BLUE P: PINK BR: BROWN O: ORANGE BL: BLACK G/GRN: GREEN Y/YLW: YELLOW W/WHT: WHITE R: RED Y/G: YELLOW/GREEN GR: GRAY
GROUNDING TERMINAL
M
CN-NANO
(YLW)
1
1 3 8
4
CN-WLAN
(WHT)
GR GR GR GR
ELECTRONIC
CONTROLLER
(WIFI MODULE)
W W W W W W W W
4
1
1
1
6
8
CN-RCV
(YLW)
CN-DISP
(WHT)
CN-DISP
(YLW)
REMOTE CONTROLLER
ELECTRONIC CONTROLLER (RECEIVER & DISPLAY)
(FOR Z20/25/35/42VKEW & XZ20/25/35VKEW ONLY) (FOR Z50/71VKEW & XZ50VKEW ONLY)

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
