Power failure
o During nanoe
TM
X individual operation, if power failure occurs, after power resumes, nanoe
TM
X individual
operation resumes immediately.
o During combination operation, if power failure occurs, after power resumes, combination operation resume
immediately.
nanoe
TM

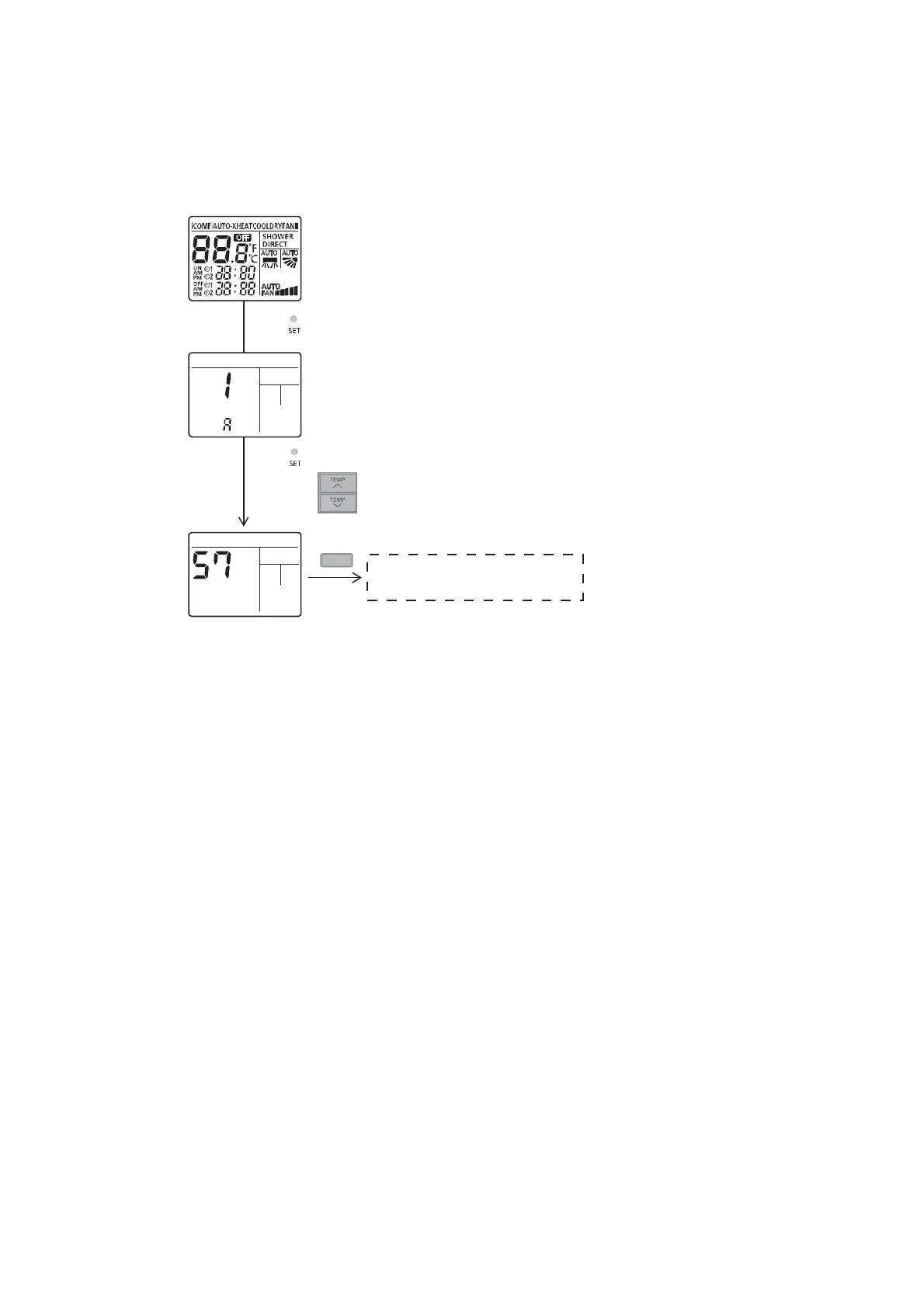

X check mode
o To enable nanoe
TM
X check mode, during nanoe
TM
X operation ON:
Normal display mode
Transmit
“NANOE™ X CHECK” code
Press SW (t ≥ 0 secs)
When SW pressed continuously for t ≥ 5 secs to enter service zone
and press
SW’s to choose function 57
SET
o During nanoe
TM
X check mode, H67 is judged when disconnection detected. Timer LED blinks.
nanoe
TM
X Abnormal Detection
o Disconnection Abnormality
Abnormal detection condition
Start from 1 sec after nanoe
TM
X power ON, 6 secs has passed and in this 6 secs period, abnormal
signal is detected continuously for 5.9 secs.
Action after abnormal detection condition fulfilled
Disconnection counters +1, nanoe
TM
X power OFF for 5 minutes and then restart. However,
according to action mode and disconnection counter, below will be implemented:
o During nanoe
TM
X Check Mode: Disconnection abnormality will judged when disconnection
counter 1. Abnormal code: H67 will memorized in EEPROM, Timer LED blinking and
nanoe
TM
X LED Off.
o Other Than Above: Disconnection abnormality will judged when disconnection counter 3.
Abnormal code: H67 will memorized in EEPROM and nanoe
TM
X LED OFF, Timer LED not
blinking.
Disconnection counters clear condition >
Disconnection counter will be cleared when operation stop. (Not nanoe
TM
X Check Mode)
o nanoe
TM
X Discharge Abnormality
Abnormal detection condition
After 30 minutes nanoe
TM
X power ON, abnormal signal is being detected continuously for 5s.
Action after abnormal detection condition fulfilled
Abnormal discharge counter +1, nanoe
TM
X power OFF for 30 minutes and then restart. When
abnormal discharge counter 12, abnormal code: H67 in analyze area (Area where abnormal code
not displayed) will be memorized.
Abnormal discharge counters clear condition
Discharge counter will be cleared when operation become normal for 50 mins above or when
operations stop.
