28
6.1.2 CS-Z50VKEW CS-Z71VKEW CS-XZ50VKEW
1120
302
1-21-2
236
42.6
60
60
60
135
135
(41-61)
410
Unit: mm

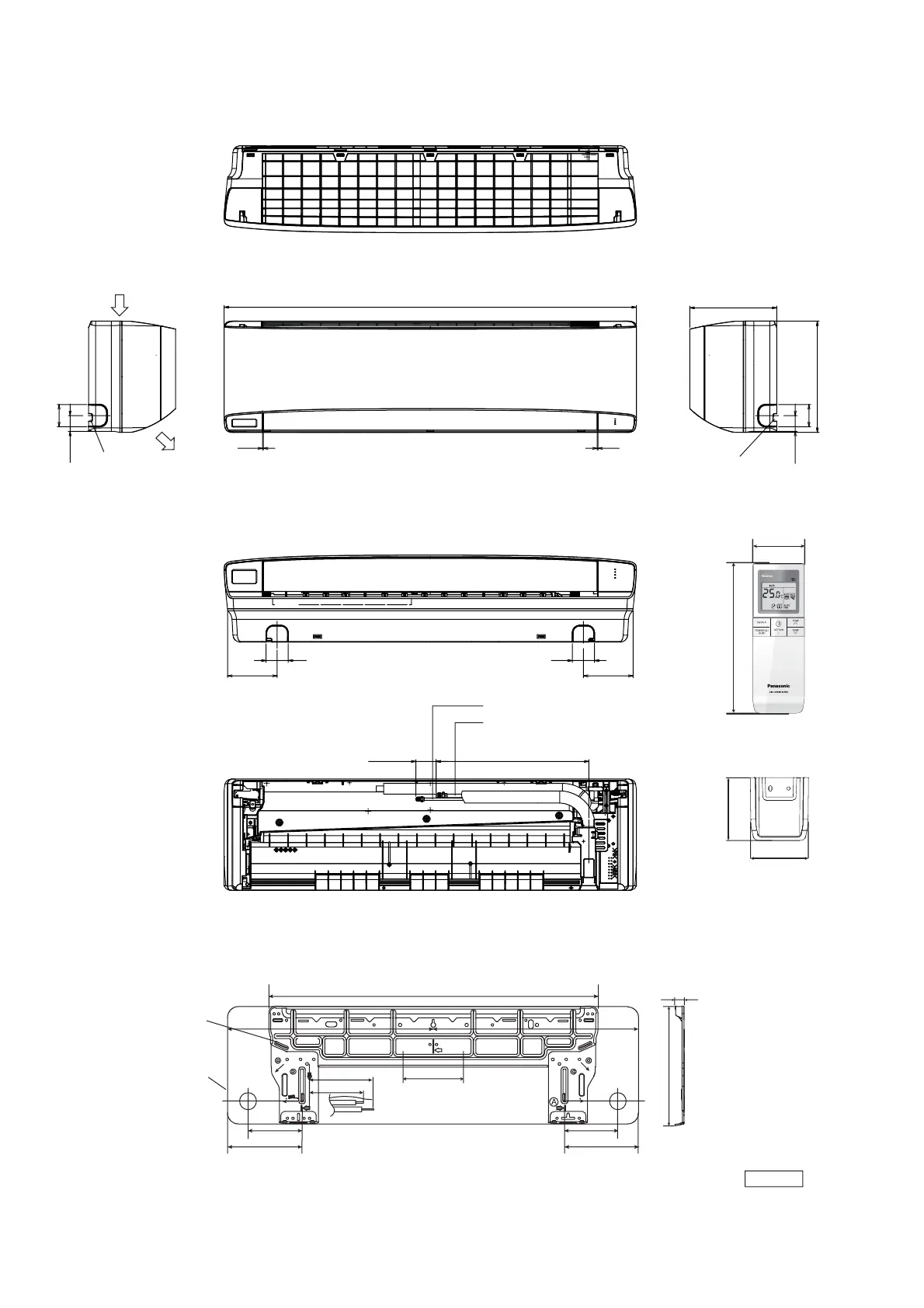

<Top View>
<Front View>
<Bottom View>
<Rear View>
Relative position between the indoor unit and the installation plate <Front View>
<Side View> <Side View>
Gas side
Liquid side
Left piping
hole
Air outlet
direction
Air intake
direction
Right piping
hole
Left
piping
hole
Right
piping
hole
Indoor unit
external
dimensions
line
Installation
plate
16.5
264.3
128
266
741.4
560 560
266
128
128
270
320
42.6
60
<Remote Control Holder>
59
165 (Close)
217 (Open)
69
64
<Remote Control>
