Panasonic CS-Z25VKEW Installation Instruction

2
CAUTION
Before performing any of the electrical installation works, please verify on which of the intended connection use. Generally
there are 2 types of indoor-outdoor connections:
○
A Single Connection (Single Indoor Unit connects with Single Outdoor Unit)
○
B Multiple Connection (Multiple Indoor Unit connect with Single Outdoor Unit)
Both connections have different connecting methods. Any mismatch connections will result in malfunctions.

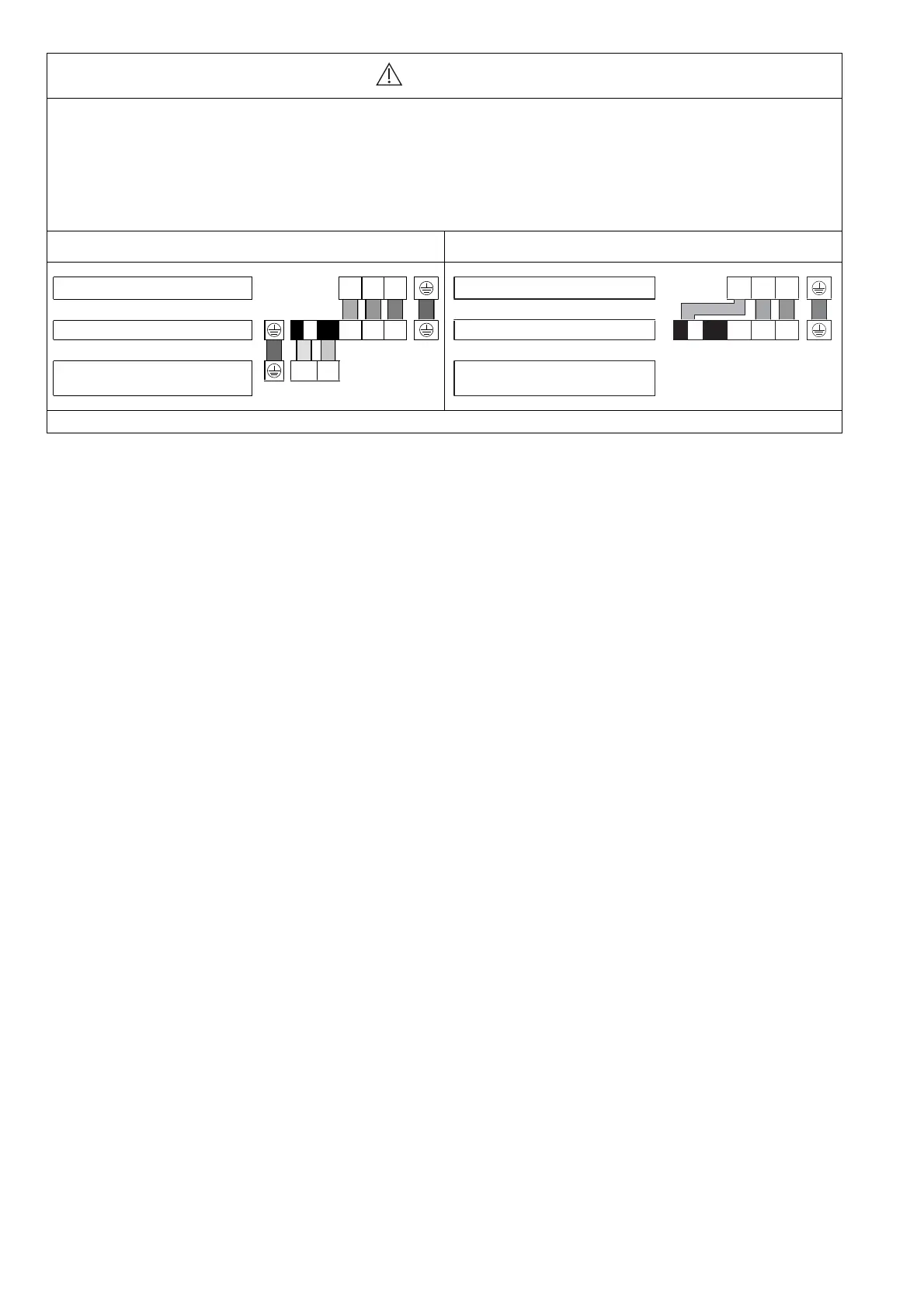

The following illustration demonstrates the correct electrical works for both type.
○
A (Single Connection)
○
B (Multiple Connection)
32S1
Colour of wires (connection cable)
Terminals on the indoor unit
Terminals on the outdoor unit
L 1 N
(Power supply cord)
Terminals on the isolating devices
(Disconnecting means)
(L) (N)
32S1
Colour of wires (connection cable)
Terminals on the indoor unit
Terminals on the outdoor unit
(Power supply cord)
Terminals on the isolating devices
(Disconnecting means)
123
23
L
1
N S1
*
Connection for multi inverter model
(Outdoor power supply)
Please refer to the provided Installation Instructions for the detailed procedures for connecting cables to Indoor Unit.

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
