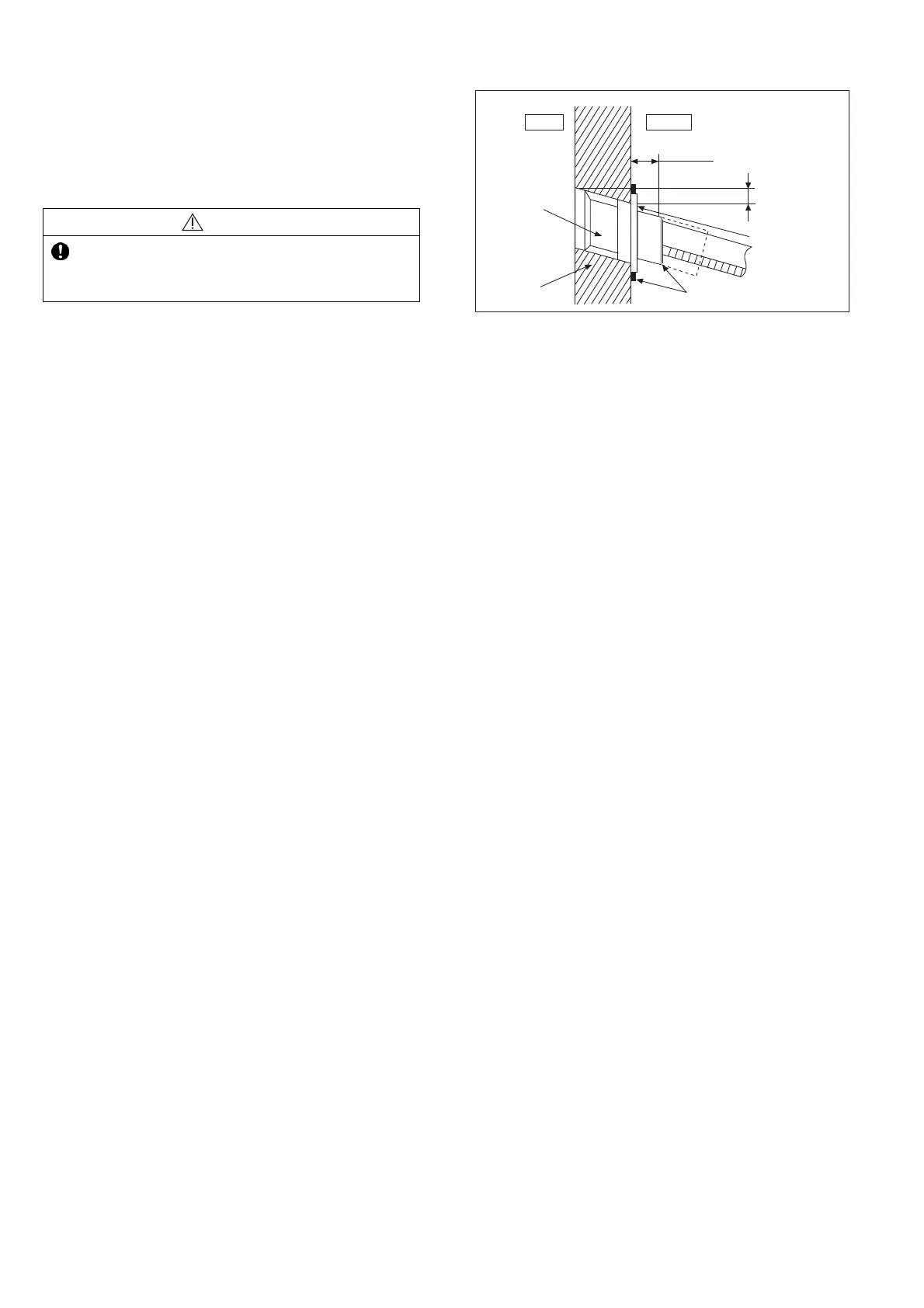

12.2.2 To Drill a Hole in the Wall and
Install a Sleeve of Piping
1 Insert the piping sleeve to the hole.
2 Fix the bushing to the sleeve.
3 Cut the sleeve until it extrudes about 15 mm
from the wall.
CAUTION
When the wall is hollow, please be sure to use
the sleeve for tube assembly to prevent dangers
caused by mice biting the connection cable.
4 Finish by sealing the sleeve with putty or
caulking compound at the final stage.
15 mm
Putty or caulking compound
ø70 mm
through hole
Indoor
Outdoor
Sleeve for tube
assembly
Approx. 5 - 7 mm
Bushing for
tube assembly
Wall

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
