Panasonic CS-Z25VKEW Installation Instruction

53

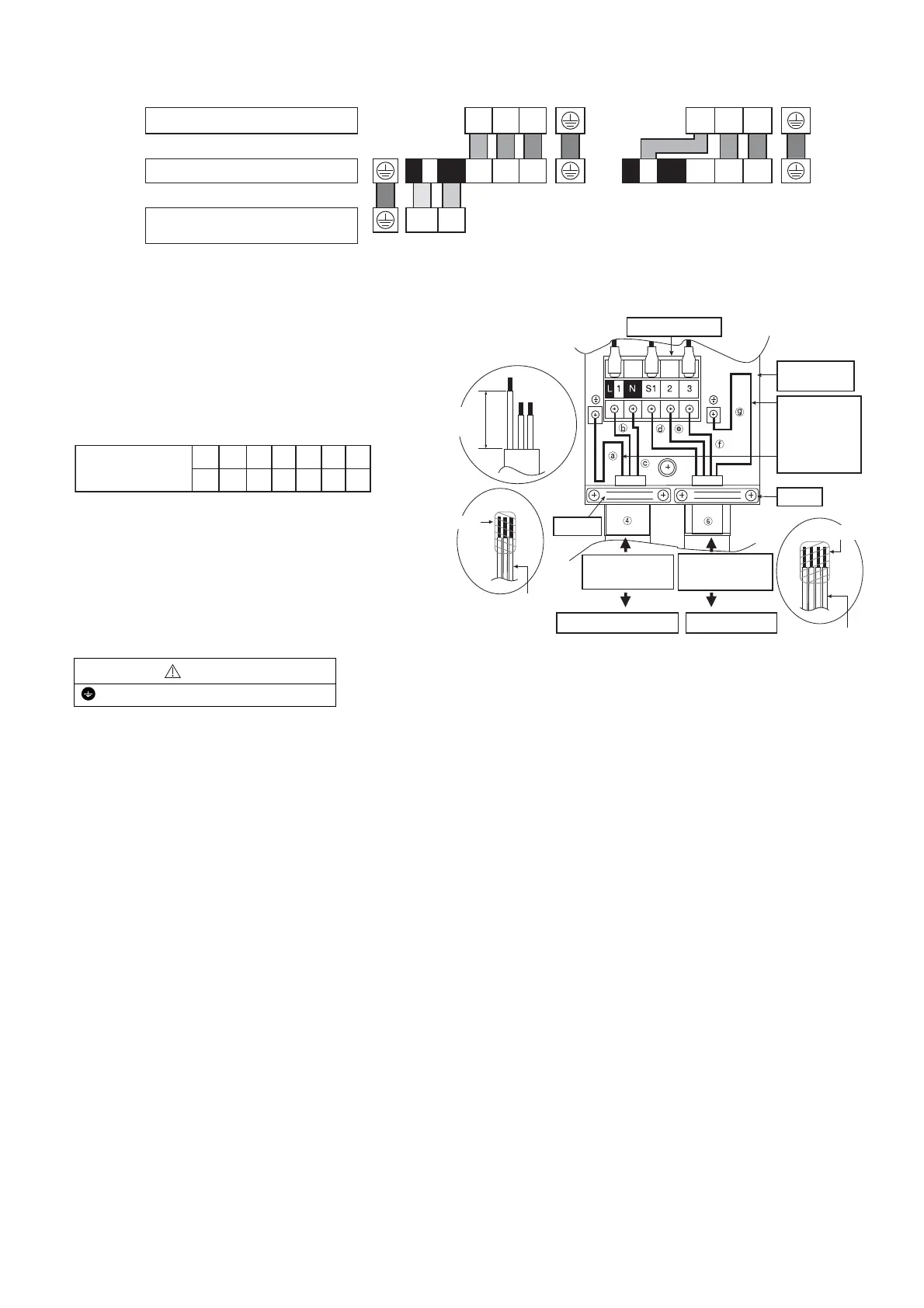

7 Remove the tapes and connect the power supply cord and connection cable between indoor unit and outdoor
unit according to the diagram below.
Terminals on the outdoor unit S1 2 3 123
Colour of wires (connection cable)
Terminals on the indoor unit
L 1
N S1 2 3 OR
L
1
N
S1 2 3
(Power supply cord)
*
Connection for multi inverter
model (Outdoor power
supply)
Terminals on the isolating devices
(Disconnecting means)
(L) (N)
8 Secure the power supply cord and connection cable onto the control board with the holder.
9 Close grille door by tighten with screw and close the front panel.
Connection cable
Power supply cord
Terminal Board
Control Board
Recommended
length (mm)
Earth Wire
longer than
others AC
wires for safety
reason
Holder
Holder
Indoor & outdoor
connection cable
Power supply
cord
Outdoor unit
Isolating Devices
Tape
Tape
Recommended
length (mm)
abcdefg
55 35 35 50 40 35 60
WARNING
This equipment must be properly earthed.
Note:
 Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.
 Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
 Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires as shown in the figure for the
electrical safety in case of the slipping out of the cord from the anchorage.

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
