Panasonic CS-Z25VKEW Installation Instruction

67

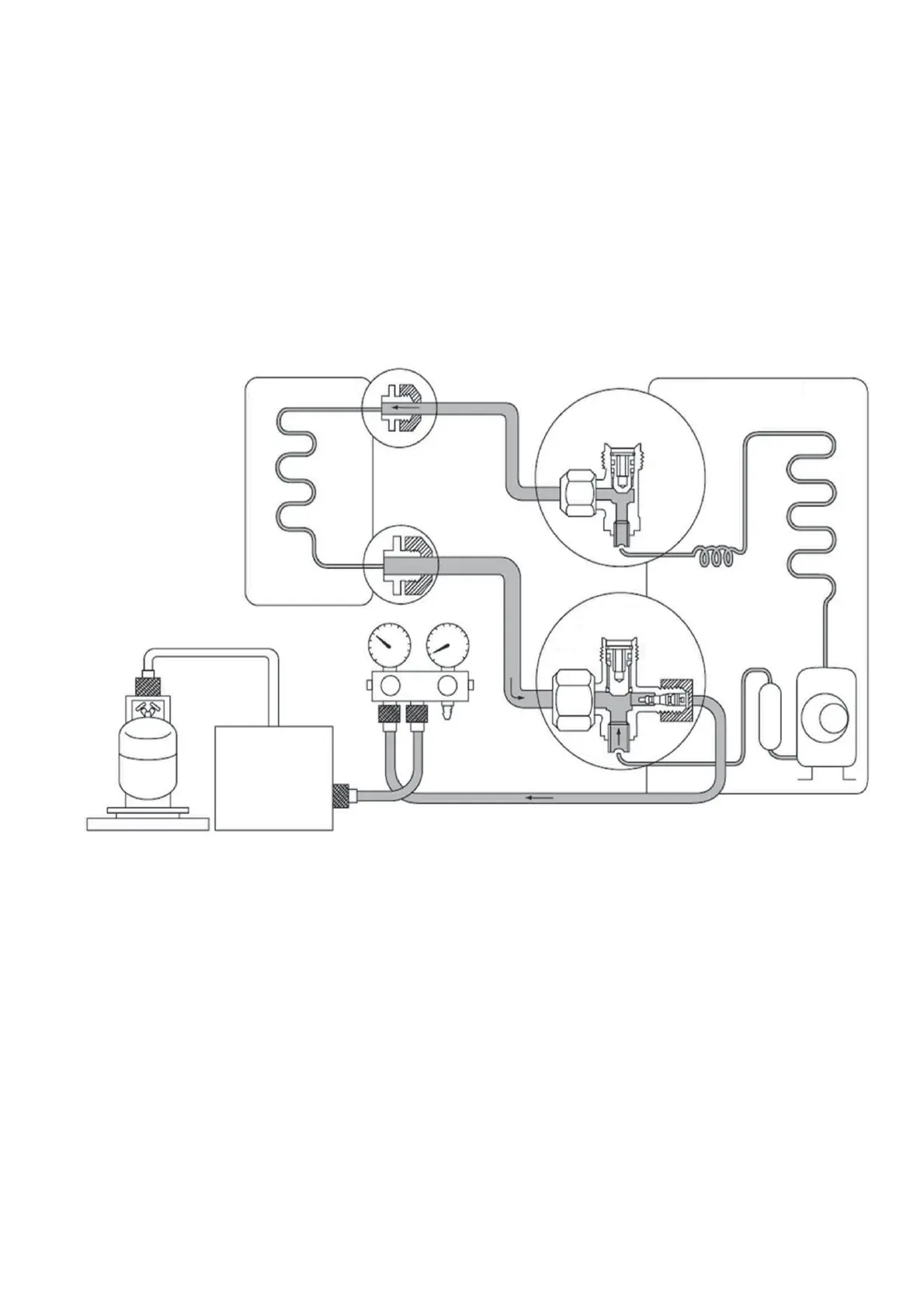

13.6.2 Process of refrigerant recovery
1. Connect the center charging hose of manifold gauge to the in-let side of recovery device.
2. Connect the valves of the discharge side of recovery device and liquid side of refrigerant cylinder with red hose
(charging hose).
3. Connect the yellow float switch cable of the recovery device to the refrigerant cylinder.
4. Open the low pressure side valve of manifold gauge.
5. Slightly loosen the charging hose of in-let connecting side of recovery device and perform air purge.
6. Open the liquid valve of refrigerant cylinder and slightly loosen the charging hose in discharging side of recovery
device, and perform air purge (the recovery cylinder needs slight inside pressure).
7. Insert electric plug of recovery device into electrical outlet (the fan operation starts).
8. Turn the valve 1 and 2 of recovery device to pressure equalization point.
9. After a few seconds, turn back the valve 1 and 2 to the original position.
10. Turn the switch of the recovery device to “ON”. (the compressor operation starts)
11. When the low pressure of manifold gauge is close to “0”, close the low pressure side valve, turn “OFF” the
recovery device switch.
12. Remove the center charging hose of manifold gauge from the recovery device.
(Liquid side)
(Indoor unit) (Outdoor unit)
(Gas side)
Two-way valve
Close
Close
Three-way valve
HiLo
Vacuum
Pump

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
