Panasonic CS-Z25VKEW Installation Instruction

71
2. Cylinder without adjustment valve
2
nd
side gauge pressure is adjusted by the adjuster.
Check the both side valves of the torch and open the cylinder valve to check the remaining refrigerant in the
cylinder.
Caution: Do not attach oil component on the connection port of the adjuster.
Especially, use an oxygen cylinder adjuster which is no oil substance type. Do not dismantle or repair the
adjuster and pressure gauge.

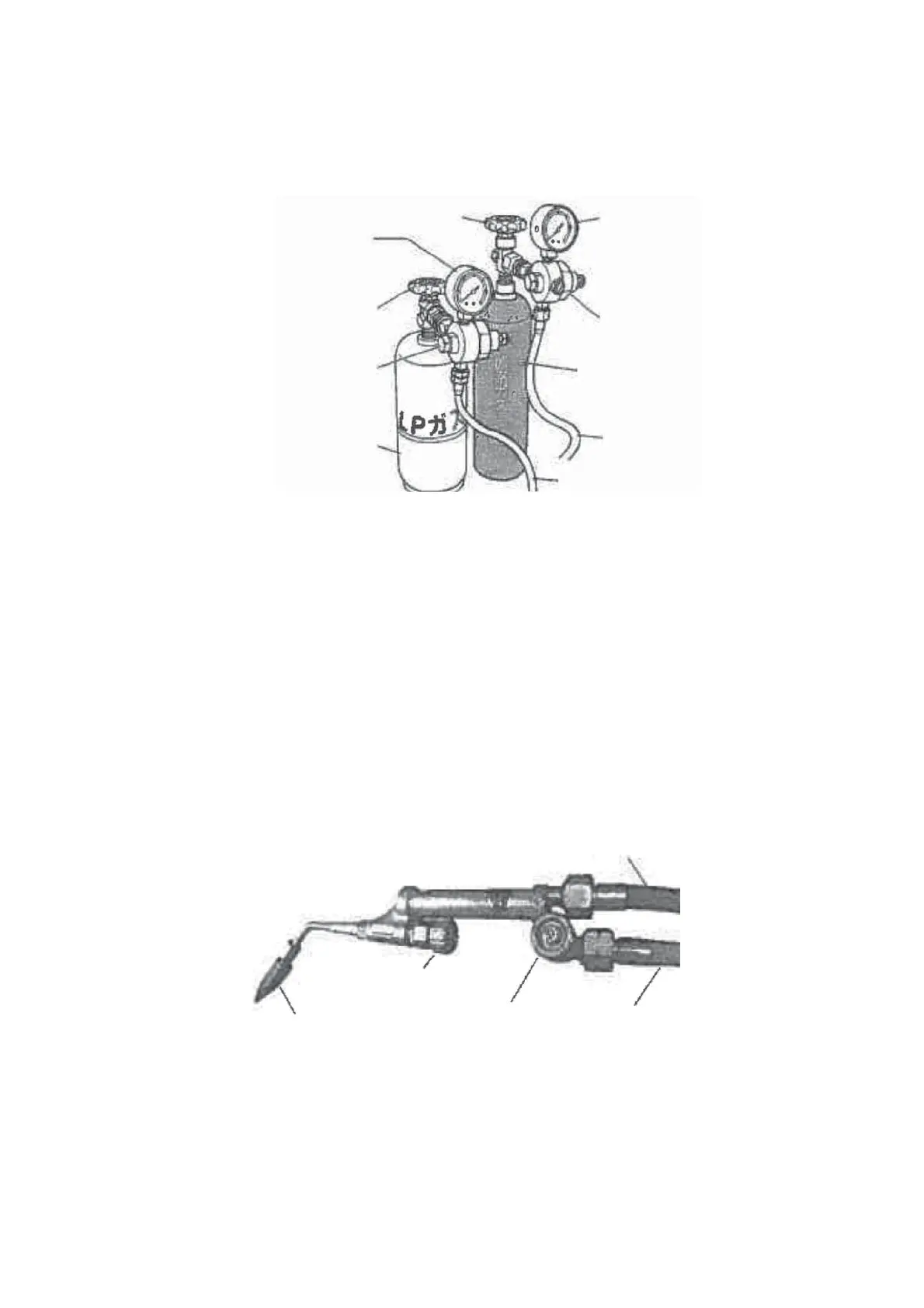

Propane tank
(Gray)
Oxygen tank
(Black)
Black hose
Orange hose
Regulator
Regulator
Main valve
Main valve
Fuel gauge
0~25 MPa
(0~250 kgf / cm²)
Fuel gauge
0~3 MPa
(0~30 kgf / cm²)
13.7.3 Checking of gas provision
Checking there is no fire around the torch, and then confirm the provision of gas.
1. Slightly open the “propane valve” of the torch, and make sure the gas comes out from the torch crater and then
close the “propane valve”.
2. Slightly open the “oxygen valve” of the torch and make sure the gas comes out from the torch crater and then
close the “oxygen valve”.
Check there is no gas leakage around the hose connection.
13.7.4 Adjustment of flame
1. Slightly open the “propane valve” of the torch and lit with spark lighter.
This moment, the flame is only by propane and the color is red.
2. Gradually open the “oxygen valve” of the torch to mix oxygen, and adjust the amount of propane and oxygen with
the valve to make the flame suitable for brazing work.
If the white core flame splits into two, the torch crater might be clogged. In this case, remove the crater from the
torch and check.
Oxygen (Black hose)
Propane (Orange hose)
Propane valve
Oxygen valve
Nozzle

Panasonic CS-Z25VKEW Specifications

General

AC input voltage	230 V
Design load (cooling)	2.5 kW
Annual energy consumption (cooling)	103 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.7 kW
Energy efficiency class (heating) (Colder heating season)	-
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (heating) (Average heating season)	741 kWh
Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Dehumidifying capacity	1.5 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	850 W
Heating capacity in watts (max)	5000 W
Heating capacity in watts (min)	800 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	4.81
Heating energy efficiency (COP, W/W)	4.79
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP)	5.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Indoor unit type	Wall-mountable
Indoor unit depth	194 mm
Indoor unit width	919 mm
Indoor unit height	295 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	612 m³/h
Heating airflow (indoor unit)	672 m³/h
Indoor unit sound power level	55 dB
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	Yes
Outdoor unit noise level	- dB
