GTWIN Operations
2-4

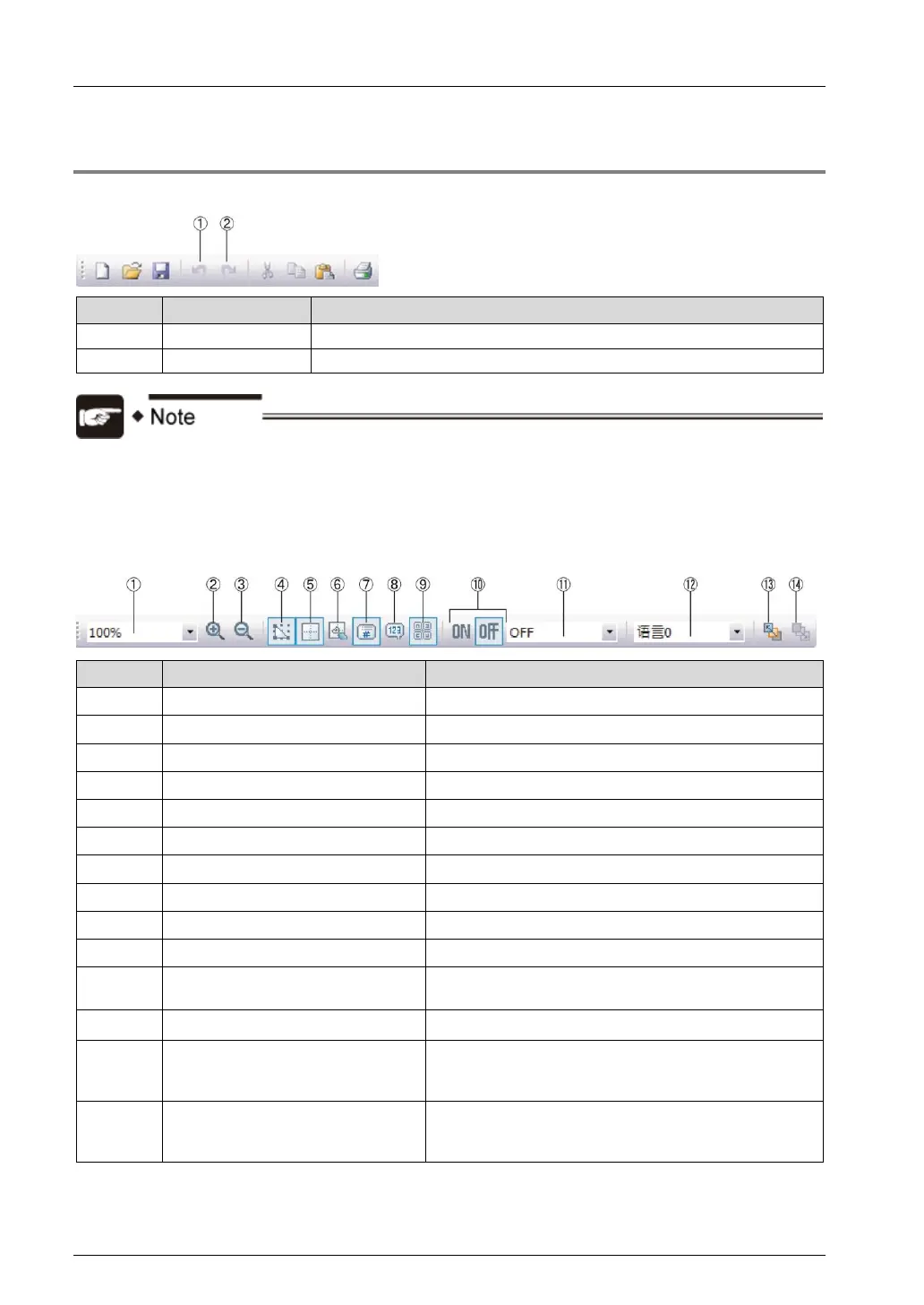

2.1.3 Toolbar
 Standard toolbar
Number
Name
Function
①
[Undo] icon
Undo the previous operation.
②
[Redo] icon
Redo the operation that you undid with the [Undo] icon.
 The [Undo] icon only applies to drawing and editing operations such as
those applied to character strings, graphics, and parts and to some editor
operations that can be performed from the menu bar. You cannot undo
other operations.
 Display toolbar
Number
Name
Function
①
[Enlargement/Reduction Rate] list
Display the screen at the specified magnification.
②
[Enlarge] icon
Enlarge the display of the screen.
③
[Reduce] icon
Reduce the display of the screen.
④
[Display/Hide Grid] icon
Switch between displaying and hiding the grid.
⑤
[Display/Hide Guideline] icon
Switch between displaying and hiding the guideline.
⑥
[Set Grid/Guideline] icon
Open the grid/guideline setting screen.
⑦
[Display/Hide Part Numbers] icon
Switch between displaying and hiding part numbers.
⑧
[Display/Hide Part Attributes] icon
Switch between displaying and hiding part attributes.
⑨
[Display/Hide Keyboard Parts] icon
Switch between displaying and hiding keyboard parts.
⑩
[Change On/Off of parts] icons
Switch the status of the selected part between ON and OFF.
⑪
[Parts Status] list box
Switch the status of the selected lamp switch part between
ON and OFF and the number of message parts.
⑫
[Select Language Number] list box
Switch the language number of the selected base screen.
⑬
[Previous Screen] icon
Open the screen whose number is immediately before the
number of the screen being edited. If this screen is already
open, it will be set as the active screen.
⑭
[Next Screen] icon
Open the screen whose number is immediately after the
number of the screen being edited. If this screen is already
open, it will be set as the active screen.
