Panasonic JU-253-T

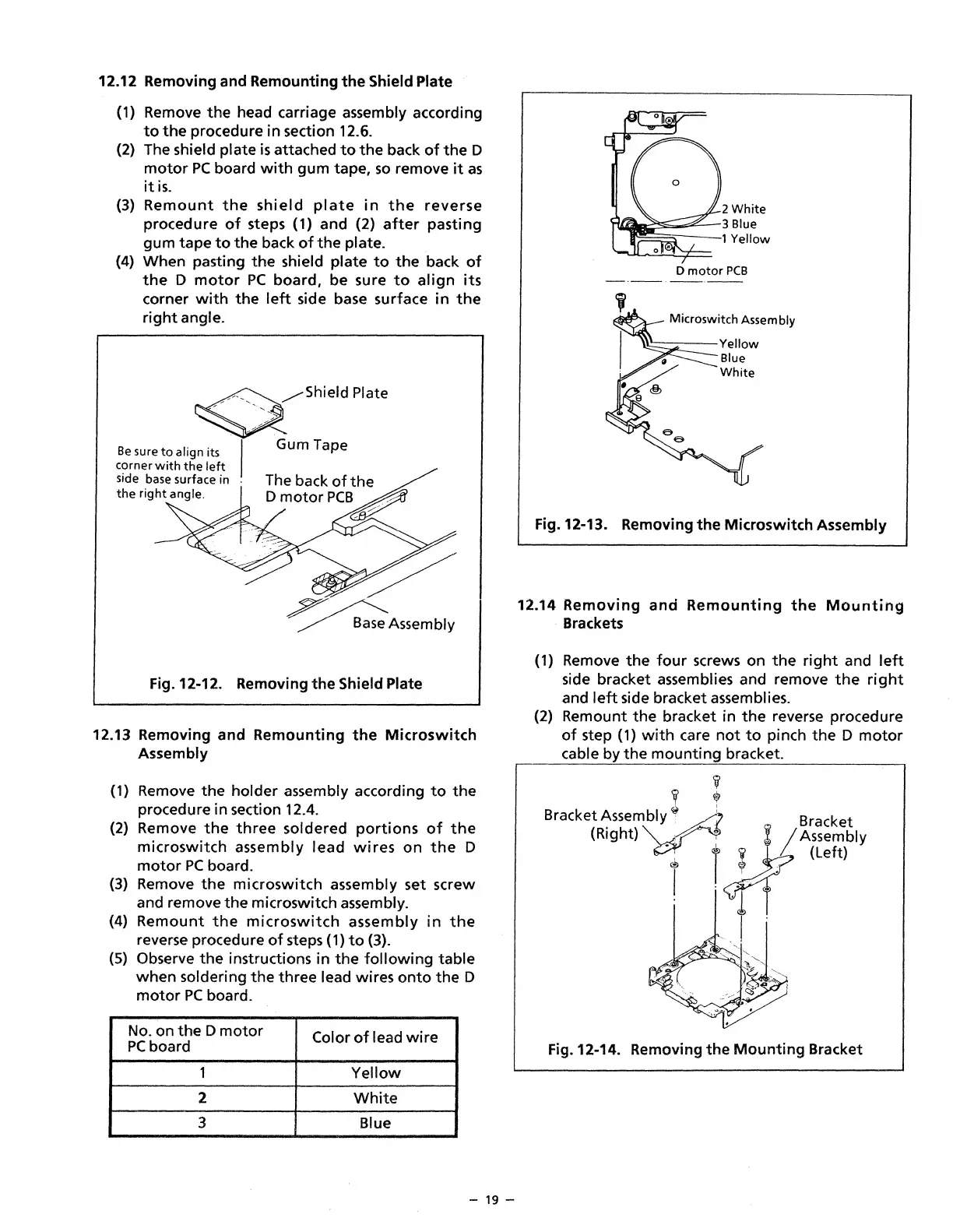

12.12 Removing and Remounting the Shield Plate
(1) Remove the head carriage assembly according
to the procedure in section 12.6.
(2) The shield plate is attached to the back of the D
motor PC board with gum tape, so remove it as
it is.
(3) Remount the shield plate in the reverse
procedure of steps (1) and (2) after pasting
gum tape to the back of the plate.
(4) When pasting the shield plate to the back of
the D motor PC board, be sure to align its
corner with the left side base surface in the
right angle.
~Shield Plate
Be sure to align its I Gum Tape
corner with the left
side base surface in The back of the
the right angle. D motor PCB~
Fig. 12-12. Removing the Shield Plate
12.13 Removing and Remounting the Microswitch
Assembly
(1) Remove the holder assembly according to the
procedure in section 12.4.
(2) Remove the three soldered portions of the
microswitch assembly lead wires on the D
motor PC board.
(3) Remove the microswitch assembly set screw
and remove the microswitch assembly.
(4) Remount the microswitch assembly in the
reverse procedure of steps (1) to (3).
(5) Observe the instructions in the following table
when soldering the three lead wires onto the D
motor PC board.
No. on the D motor
Color of lead wire
PC board
1 Yellow
2
White
3 Blue
- 19 -
2White
~ ....... =---3 Blue
=~--1Yellow
D motor PCB
Microswitch Assembly
Fig. 12-13. Removing the Microswitch Assembly
12.14 Removing and Remounting the Mounting
Brackets
(1) Remove the four screws on the right and left
side bracket assemblies and remove the right
and left side bracket assemblies.
(2) Remount the bracket in the reverse procedure
of step (1) with care not to pinch the D motor
cable by the mounting bracket.
V'
~ "'
'If '
Bracket Assem~ly : ~ Bracket
(Right) ~ ~/Assembly
.® i ~ . /-'- (Left)
I . .
. I .
. . , , I
·-~
Fig. 12-14. Removing the Mounting Bracket
