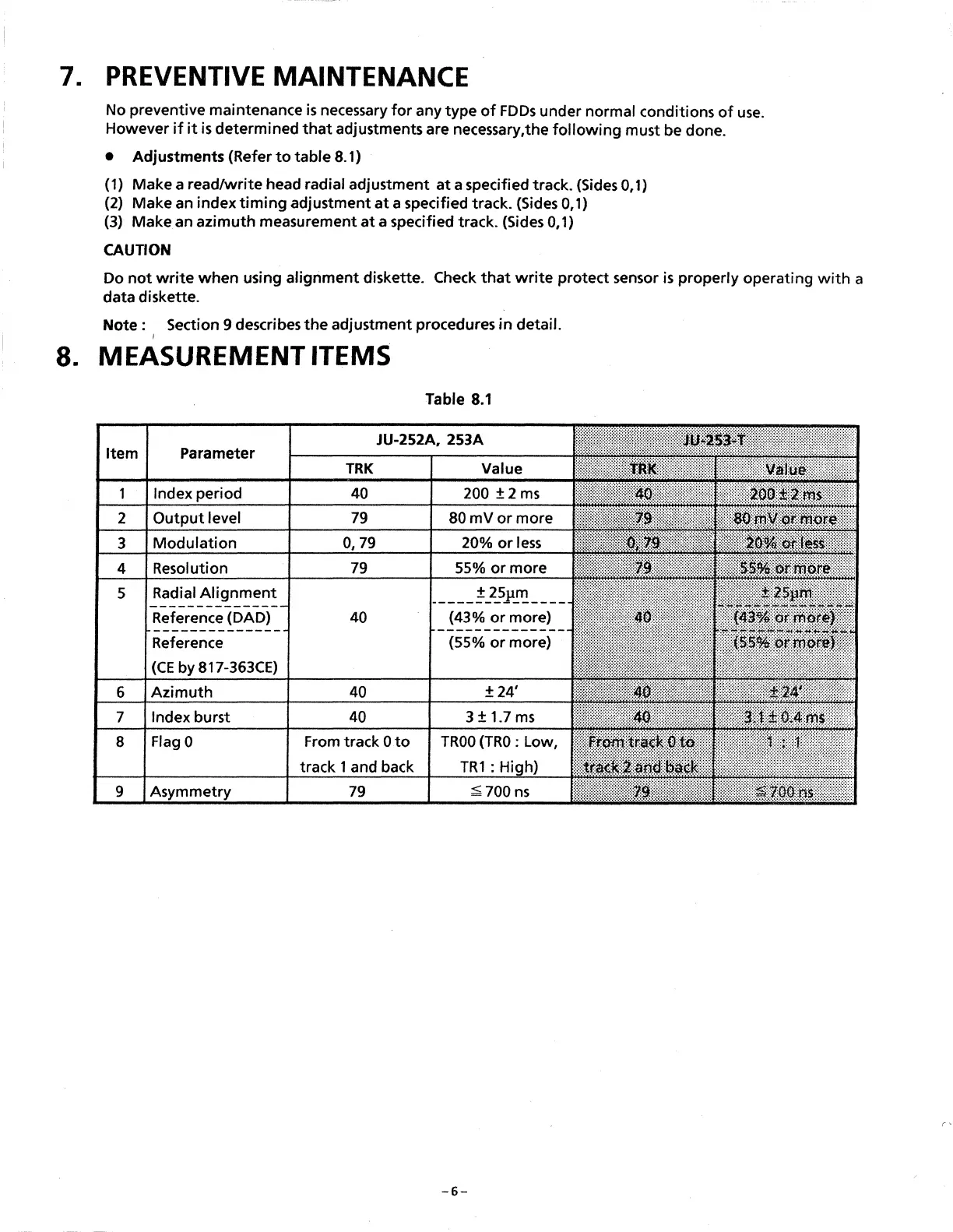

7. PREVENTIVE MAINTENANCE
No preventive maintenance
is
necessary
for
any
type
of
FDDs
under
normal conditions
of
use.
However
if it
is
determined
that
adjustments are necessary,the
following
must be done.
•
Adjustments
(Refer
to
table
8.
1)
(1)
Make
a
read/wtite
head radial
adjustment
at
a specified track. (Sides
0,
1)
(2)
Make
an
index
timing
adjustment
at
a specified track. (Sides
0,
1)
(3)
Make
an
azimuth
measurement
at
a specified track. (Sides
0,
1)
CAUTION
Do
not
write
when
using
alignment
diskette. Check
that
write
protect
sensor
is
properly
operating
with
a
data
diskette.
Note:
Section 9 describes
the
adjustment
procedures
in
detail.
8. MEASUREMENT ITEMS
Item
Parameter
1 Index
period
2
Output
level
3
Modulation
4 Resolution
5
Radial
Alignment
--------------
Reference (DAD)
--------------
Reference
(CE
by
817-363CE)
6
Azimuth
7
Index burst
8
Flag 0
9
Asymmetry
Table 8.1
JU-252A, 253A
TRK
Value
40 200 ± 2
ms
79
80mVormo~
0,
79 20%
or
less
79 55%
or
more
40
40
40
From track
Oto
track 1 and back
79
-----~
_2_5jl_fl2
__
--
(43%
or
more)
--------------
(55%
or
more)
± 24'
3±1.7ms
TROO
(TRO: Low,
TR1
: High)
~
700
ns
-6-
