Panasonic JU-253-T

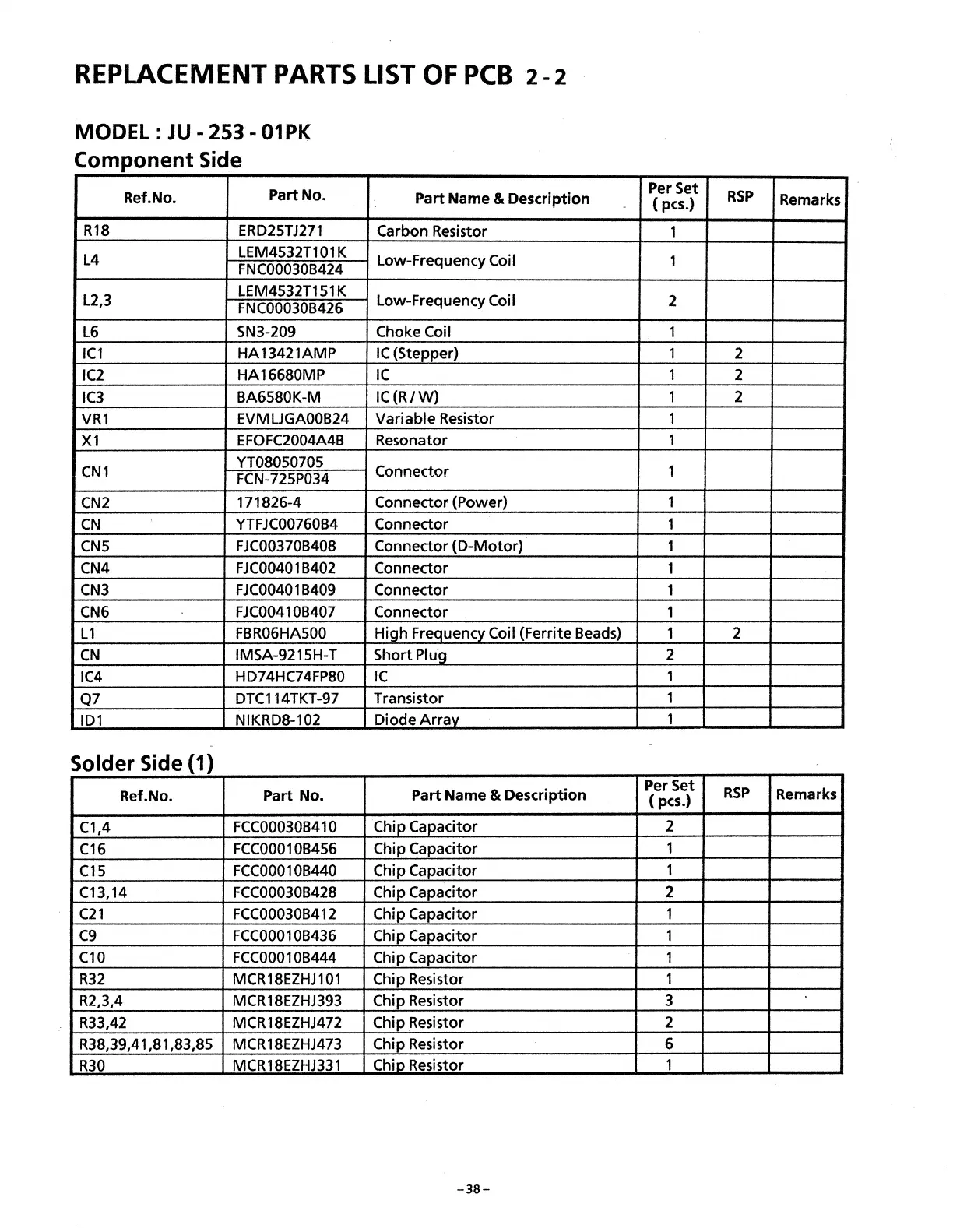

REPLACEMENT PARTS LIST OF PCB 2-2
MODEL : JU - 253 - 01 PK
Component Side
Ref.No.
Part No.
Part Name & Description
Per Set
RSP
Remarks
- ( pcs.)
R18 ERD25TJ271
Carbon Resistor
1
L4
LEM4532T101 K
Low-Frequency Coil
1
FNC00030B424
L2,3
LEM4532T151 K
Low-Frequency Coil
2
FNC00030B426
LG
SN3-209 Choke Coil
1
IC1
HA13421AMP IC (Stepper)
1 2
IC2
HA16680MP IC 1 2
IC3
BA6580K-M
IC{R/W) 1 2
VR1
EVMUGAOOB24
Variable Resistor 1
X1
EFOFC2004A4B Resonator
1
CN1
YT08050705
Connector
1
FCN- 725P034
CN2
171826-4 Connector (Power) 1
CN YTF JC00760B4
Connector 1
CNS
F JC00370B408 Connector {D-Motor)
1
CN4
FJC00401B402
Connector 1
CN3 FJC00401B409 Connector 1
CN6
F JC004108407 Connector
1
L1
FBR06HA500
H!_g_h Frequency Coil {Ferrite Beads) 1 2
CN
IMSA-9215H-T Short Plug 2
IC4
HD74HC74FP80
IC
1
Q7
DTC114TKT-97
Transistor
1
101
NIKRD8-102
Diode Arrcrt_
1
Solder Side (1)
Ref.No.
Part No.
Part Name & Description
Per Set
RSP
Remarks
( pcs.)
C1,4
FCC00030B410 Chip_ Capacitor
2
C16
FCC00010B456 Ch~ Capacitor
1
C15
FCC00010B440
Ch~ Ca_e_acitor
1
C13,14 FCC00030B428
Ch~ Capacitor
2
C21 FCC00030B412 Chip Capacitor 1
C9 FCC00010B436 Chip Capacitor 1
C10 FCC00010B444
Chip Ca_e_acitor
1
R32
MCR18EZHJ101
Ch~ Resistor
1
R2,3,4 MCR18EZHJ393 Chip Resistor 3
R33,42 MCR18EZHJ472 Ch~Resistor
2
R38,39,41,81,83,85 MCR18EZHJ473 Chii:>_ Resistor 6
R30
MCR 18EZHJ331
Chi.Q_Resistor 1
-38-
