KW8M Eco-POWER METER
19

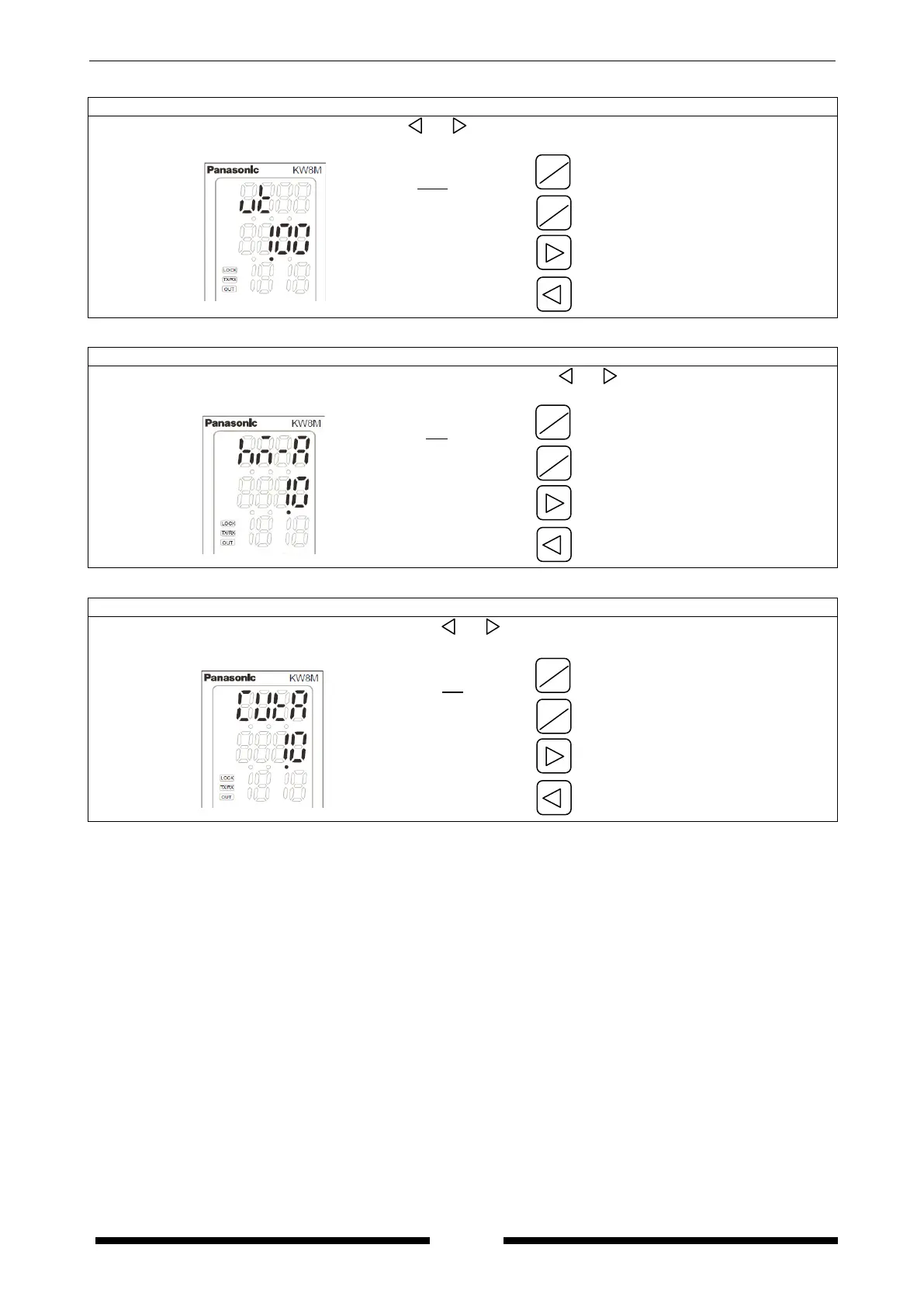

VT ratio setting mode
Set VT ratio using <ITEM/△>, <SHIFT/▽>, < >, < >.
If the VT is 440/110, set to “4.00”.
(1.00 to 99.99)
Increase value
Decrease value
Shift place to set
Shift place to set
↓ <SET>
Current for time measurement setting mode
Set current for time measurement using <ITEM/△>, <SHIFT/▽>, < >, < >.
If you measure the current over 50.0%F.S, set to “50.0”.
(1.0 to 100.0)
Increase value
Decrease value
Shift place to set
Shift place to set
↓ <SET>
Cutoff current setting mode
Set cutoff current using <ITEM/△>, <SHIFT/▽>, < >, < >.
If you don’t measure the current under 10.0%F.S, set to “10.0”.
(1.0 to 50.0)
Increase value
Decrease value
Shift place to set
Shift place to set
↓ <SET>
ITEM
△
SHIFT
▽
ITEM
△
SHIFT
▽
ITEM
△
SHIFT
▽
