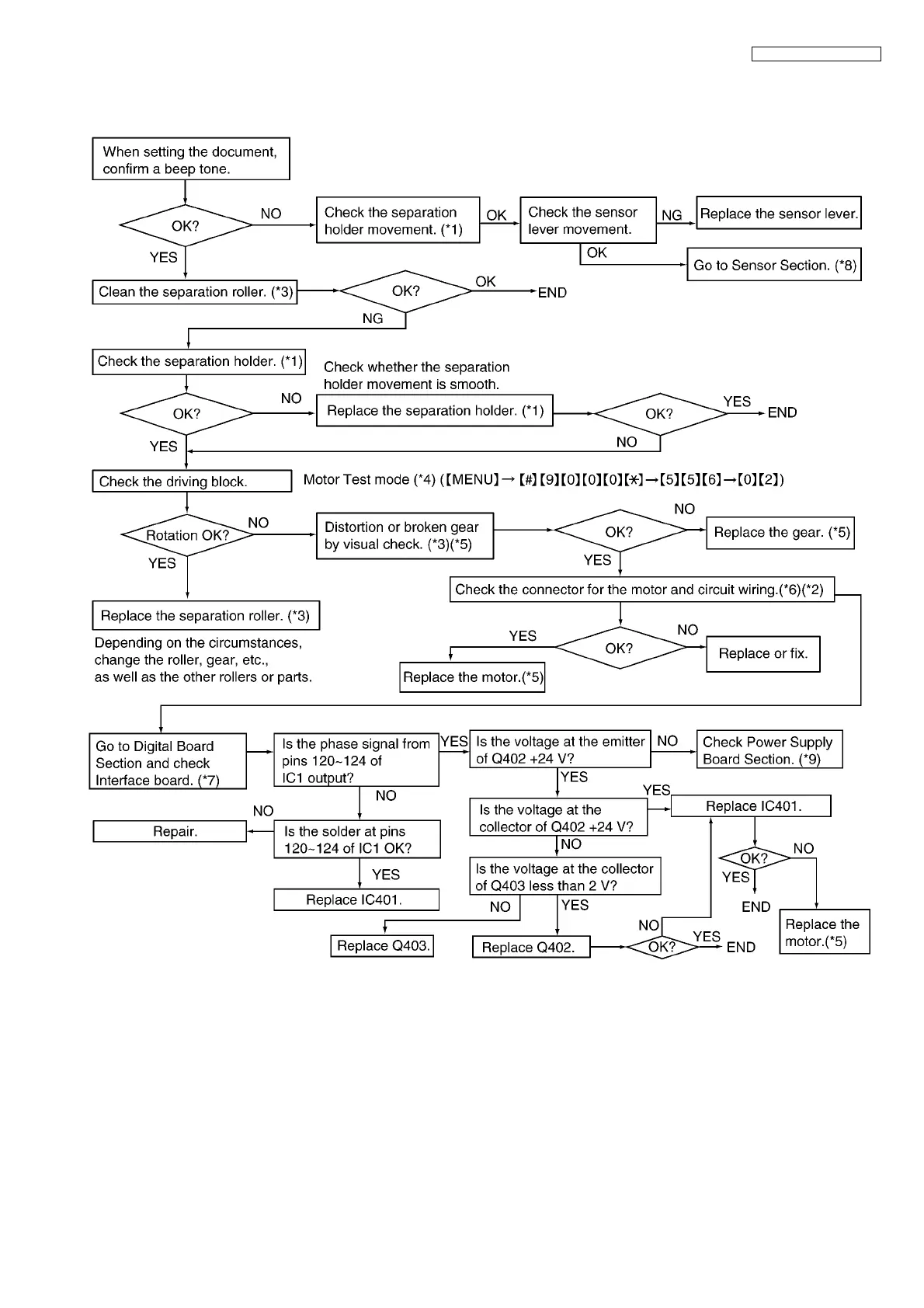

12.5.4. ADF (Auto Document Feed) Section
12.5.4.1. No Document Feed
REFERENCE:
(*1): How to Remove the Separation Rubber (P.153)
(*2): Installation Position of the Lead Wires (P.154)
(*3): How to Remove the Gear Block and Separation Roller (P.149)
(*4): Test Mode (P.63)
(*5): How to Remove the Component parts of Gear Block (P.150)
(*6): Stepping Motor Drive Circuit (RX) (P.29)
(*7): Digital Board Section (P.118)
(*8): Sensor Section (P.133)
(*9): Power Supply Board Section (P.129)
To Next Page
