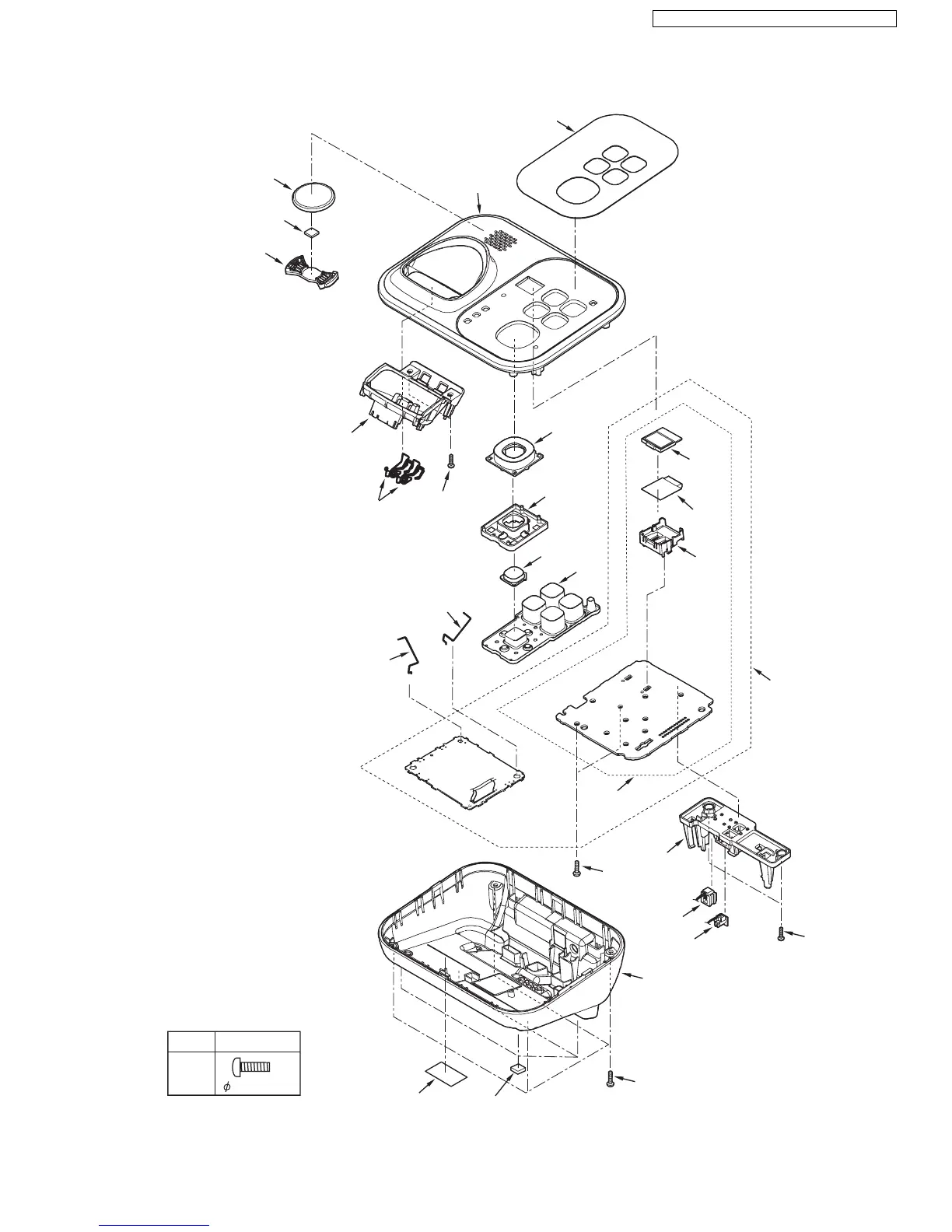

16 Exploded View and Replacement Parts List
16.1. Cabinet and Electrical Parts (Base Unit)
Note:
(*1) This cable is fixed by welding. Refer to How to Replace the Base Unit LCD (P.48)
E2
17
18
15
14
PCB1
PCB2
9
12
E1 (*1)
E3
8
10
11
4
5
2
3
6
A
13
A
A
A
16
1
7
12
Ref.No. Figure
A
2.6 x 8mm
22
