1. Introduction

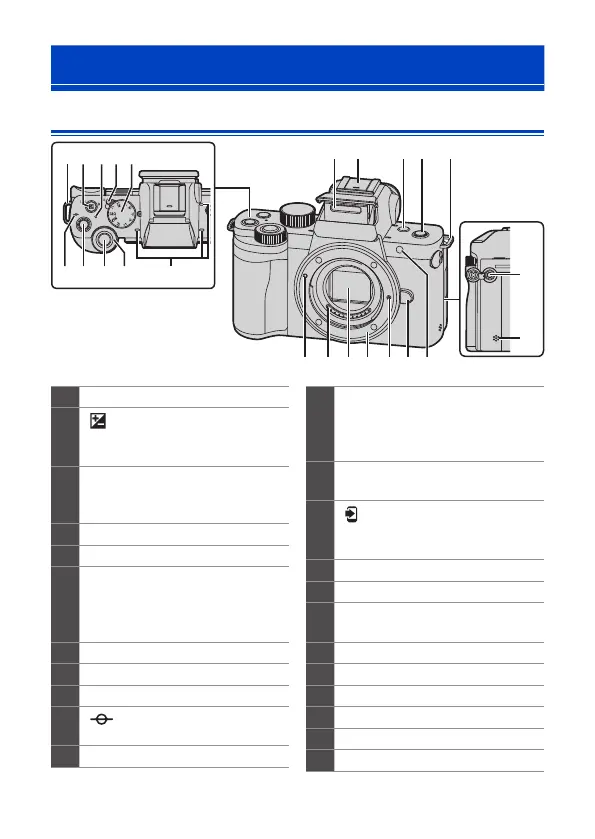

Names of Parts
Camera
1
Shoulder strap eyelet (30)
2
[ ] (Exposure compensation)
button (210)/
Fn button (Fn1) (294)
3
Charging lamp (34)/
WIRELESS connection lamp
(356, 373)
4
Camera on/off switch (47)
5
Mode dial (54)
6
Stereo microphone (265)
• Do not block the microphone
with a finger. Audio will be
difficult to record.
7
Front dial (55)
8
Shutter button (52)
9
Video rec. button (53, 240)
10
[ ] (Recording distance
reference mark) (152)
11
Flash (50, 228)
12
Hot shoe (hot shoe cover) (449)
• Keep the hot shoe cover out
of reach of children to prevent
swallowing.
13
[LVF] button (58)
Fn button (Fn3) (294)
14
[ ] ([Send Image (Smartphone)])
button (408)/
Fn button (Fn4) (294)
15
[MIC] socket (450)
16
Speaker (356)
17
Self-timer light (186)/
AF assist light (335)
18
Lens release button (42)
19
Lens lock pin
20
Mount
21
Sensor
22
Contact points
23
Lens fitting mark (41)
15
16
6
1
89
23 22 2120 1918 17
10 7
2 4 5
11 12 13 14 1
3
