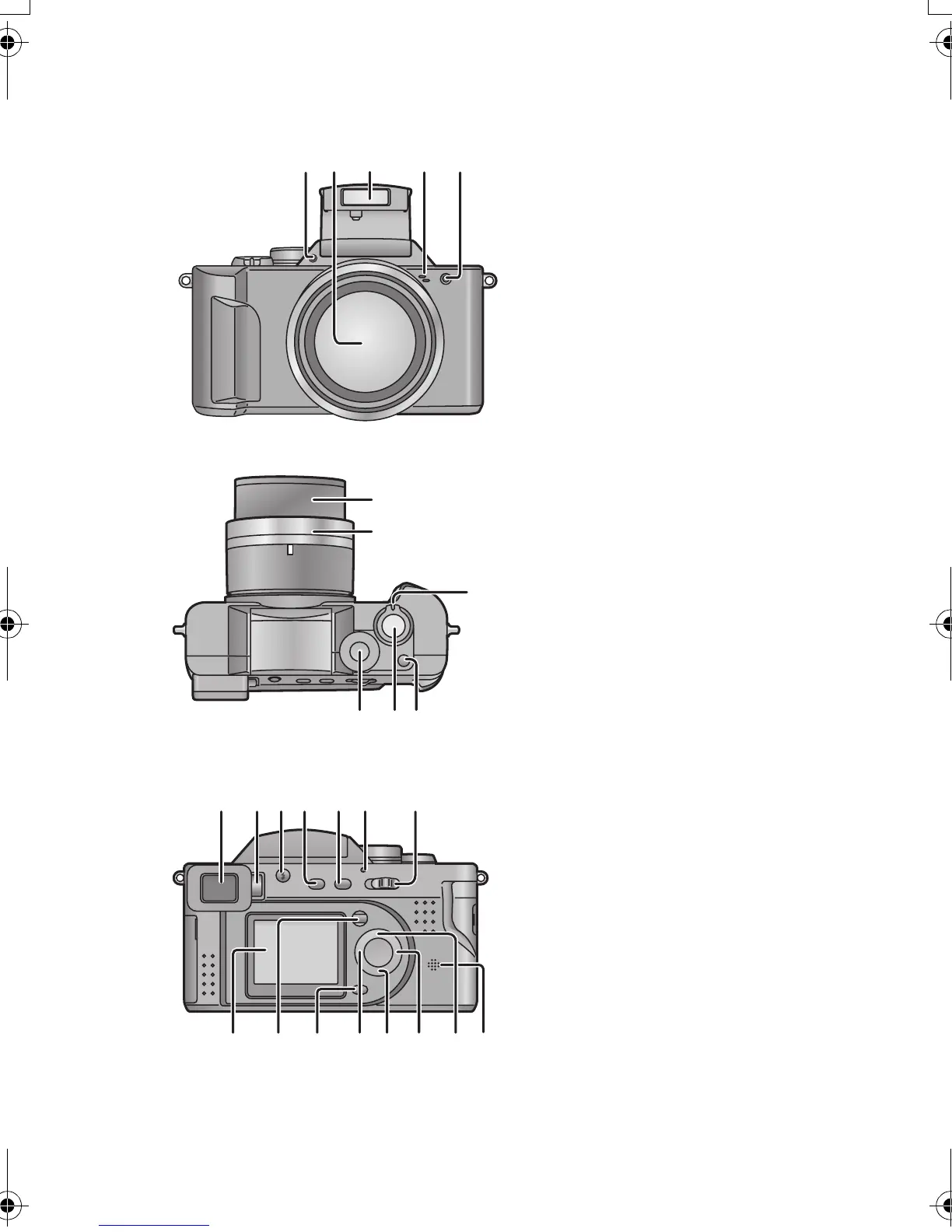

Names of the Components
[Front View]
1 Flash Sensor (P37)
2 Lens
3Flash
4 Microphone (P33, P42, P77)
5 Self-timer Indicator (P41)
[Top View]
6 Lens Barrel
7 Lens Ring (P19, P63)
8 Mode Dial (P25)
9 Shutter Button (P24)
10 Single/Burst Mode Button
(P62)
11 Zoom Lever (P34, P35)
[Back View]
12 Viewfinder (P18, P23)
13 Diopter Adjustment Dial (P18)
14 Flash Open Button (P36)
15 DISPLAY Button (P23)
16 FOCUS Button (P39)
17 Power Indicator (P17)
18 Power Switch (P17)
19 LCD Monitor (P8)
20 MENU Button (P27)
21 Delete Button (P32, P69)
22 2/Self-timer Button (P41)
23 4/REVIEW/SET Button (P32)
24 1/Flash Mode Button (P36)
25 3/Exposure Compensation
(P53)/Auto Bracket (P54)/
White Balance Fine
Adjustment (P60) Button
26 Speaker (P65)
2 3 41 5
9810
11
7
6
15
20
18
19 21 22 24 25 26
23
17
16121314
