Recording images (advanced)
63
Using the MC Protector/ND Filter
The MC protector (DMW-LMC55; optional)
neither affects the colors nor the amount of
light, so it can always be left attached to
protect the Digital Camera’s lens.
The ND filter (DMW-LND55; optional)
reduces the amount of light to approximately
1/8th without affecting the color balance.
[Preparation]
• Check that the power switch is set to [OFF]
and the lens barrel is retracted.
• Close the flash. (P37)

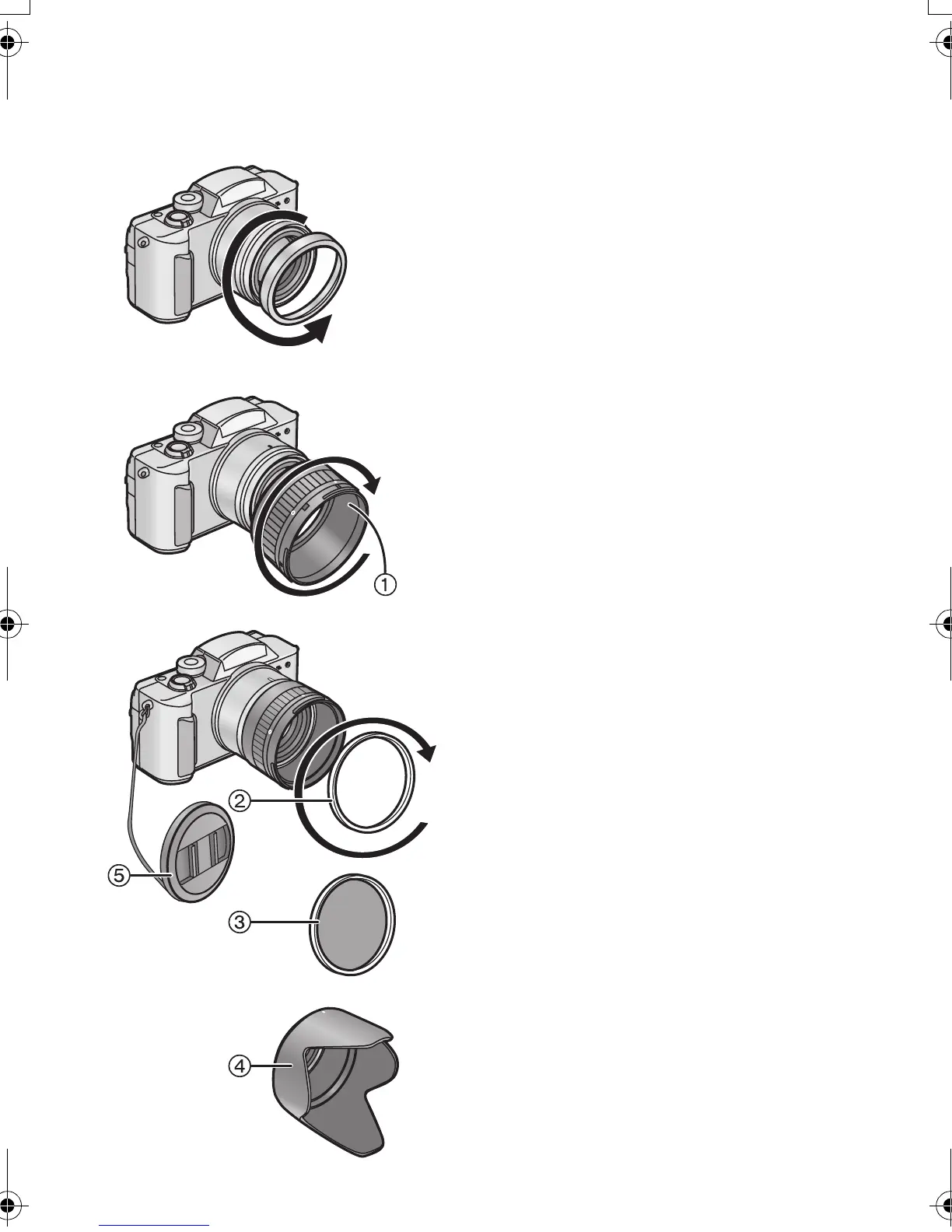

1 Remove the lens ring.
2 Attach the lens hood adaptor 1.
3 Install the MC protector 2 or the ND
filter 3.
• The lens hood 4 and lens cap 5 can be
attached when installing the MC protector or
ND filter.
• When taking pictures with the flash using
the MC protector/ND filter, vignetting effect
may occur.
• Do not use the conversion lens.
If it is used with the supplied lens hood
adaptor, it may break.
• MCu“Multi-coated” and NDu“Neutral
Density”
3
2
1
FZ2-PP.book 63 ページ ２００３年９月２６日 金曜日 午後１２時１分
