Panasonic Lumix DMC-GX1 User Manual

- 191 -
Connecting to other equipment
∫ Viewing the contents of the card using the PC (folder composition)
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET] (P73) in the [SETUP] menu has been executed
• When a card containing a folder with the same folder number has been inserted (Such as when
pictures were taken using another make of camera)
• When there is a picture with file number 999 inside the folder
∫ Disconnecting the USB connection cable safely
Select the [ ] icon in task tray displayed on the PC, and then click [Eject
DMC-XXX] (XXX varies by model).
•
Depending on your PC’s settings, this icon may not be displayed.
• If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of the
digital camera before removing the hardware.
∫ Connection in the PTP Mode (Windows
R
XP, Windows Vista
R
, Windows
R
7 and
Mac OS X only)
Set [USB MODE] to [PictBridge(PTP)].
•
Data can now be read only from the card into the PC.
• When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP
mode.
• Motion picture cannot be played back in PTP Mode.
For Windows: A drive ([Removable Disk]) is displayed in [Computer]
For Mac: A drive ([LUMIX], [NO_NAME] or [Untitled]) is displayed on the
desktop

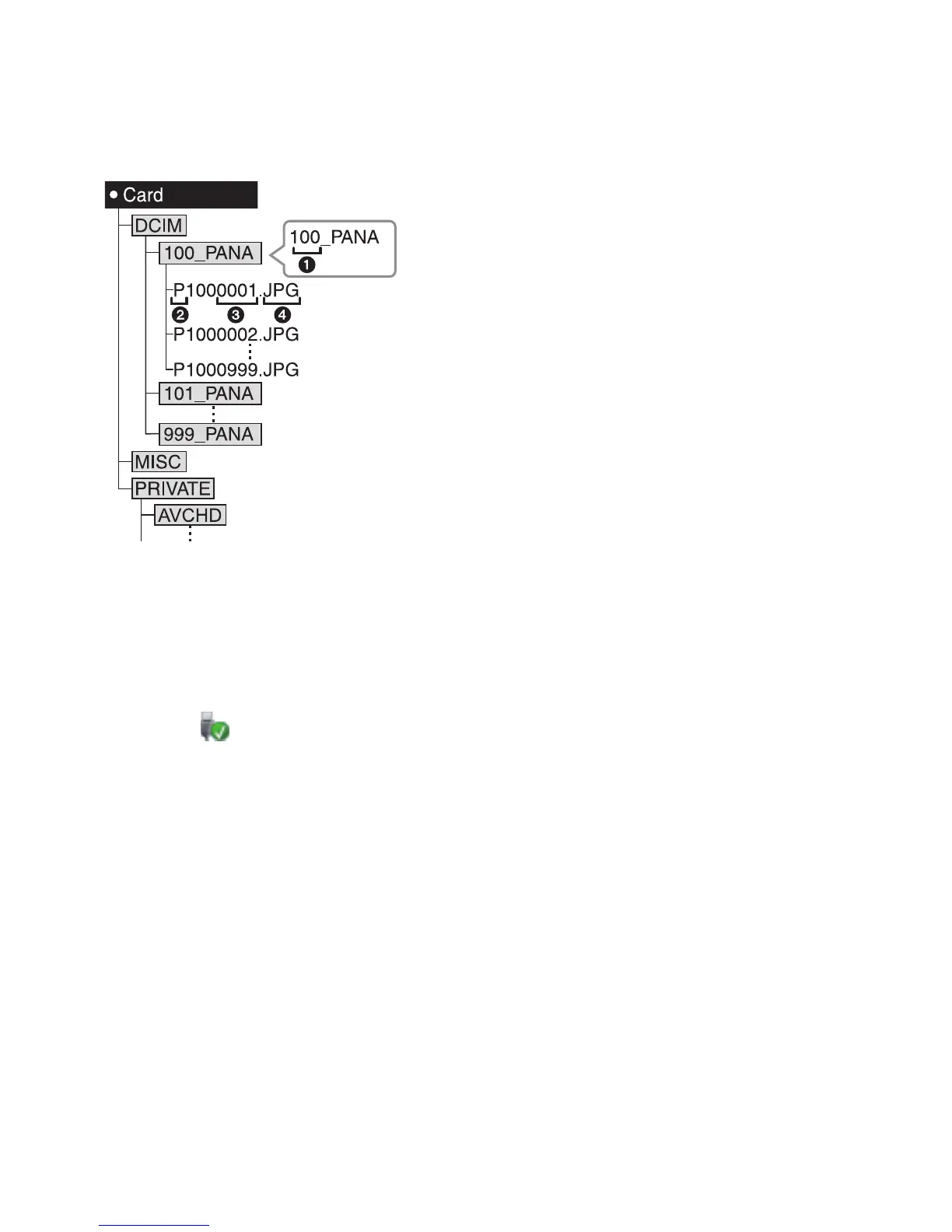

DCIM: Images
1 Folder number
2 Color space P: sRGB
_: AdobeRGB
3 File number
4 JPG: Still pictures
MP4: [MP4] Motion pictures
RW2: Pictures in RAW files
MPO: 3D pictures
MISC: DPOF print
Favorite
AVCHD: [AVCHD] Motion pictures

Panasonic Lumix DMC-GX1 Specifications

General

Megapixel	16 MP
Camera type	MILC
Sensor type	Live MOS
Image stabilizer	Yes
Total megapixels	16.68 MP
Image sensor size	- \
Image formats supported	EXIF, JPG, MPO, RAW
Supported aspect ratios	1:1, 3:2, 4:3, 16:9
Maximum image resolution	4592 x 3448 pixels
Image sensor size (W x H)	17.3 x 13 mm
Image stabilizer location	Lens
Still image resolution(s)	3232x2424, 2272x1704, 1824x1368, 4576x3056, 3232x2160, 2272x1520, 1824x1216, 4576x2576, 3232x1824, 1920x1080, 1824x1024, 3424x3423, 2416x2416, 1712x1712
Filter size	52 mm
Digital zoom	4 x
Optical zoom	- x
Focal length range	14 - 42 mm
Lens mount interface	Micro Four Thirds (MFT)
Maximum aperture number	5.6
Minimum aperture number	3.5
Number of diaphragm blades	7
Number of aspheric elements	1
Lens structure (elements/groups)	12/9
Maximum focal length (35mm film equiv)	84 mm
Minimum focal length (35mm film equiv)	28 mm
Focus adjustment	Auto/Manual
Auto Focus (AF) points	23
Auto focusing (AF) modes	Continuous Auto Focus, Flexible Spot Auto Focus, Single Auto Focus, Tracking Auto Focus
Closest focusing distance	0.2 m
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	160, 200, 400, 800, 1600, 3200, 6400, 12800, Auto
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	12800
ISO sensitivity (min)	160
Light exposure control	Program AE
Light exposure correction	± 5EV (1/3EV step)
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	60 s
Flash modes	Auto, Forced off, Forced on, Red-eye reduction, Slow synchronization
Flash sync-speed	1/160 s
Shoe mounting point type	Hot shoe
Flash exposure correction	±2EV (1/3 EV step)
Power source type	Battery
Maximum magnification	0.34 x
Video resolutions	640 x 480, 720 x 576, 1280 x 720, 1920 x 1080 pixels
Video formats supported	AVCHD, MP4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Audio system	Mono
Audio formats supported	AAC, LPCM
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	3 \
Display resolution (numeric)	460000 pixels
Magnification	0.17 x
USB version	2.0
HDMI connector type	Mini
Product color	Black, Silver
Scene modes	Children, Night portrait, Party (indoor), Portrait, Sports, Sunset
Image editing	Crop, Resizing, Rotating
Photo effects	Sepia
White balance	Auto, Cloudy, Daylight, Flash, Incandescent, Shade
Shooting modes	Movie, Scene
Camera playback	Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 10 s
Camera file system	DCF, Exif 2.3
Battery type	H-PS14042
Battery voltage	7.2 V
Battery capacity	1010 mAh
Battery life (CIPA standard)	310 shots
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Cables included	USB
Bundled software	PHOTOfunSTUDIO 7.0 HD Edition\\r SILKYPIX Developer Studio 3.1 SE\\r LoiLoScope

Weight and Dimensions

Depth	39.4 mm
Width	116.3 mm
Height	67.8 mm
Weight	318 g
Lens length	63.6 mm
Lens diameter	60.6 mm
Weight (including battery)	413 g
