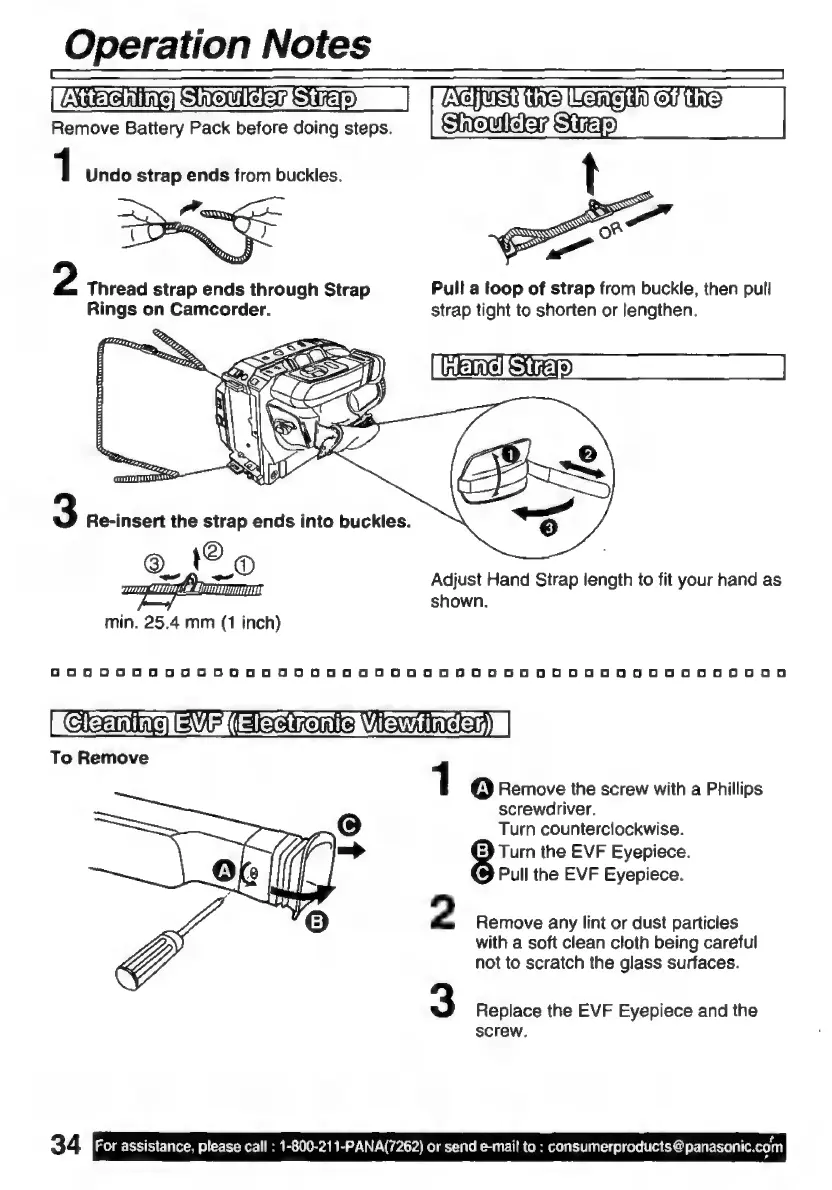

Operation Notes
(edi Cheuk Sa] [ARES Lag ate
Remove Battery Pack before doing steps. Souler Sia
1 Undo strap ends from buckles.
2 Thread strap ends through Strap Pull a toop of strap from buckle, then pull
Rings on Camcorder. strap tight to shorten or lengthen.
tend Say o
Adjust Hand Strap length to fit your hand as
shown.
min. 25.4 mm (1 inch)
caoaqrBodaocaco2nodo00000000292o0BR0285o0D0DO0oDD0o0Do0coapgonaoO
1 G Remove the screw with a Phillips
screwdriver.
© Turn counterclockwise.
=> 8 Turn the EVF Eyepiece.
í Pull the EVF Eyepiece.
; AY 2
© Remove any lint or dust particles
with a soft clean cloth being careful
not to scratch the glass surfaces.
3 Replace the EVF Eyepiece and the
screw.
34 For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@ panasonic.com
