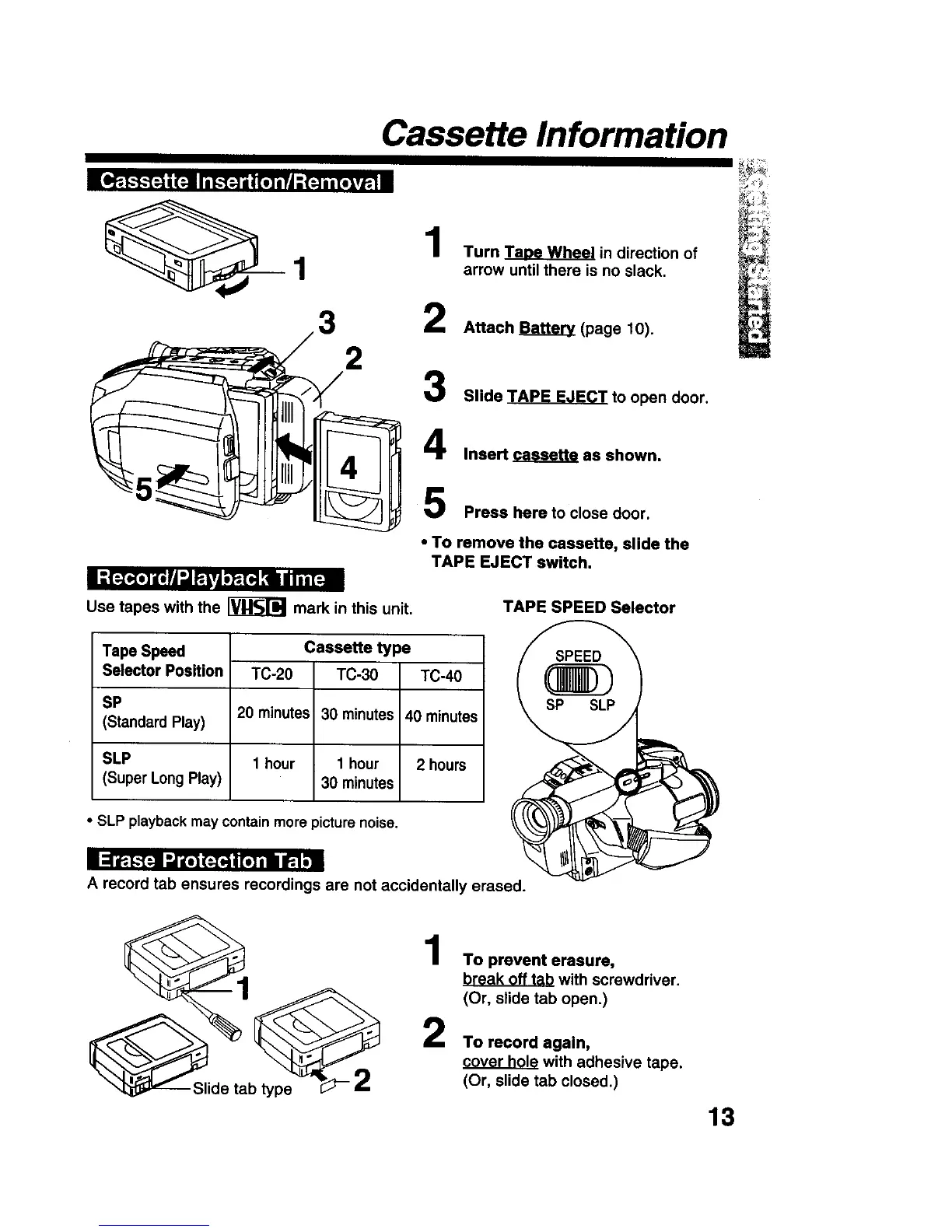

Cassette Information
Ill'f:. k'f,.'-[_i _ I *k"[:-]i | [o] iM -'f_ iiT*lVr.,| II
1
3 2
4
5
Use tapes with the _ mark in this unit.
Turn TaDe Wheel in direction of
arrow until there is no slack.
Attach _ (page 10).
Slide _ to open door.
Insert cassette as shown.
Press here to close door.
• To remove the cassette, slide the
TAPE EJECT switch.
TAPE SPEED Selector
Tape Speed
Selector Position
SP
(Standard Play)
SLP
(Super Long Play)
Cassette type
TC-20 TC-30 TC-40
20 minutes 30 minutes 40 minutes
1 hour 1 hour 2 hours
30 minutes
• SLP playback may contain more picture noise.
II ;i i_.l."[_.]l _1"_ F.['_ i [o] i I i_1ii
A record tab ensures recordings are not accidentally erased.
To prevent erasure,
break off tab with screwdriver.
(Or, slide tab open.)
To record again,
with adhesive tape.
(Or, slide tab closed.)
13
