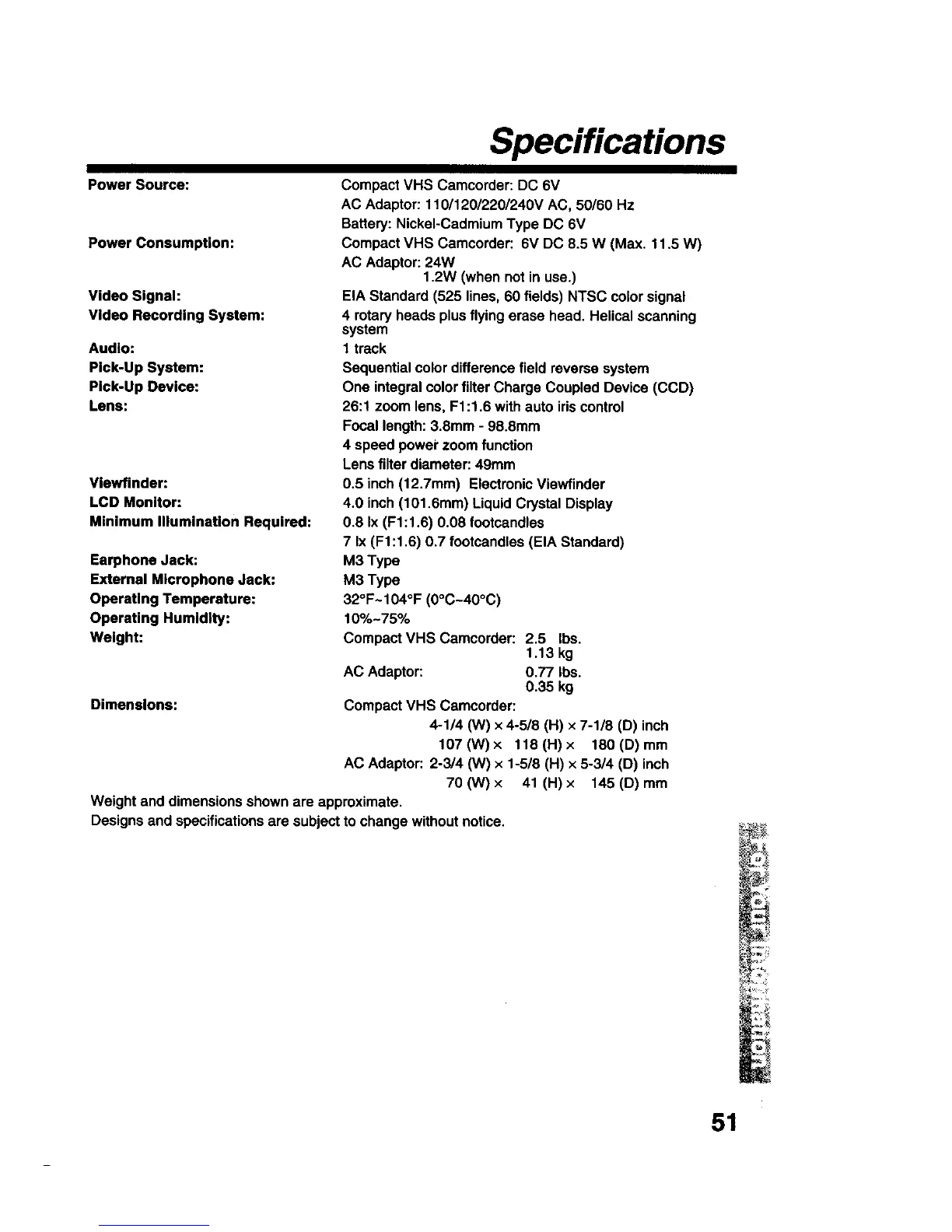

Specifications
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio:
Pick-Up System:
Plck-Up Device:
Lens:
Viewfinder:
LCD Monitor:
Minimum Illumination Required:
Earphone Jack:
External Microphone Jack:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
Compact VHS Camcorder: DC 6V
AC Adaptor: 110/120/220/240V AC, 50/60 Hz
Battery: Nickel-Cadmium Type DC 6V
Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)
AC Adaptor: 24W
1.2W (when not in use.)
EIA Standard (525 lines, 60 fields) NTSC color signal
4 rotary heads plus flying erase head. Helical scanning
system
1 track
Sequential color difference field reverse system
One integralcolor filter Charge Coupled Device (CCD)
26:1 zoom lens, F1:1.6 with auto iris control
Focal length: 3.8mm - 98.8mm
4 speed power zoom function
Lens filter diameter: 49mm
0.5 inch (12.7mm) Electronic Viewfinder
4.0 inch (101.6mm) Liquid Crystal Display
0.8 Ix (F1:1.6) 0.08 footcandles
7 Ix (F1:1.6) 0.7 footcandles (EIA Standard)
M3 Type
M3 Type
32oF~104OF (0oc-40oC)
10%-75%
Compact VHS Camcorder: 2.5 Ibs.
1.13 kg
AC Adaptor: 0.77 Ibs.
0.35 kg
Compact VHS Camcorder:
4-1/4 (W) x 4-5/8 (H) x 7-1/8 (D) inch
107(W)x 118(H)x 180(D)mm
AC Adaptor: 2-3/4 (W) x 1-5/8 (H) x 6-3/4 (D) inch
70(W) x 41(H) x 145(D) mm
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
