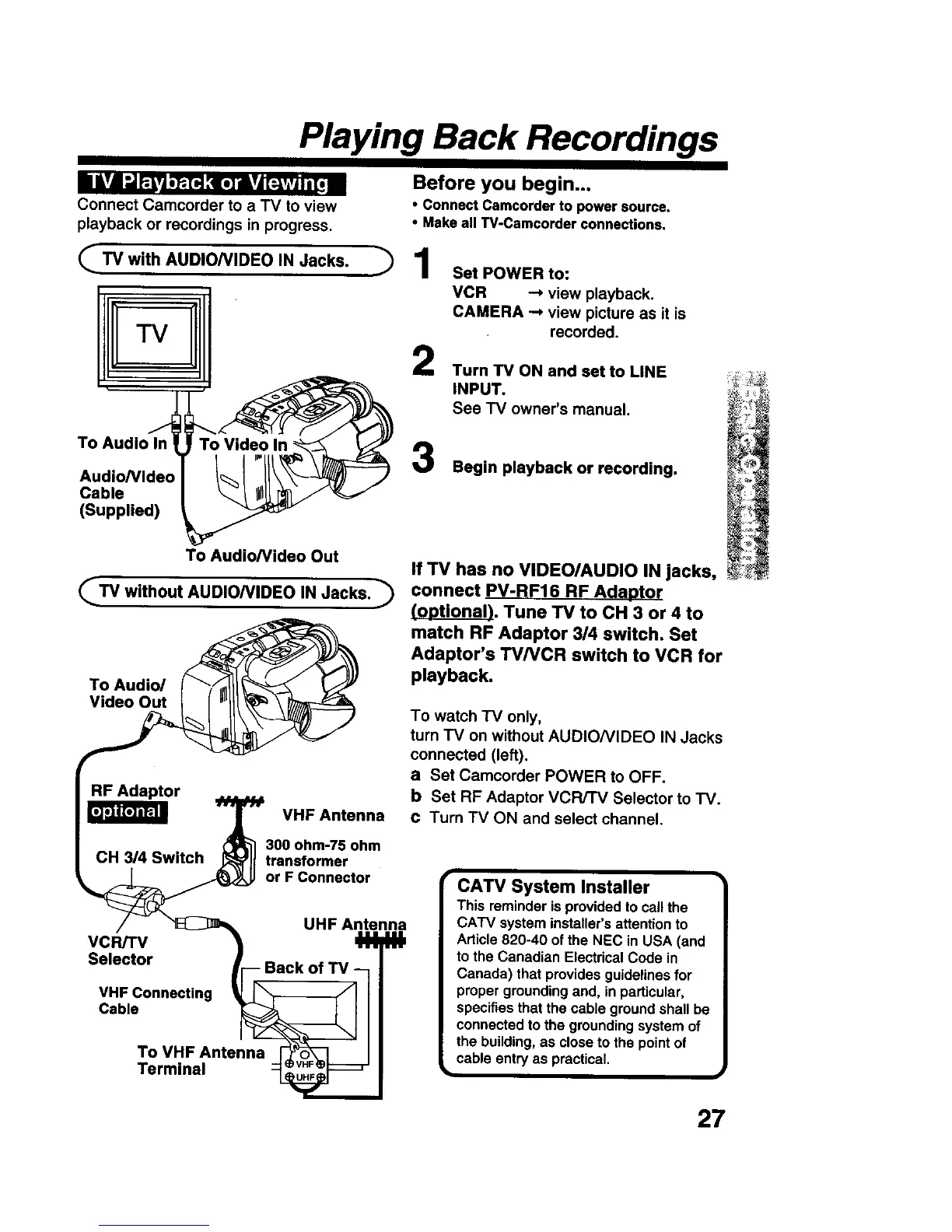

Playing Back Recordings
Connect Camcorder to a TV to view
playback or recordings in progress.
Before you begin...
• Connect Camcorder to power source.
• Make all TV-Camcorder connections.
TV with AUDIO/VIDEO IN Jacks. -'_ 1 Set POWER to:
ulll vcvw_
CAMERA _ view picture as it is
mY recorded.
Turn TV ON and set to LINE
INPUT.
See TV owner's manual.
Begin playback or recording.
To Audio In
AudioiVIdec
Cable
(Supplied)
To Video
To Audio/Video Out
_TV without AUDIO/VIDEO IN Jacks..._
To Audio/
Video Out
Adaptor
VHF Antenna
300 ohm-75 ohm
transformer
or F Connector
UHF Antenna
vcRrrv
Selector -- Back of TV
VHF Connecting ,-_-'_ I
Cable _1
To VHFAntenna _ I
Terminal
If TV has no VIDEO/AUDIO IN jacks,
connect PV-RF16 RF Adaptor
(o_otional). Tune TV to CH 3 or 4 to
match RF Adaptor 3/4 switch. Set
Adaptor's TV/VCR switch to VCR for
playback.
To watch IV only,
turn TV on without AUDIONIDEO IN Jacks
connected (left).
a Set Camcorder POWER to OFF.
b Set RF Adaptor VCR/FV Selector to TV.
c Turn TV ON and select channel.
CATV System Installer
This reminder is provided to call the
CATV system installer's attention to
Article 820-40 of the NEC in USA (and
to the Canadian Electrical Code in
Canada) that provides guidelines for
proper grounding and, in particular.
specifies that the cable ground shall be
connected to the grounding system of
the building, as close to the point of
cable entry as practical.
i
27
