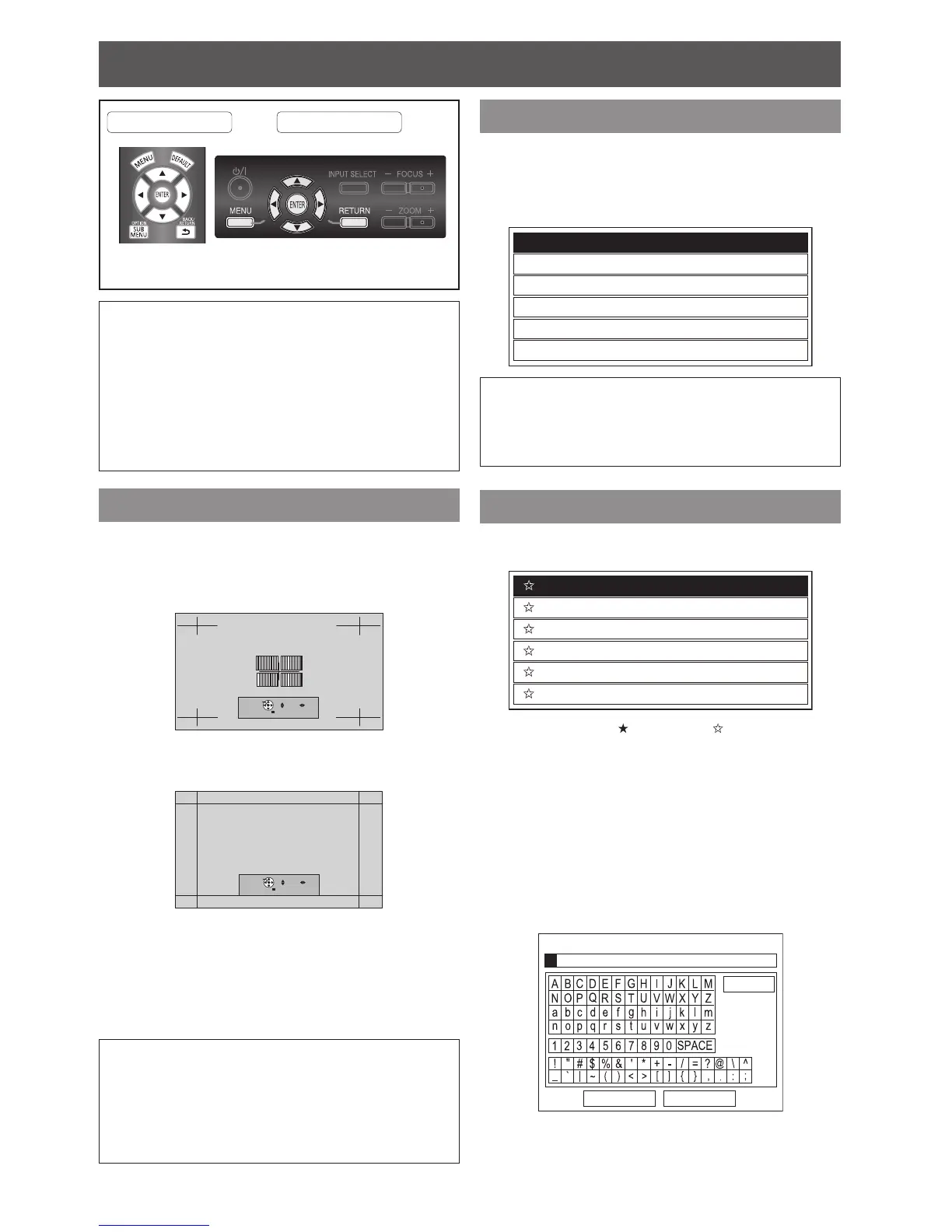

LENS CONTROL
Remote control Control panel
See “Navigating through the MENU” on page 16.
See “Menu list” on page 17.
NOTE:
The saved lens memory adjustment accuracy is not •
guaranteed.
If the memorised • ZOOM/FOCUS adjustment is not
accurate enough, adjust the ZOOM/FOCUS menu
again.
If the power supply is stopped while loading or saving •
the lens memory, saved adjusted settings may differ
from the original after restarting the projector. Adjust
the ZOOM/FOCUS menu again.
ZOOM/FOCUS
You can use the 2 different test patterns to adjust the
focus and zoom of the image.
Press the 1. ENTER button to display test pattern 1.
Press ▲ ▼ to adjust the focus and ◄ ► to adjust
the zoom.
PATTERN CHANGE
RETURN
FOCUS
ZOOM
Press the 2. ENTER button to display test pattern 2.
Press ▲ ▼ to adjust the focus and ◄ ► to adjust
the zoom.
PATTERN CHANGE
RETURN
FOCUS
ZOOM
Press the 3. ENTER button to display the projected
image.
You can conrm the adjustment is t to the projected
image.
Press the 4. MENU or RETURN button to return to
the previous menu, or press repeatedly to escape
the menu mode.
NOTE:
When the projector and/or the screen is tilted, adjust •
the focus at the center of the image. The upper and
lower edge might be out of focus.
When the image is distorted in keystone, adjust the •
KEYSTONE in POSITION menu. See “KEYSTONE” on
page 34.
LENS MEMORY LOAD
You can access the saved lens control settings (ZOOM/
FOCUS, H/V-AREA POSITION, and MASKING AREA)
instantly.
Select a setting from 1. LENS MEMORY 1 - 6.
Press the 2. ENTER button to activate.
LENS MEMORY1
LENS MEMORY2
LENS MEMORY3
LENS MEMORY4
LENS MEMORY5
LENS MEMORY6
NOTE:
The option that contains no saved adjustment will not •
be displayed.
If there is no saved setting, the • LENS MEMORY LOAD
menu will not be selectable.
LENS MEMORY SAVE
You can save and name the adjusted lens control
settings in the LENS MEMORY.
LENS MEMORY1
LENS MEMORY2
LENS MEMORY3
LENS MEMORY4
LENS MEMORY5
LENS MEMORY6
Indicated with is in use, and is empty.
Adjust 1. ZOOM/FOCUS, H/V-AREA POSITION and
MASKING AREA.
Select the 2. LENS MEMORY SAVE and press the
ENTER button.
Select the required memory setting and press the 3.
ENTER button.
The conrmation screen will be displayed. Select 4.
OK and press the ENTER button.
Name the lens memory setting.5.
Use ▲ ▼ ◄ ► to specify the location of the required
character to enter and press the ENTER button.
OK CANCEL
ALL DELETE
LENS MEMORY NAME INPUT
