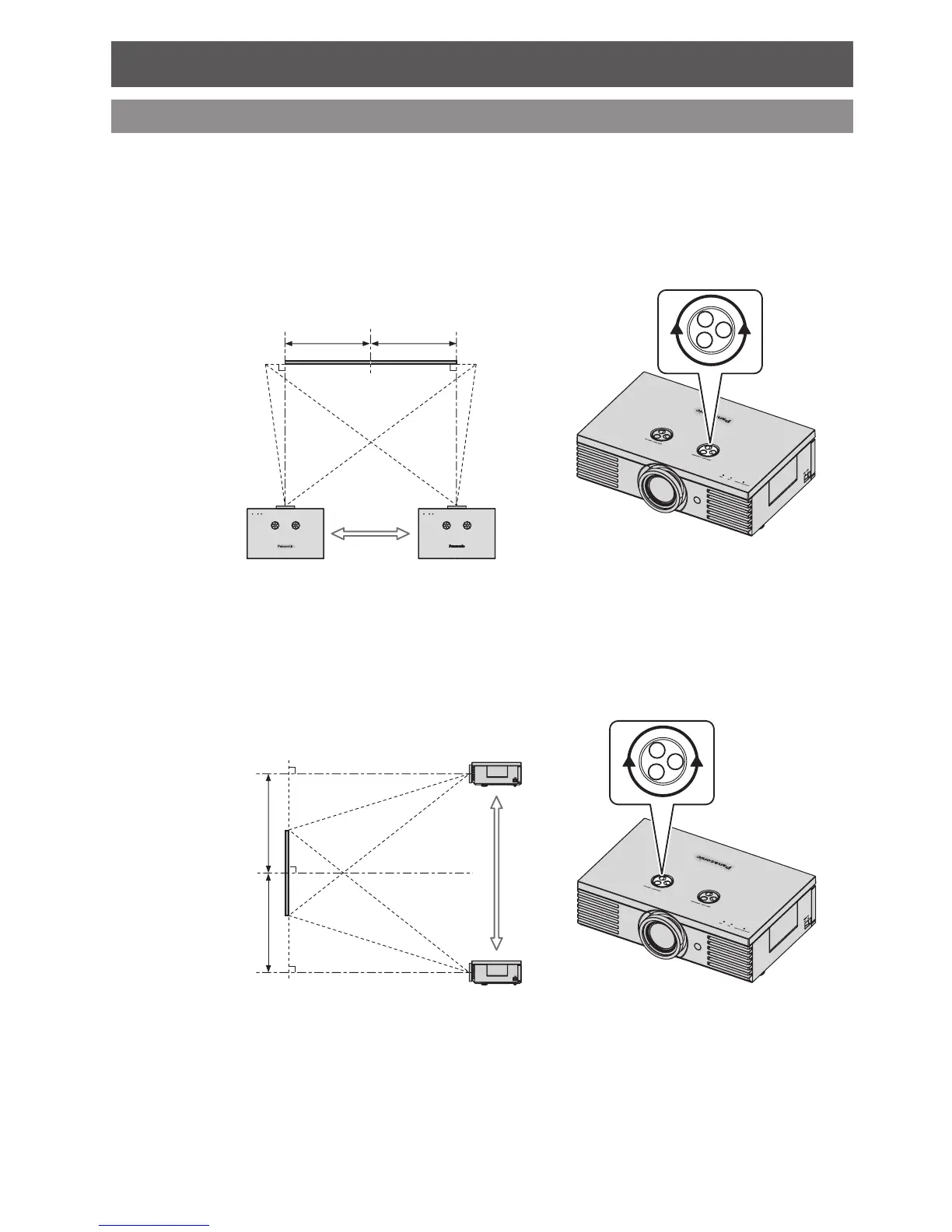

Lens shift and positioning
If the projector is not positioned right in front of the center of the screen, you can adjust the projected image
position by moving the lens shift dials within the shift range of the lens.
Adjusting the lens shift dials
J
Horizontal shift
Q
You can place the projector where the projector lens is up to 40 % horizontally off-center from the screen and
then adjust the image position with the Lens shift dial • Horizontal.
Up to about 40 %
of the projection
Up to about 40 %
of the projection
Turning the dial clockwise:
Image moves to the right
Turning the dial counterclockwise:
Image moves to the left
Vertical shift
Q
You can place the projector where the projector lens is up to 100 % vertically off-center from the screen and
then adjust the image position with the Lens shift dial • Vertical.
Up to about 100 %
of the projection
Up to about 100 %
of the projection
Turning the dial counterclockwise:
Image moves to the bottom
Turning the dial clockwise:
Image moves to the top
