Connections
Before connecting to the projector
Read and follow the operating and connecting instructions of each peripheral device.
The peripheral devices must be turned off.
Use cables that match each peripheral device to be connected.
Conrm the type of video signals. See “List of compatible signals” in “Technical Information” of the operating
instructions.
Audio cables must be connected from each peripheral device directly to the audio reproduction system.

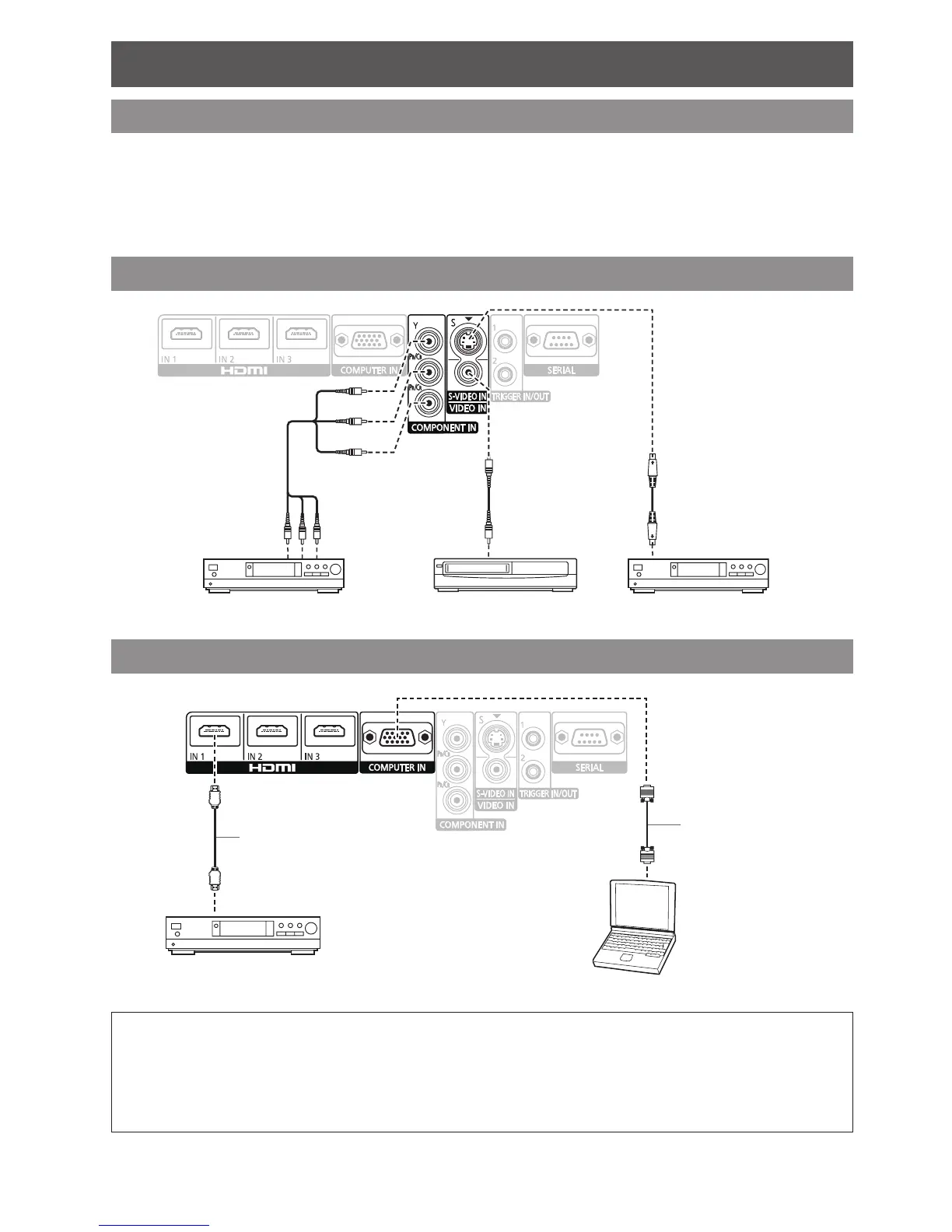

Connecting example: COMPONENT IN/S-VIDEO IN/VIDEO IN
To VIDEO output To S-VIDEO output
DVD player Video player DVD player
To COMPONENT
video output
Connecting example: HDMI
IN/COMPUTER
IN
To HDMI output
Blu-ray player
Computer
HDMI cable
(Commercial item)
RGB signal cable
(Commercial item)
NOTE:
Make sure the HDMI cable is adapted to your HDMI device for proper performance. •
A compatible cable is required for an HDMI 1 080p signal. •
It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the •
image properly or other problems could be encountered.
Please tighten securely, xing the screws on the connectors (D-SUB 15-pin) of the RGB signal cable. •
For more information about the serial terminals, see “Serial terminal” on page • 42.
