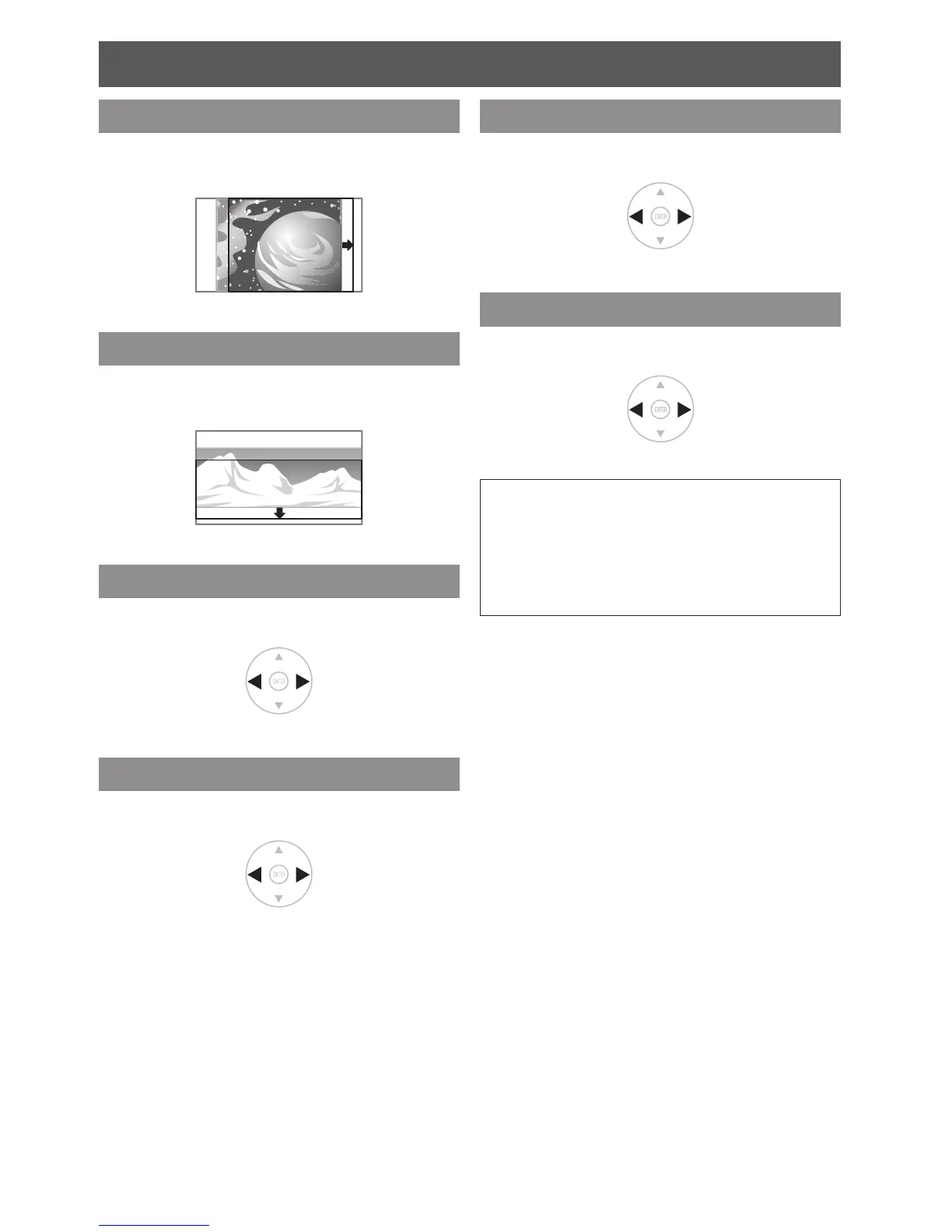

H-AREA POSITION
You can move the frame area horizontally, such as
aligning the right or left frame edge to the screen edge.
Press
◄ ► to move the frame.
Setting range: −63 to +63
V-AREA POSITION
You can move the frame area vertically, such as
aligning the top or bottom frame edge to the screen
edge. Press
◄ ► to move the frame.
Setting range: −63 to +63
LEFT MASKING AREA
You can place a blank (mask) area in the left side edge
on the screen.
Less More
Setting range: 0 to +70
RIGHT MASKING AREA
You can place a blank (mask) area in the right side
edge on the screen.
Less More
Setting range: 0 to +70
UPPER MASKING AREA
You can place a blank (mask) area in the upper side
edge on the screen.
Less More
Setting range: 0 to +70
LOWER MASKING AREA
You can place a blank (mask) area in the lower side
edge on the screen.
Less More
Setting range: 0 to +70
NOTE:
If it is set to 0, each • MASKING will be invalid.
The • MASKING AREA function will be invalid when
adjusting the COLOR MANAGEMENT or SPLIT
ADJUST settings and displaying the TEST PATTERN
or WAVEFORM MONITOR, and no signal is detected.
You can not adjust the • MASKING if keystone correction
is performed.
