• Use an input module which correctly matches the input signal type.

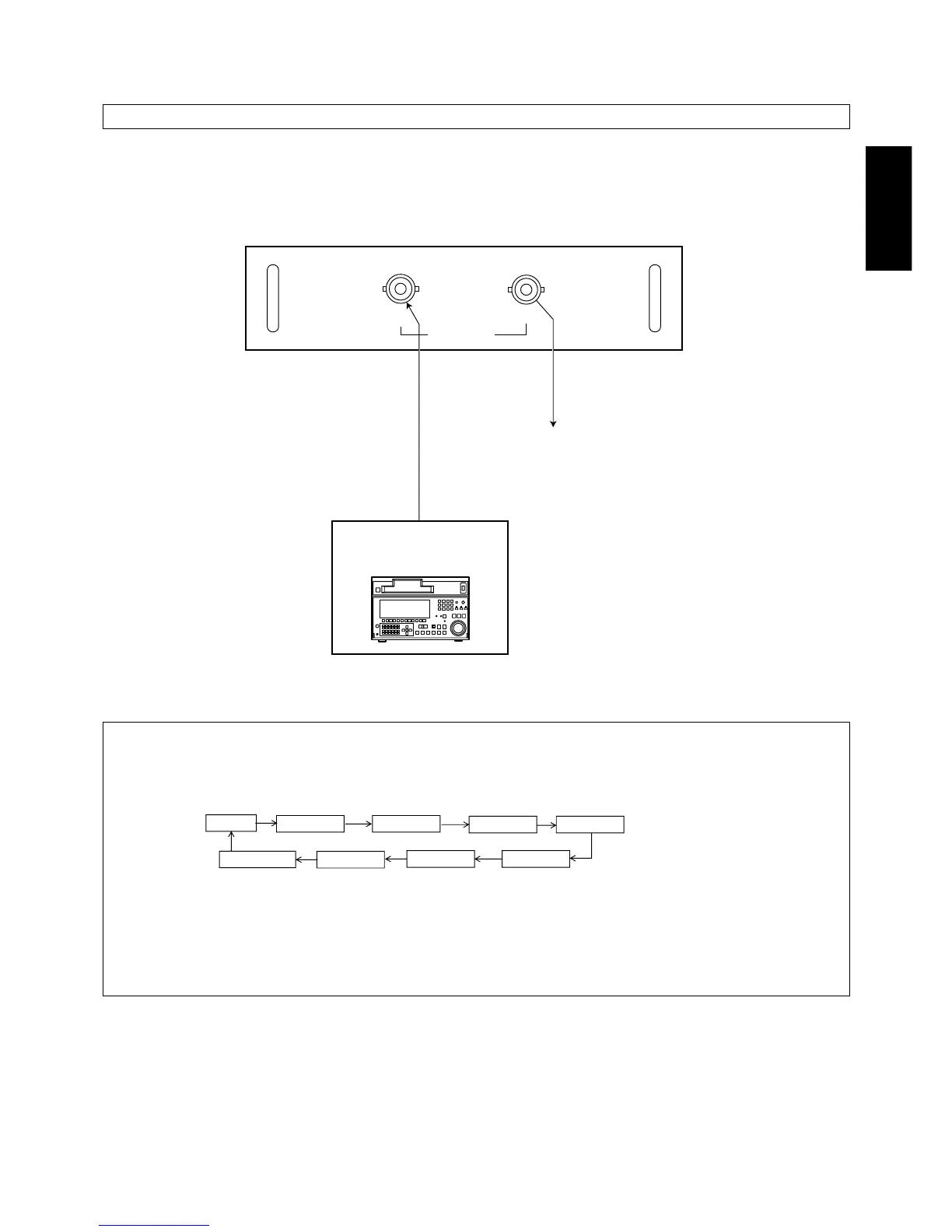

• Input modules that accommodate 8 video signal formats (14 scan formats) (SMPTE292M) can be switched
from one to another with the SYSTEM SELECTOR switch that cycles through those signal formats.
The selected input signal is indicated by an OSD message that automatically goes off.
• The SYSTEM SELECTOR should normally be set in the AUTO position.
• The automatic scan format identification logic may malfunction if signal connections other than those
described above are employed or an unstable video signal is applied. In such an event, use the SYSTEM
SELECTOR button to select the scan format that matches the video signal format applied.
• To ensure correct video signal transmission, use 5CFB or better than 5CFB cables for video interconnections
(e.g., 5CFB, 5CFTX, 7CFB, etc.).
