Panasonic PT-RZ21K

Chapter 2 Getting Started — Setting up
48 - ENGLISH
For PT-RS20K
r Zoom Lens

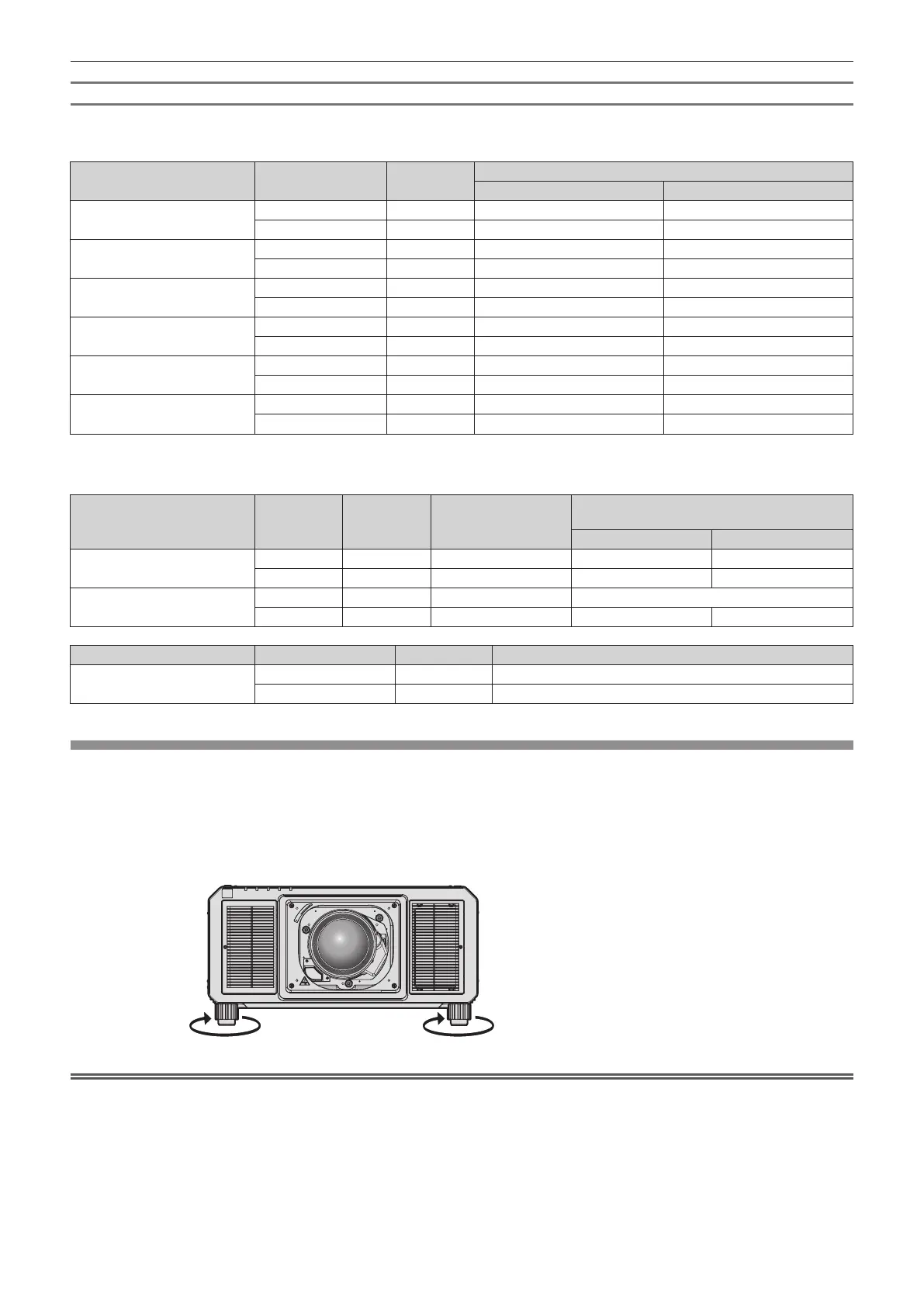

Projection lens Model No. Throw ratio Aspect ratio
Projection distance (L) formula
Min. (LW) Max. (LT)
ET-D75LE6
1.01 - 1.19:1 4:3 = 0.8150 x SD
- 0.0566 = 0.9764 x SD - 0.0736
1.01 - 1.19:1 16:9 = 0.8877 x SD
- 0.0566 = 1.0636 x SD - 0.0736
ET-D75LE10
1.41 - 1.81:1 4:3 =1.1425 x SD
- 0.0857 = 1.4767 x SD - 0.1085
1.41 - 1.81:1 16:9 = 1.2446 x SD
- 0.0857 = 1.6086 x SD - 0.1085
ET-D75LE20
1.80 - 2.61:1 4:3 = 1.4618 x SD
- 0.0832 = 2.1241 x SD - 0.1162
1.81 - 2.61:1 16:9 = 1.5924 x SD
- 0.0832 = 2.3137 x SD - 0.1162
ET-D75LE30
2.60 - 5.05:1 4:3 = 2.1089 x SD
- 0.1131 = 4.0899 x SD - 0.1765
2.61 - 5.05:1 16:9 = 2.2972 x SD
- 0.1131 = 4.4552 x SD - 0.1765
ET-D75LE40
5.00 - 7.99:1 4:3 = 4.0379 x SD
- 0.1577 = 6.4377 x SD - 0.1615
5.00 - 7.99:1 16:9 = 4.3985 x SD
- 0.1577 = 7.0126 x SD - 0.1615
ET-D75LE8
7.95 - 14.9:1 4:3 = 6.4547 x SD
- 0.3862 = 12.0937 x SD - 0.3598
7.96 - 15.0:1 16:9 = 7.0312 x SD
- 0.3862 = 13.1737 x SD - 0.3598
r Fixed-focus Lens
Projection lens Model No. Throw ratio Aspect ratio
Projection distance
(L1) formula
Formula for distance between projector and
screen (A1)
Min. Max.
ET-D75LE95
0.394:1 4:3 = 0.310 x SD + 0.020 = 0.166 x SH
- 0.128 = 0.206 x SH - 0.128
0.394:1 16:9 = 0.337 x SD + 0.020 = 0.222 x SH
- 0.128 = 0.441 x SH - 0.128
ET-D75LE90
0.394:1 4:3 = 0.310 x SD + 0.020 = 0.206 x SH
- 0.128
0.394:1 16:9 = 0.337 x SD + 0.020 = 0.275 x SH
- 0.128 = 0.441 x SH - 0.128
Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula
ET-D75LE50
0.752:1 4:3 = 0.6202 x SD
- 0.0713
0.754:1 16:9 = 0.6755 x SD
- 0.0713
Adjusting adjustable feet
Install the projector on a at surface so that the front of the projector is parallel to the screen surface and the
projection screen is rectangular.
If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular.
The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Adjustable feet can be extended by turning them as shown in the gure. Turning them in the opposite direction will
return them to the original position.
Maximum adjustable range
Adjustable feet: 20 mm (25/32") each
Attention
f Be careful not to block the intake/exhaust ports with your hands or any objects when adjusting the adjustable feet while the light source is
on. (x page 30)
