Attention
f The angle sensor cannot detect whether it is the “Installation prohibited posture” in the above gure. Do not use the projector tilted at an
angle that exceeds ±30° from the horizontal plane. It may reduce the life of the components. (x page 13)
Parts for ceiling mount (optional)
This requires an optional ceiling mount bracket. Be sure to use the Projector Mount Bracket together with the
ceiling mount bracket for high ceilings or low ceilings.
Model No.:
① ET-PKL100H (for high ceilings), ET-PKV400B (Projector Mount Bracket)
② ET-PKL100S (for low ceilings), ET-PKV400B (Projector Mount Bracket)
f Use only the ceiling mount brackets specied for this projector.
f Refer to the Installation Instructions for the ceiling mount bracket when you install the bracket and the projector.
Attention
f To ensure projector performance and security, installation of the ceiling mount bracket must be carried out by your dealer or a qualied
technician.

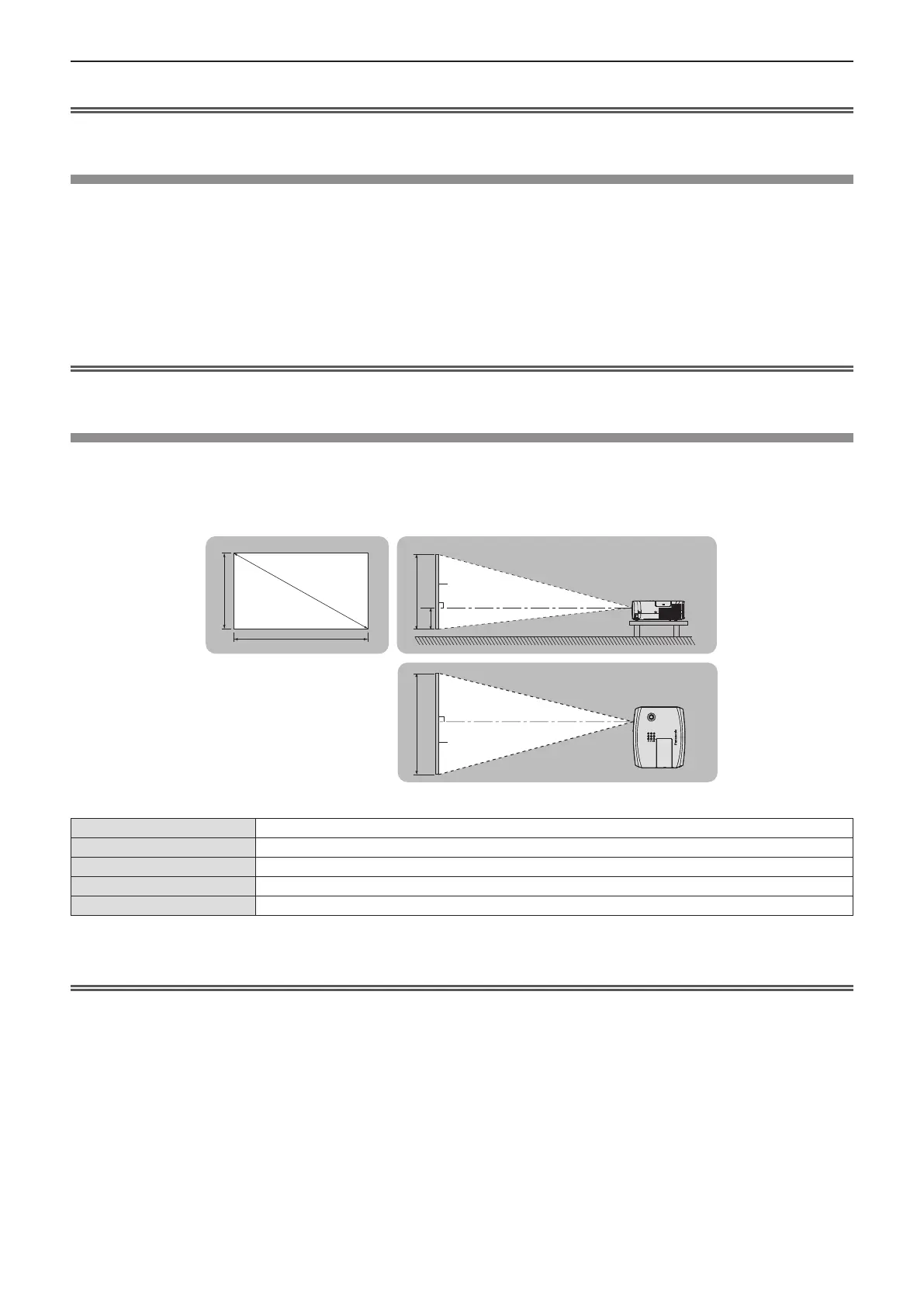

Screen size and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be
adjusted in accordance with the screen size and screen position.
f Following illustration is prepared on the assumption that the projected image size and position have been
aligned to t full in the screen.
SD
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
Projected image
Screen
Screen
(Unit: m)
L (LW/LT) *
1
Projection distance
SH Image height
SW Image width
H Distance from the center of lens to the image lower end
SD Projected image size
*1 LW : Minimum distance
LT : Maximum distance
Attention
f Before installing, please read “Precautions for Use”. (Æ page 13)
ENGLISH - 27
Chapter 2 Getting Started - Setting up
