44

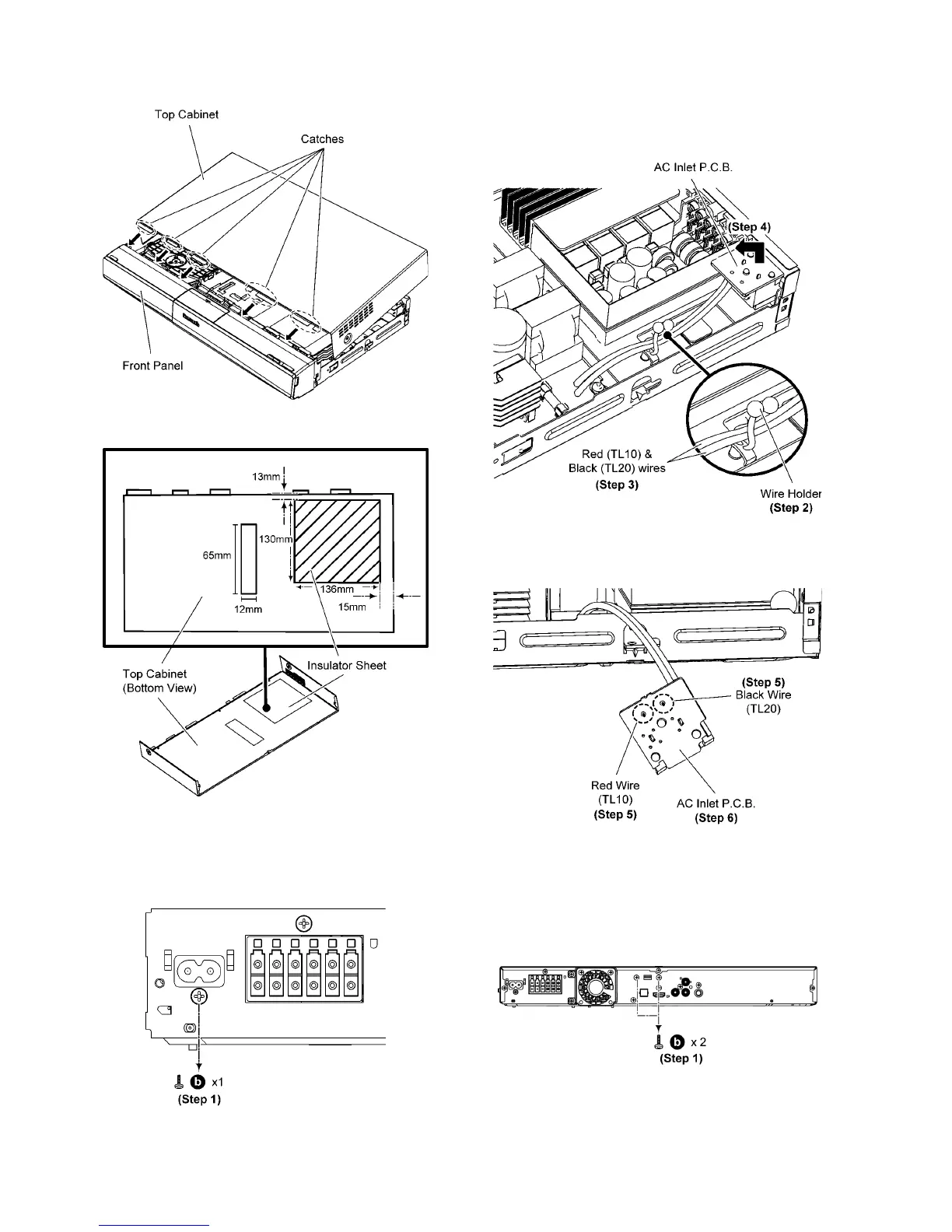

Caution: During assembling, ensure that catches of Top
Cabinet is insert into Front Panel properly.
Caution: Replace the insulator sheet if broken & ensure it
is pasted properly on the Top Cabinet.
8.4. Disassembly of AC Inlet P.C.B.
• Refer to “Disassembly of Top Cabinet”
Step 1 Remove 1 screw.
Step 2 Twist the Wire Holder.
Step 3 Release Red (TL10) & Black (TL20) wires from the Wire
Holder.
Caution: During assembling, ensure that Red (TL10) &
Black (TL20) wires are dressed into Wire Holder.
Step 4 Lift up AC Inlet P.C.B. as arrow shown.
Step 5 Desolder Red (TL10) & Black (TL20) Wires on AC Inlet
P. C. B ..
Step 6 Remove AC Inlet P.C.B..
8.5. Disassembly of Voltage Selec-
tor P.C.B.
• Refer to “Disassembly of Top Cabinet.
Step 1 Remove 2 screws.
Step 2 Lift up Voltage Selector P.C.B. as arrow shown.
To Next Page
