Caution: During assembling, ensure that Main P.C.B. is
seated properly at the locators.
8.19. Disassembly of D-Amp P.C.B.
• Refer to “Disassembly of AC Inlet P.C.B.”

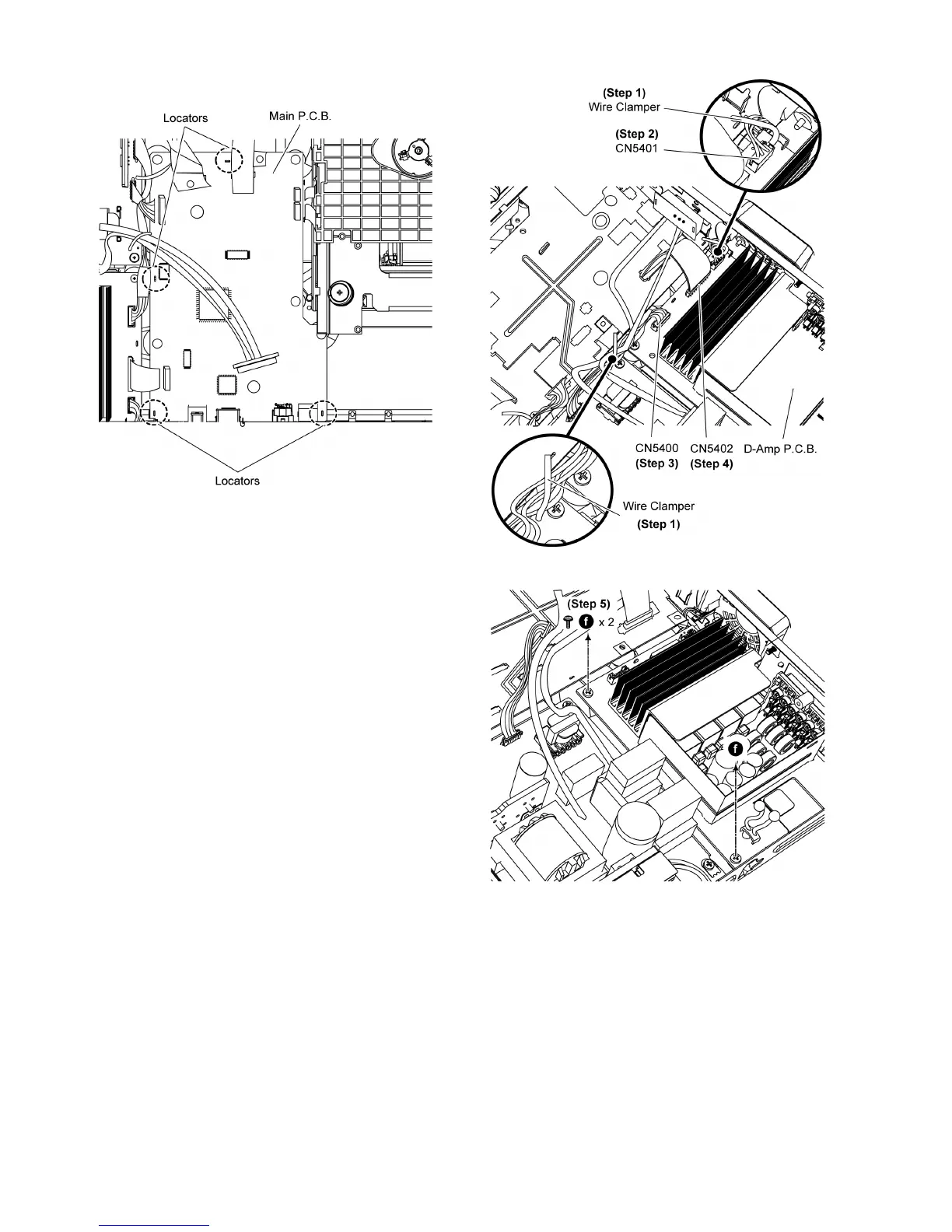

Step 1 Lift up 2 Wire Clampers.
Step 2 Detach 3P Wire at the connector (CN5401) on D-Amp
P. C.B ..
Step 3 Detach 6P Cable at the connector (CN5400) on D-Amp
P. C.B ..
Step 4 Detach 18P Cable at the connector (CN5402) on D-
Amp P.C.B..
Step 5 Remove 2 screws on D-Amp P.C.B..
Step 6 Remove 5 screws.
Step 7 Release the tab of the side of the Rear Panel in the
direction of arrow.
