Panasonic SA-VK61DEE - 13 Optical Pickup Self-Diagnosis and Replacement Procedure; Self-Diagnosis

13 Optical Pickup Self-Diagnosis and Replacement
Procedure
13.1. Self-diagnosis

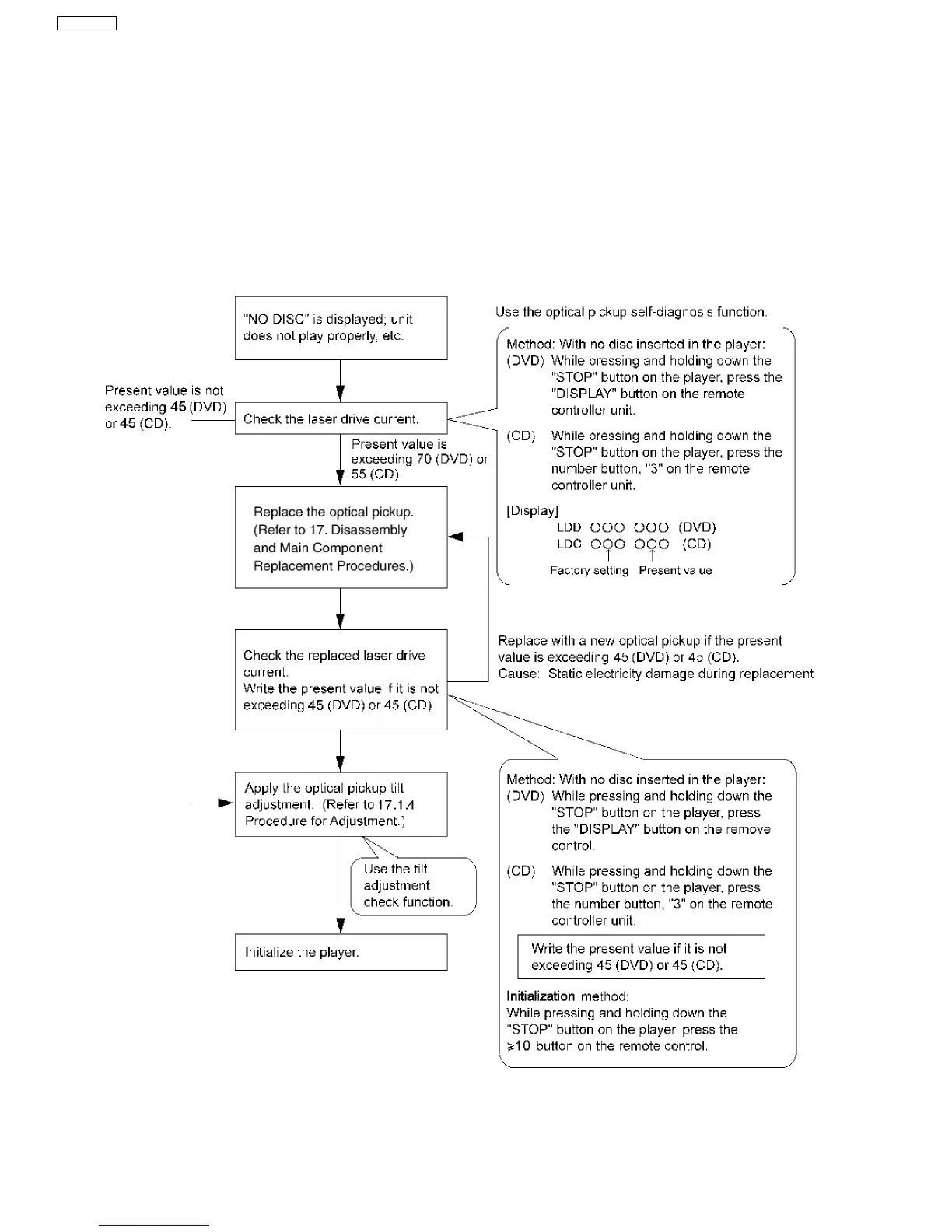

This unit is equipped with the optical pickup self-diagnosis function and the tilt adjustment check function. Follow the procedure
described below during repair in order to perform self-diagnosis and tilt adjustment effectively. Especially when “NO DISC” is
displayed, be sure to apply the self-diagnosis function before replacing with an optical pickup. Replacement of optical pickup
generally requires when the present value of laser drive exceeds 45 (DVD) or 45 (CD).
Note:
Start diagnosis within three minutes after turning on the power (as diagnosis fails when the unit becomes warm).
22
SA-VK61DEE
