Panasonic SA-VK61DEE - DVD Changer Unit Main Component Replacement Procedures

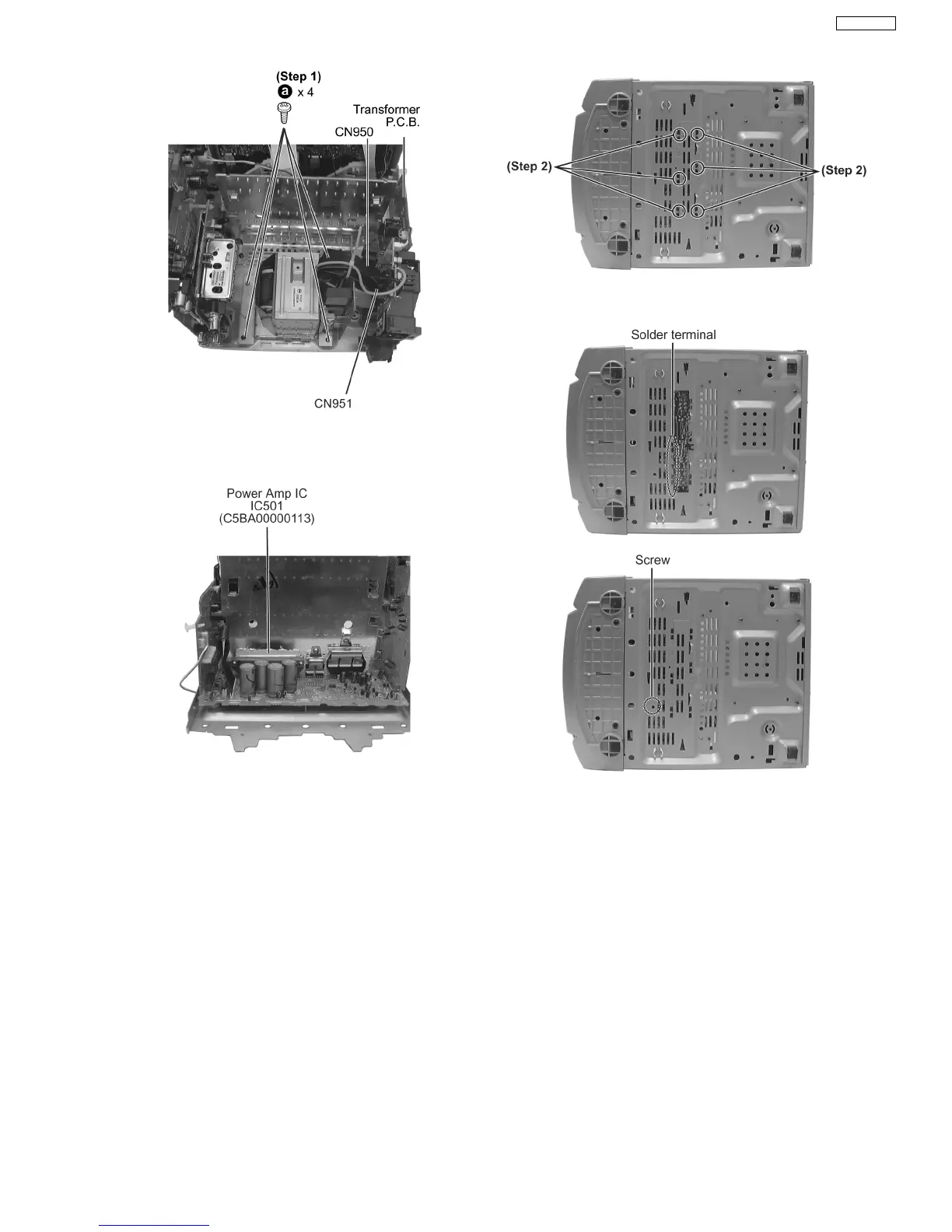

Step 2 Disconnect connector CN950 & CN951.
· Replacement of Power Amp IC
Step 1 Remove the 2 screws fixed to the Power Amplifier IC.
Step 2 Remove 2 screws fixed to the Power Amplifier IC and
Transistor Holders.
Step 3 Break the joint with a metal cutter as shown below.
16.8.1. Replacement of the Traverse Deck
· Follow the (Step 1) - (Step 2) of Item 16.2.
· Follow the Disassembly for the Top Ornament Unit of Item
16.4.
· Follow the (Step 1) - (Step 4) of Item 16.5.
· Follow the (Step 1) - (Step 2) of Item 16.5.1.
Step 4 Unsolder the terminals of Power Amp IC, replace the
component.
Step 5 Fix back the bottom chasis with a screw as shown.
16.8. DVD Changer Unit Main Component Replacement Procedures
37
SA-VK61DEE
