Panasonic SA-VK61DEE - Disassembly of Top Cabinet; Disassembly of DVD Module (2) P.C.B; Disassembly for the Top Ornament Unit

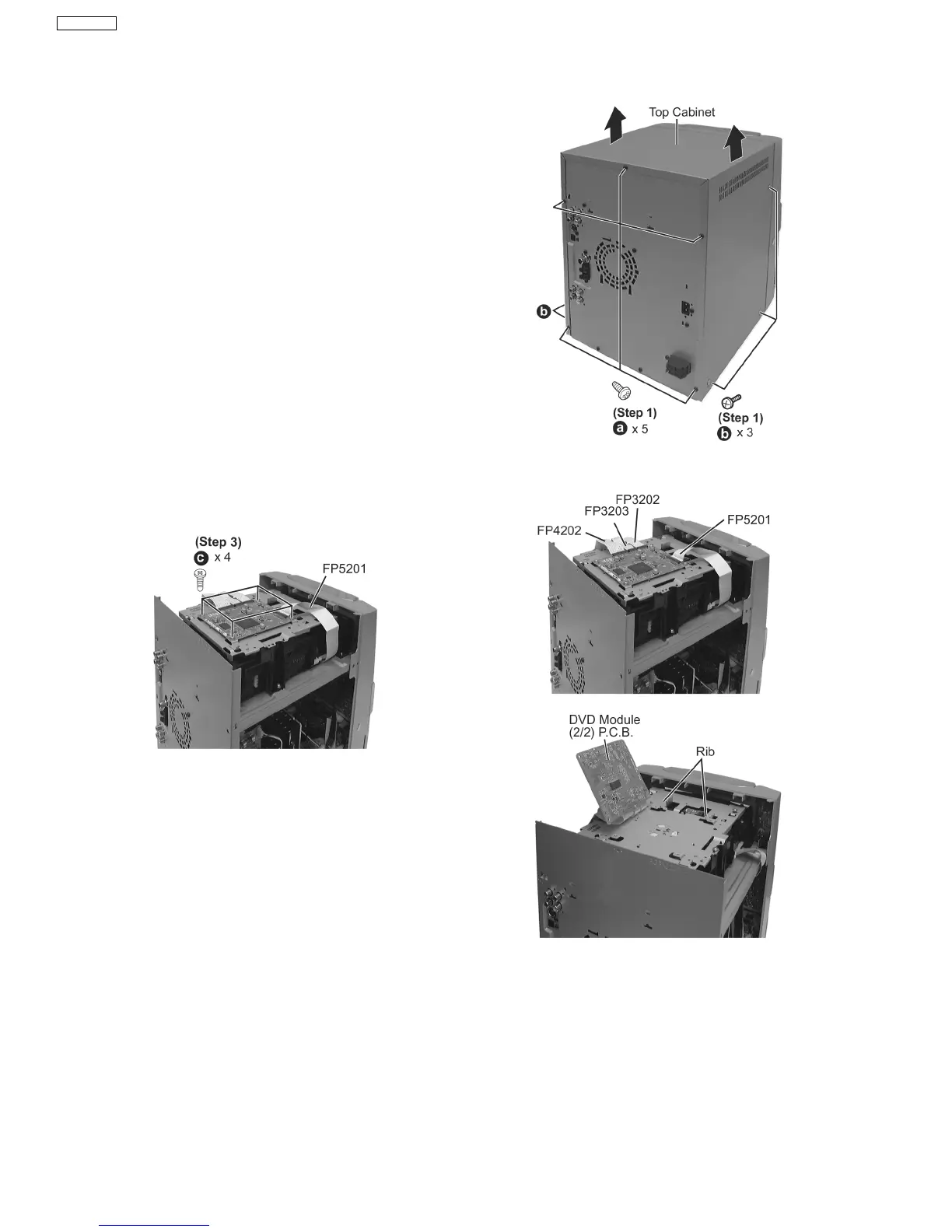

Step 1 Remove 3 screws each side and 5 screws at rear panel.
Step 2 Lift up both sides of cabinet ass’y, push the cabinet
ass’y toward the rear and remove the top cabinet.
· Follow the (Step 1) - (Step 2) of Item 16.2.
Step 1 Remove 4 screws.
Step 2 Detach FFC boards (FP5201, FP3202, FP3203 &
FP4202).
(The DVD changer unit can be removed after the Top
Ornament Unit is removed)
· Follow the (Step 1) - (Step 2) of Item 16.2.
When opening the disc tray automatically (Using Power
Supply)
Step 1 Connect the AC power cord.
Step 2 Press the power button to power up the main unit.
Step 3 Lift up DVD Module (2) P.C.B. as shown to remove it.
Step 3 Press the OPEN/CLOSE button, the disc tray will be
open automatically.
16.2. Disassembly of Top Cabinet
16.3. Disassembly of DVD Module (2) P.C.B.
16.4. Disassembly for the Top Ornament Unit
32
SA-VK61DEE
