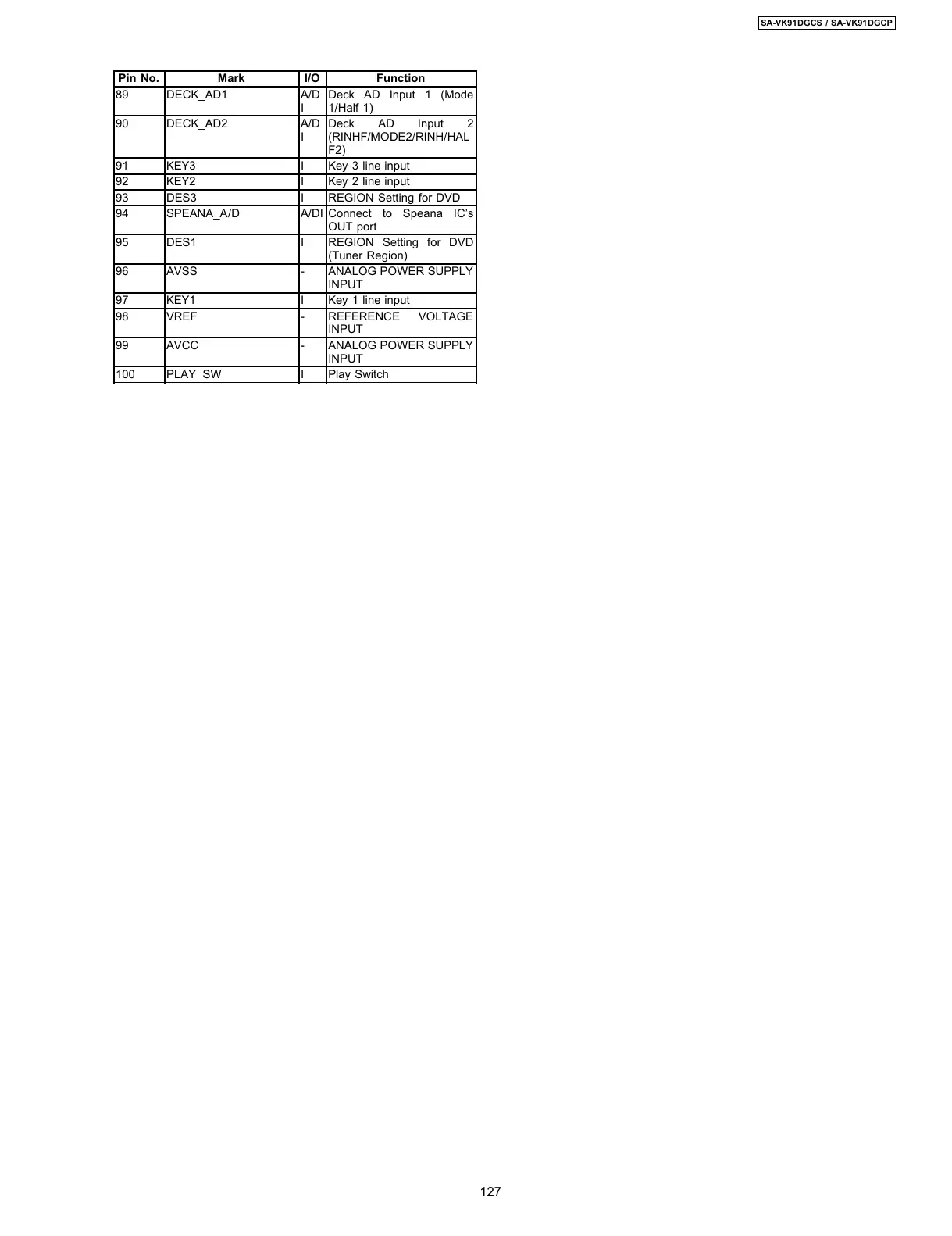

Pin No. Mark I/O Function
89 DECK_AD1 A/D
I
Deck AD Input 1 (Mode
1/Half 1)
90 DECK_AD2 A/D
I
Deck AD Input 2
(RINHF/MODE2/RINH/HAL
F2)
91 KEY3 I Key 3 line input
92 KEY2 I Key 2 line input
93 DES3 I REGION Setting for DVD
94 SPEANA_A/D A/DI Connect to Speana IC’s
OUT port
95 DES1 I REGION Setting for DVD
(Tuner Region)
96 AVSS - ANALOG POWER SUPPLY
INPUT
97 KEY1 I Key 1 line input
98 VREF - REFERENCE VOLTAGE
INPUT
99 AVCC - ANALOG POWER SUPPLY
INPUT
100 PLAY_SW I Play Switch
127
SA-VK91DGCS / SA-VK91DGCP
