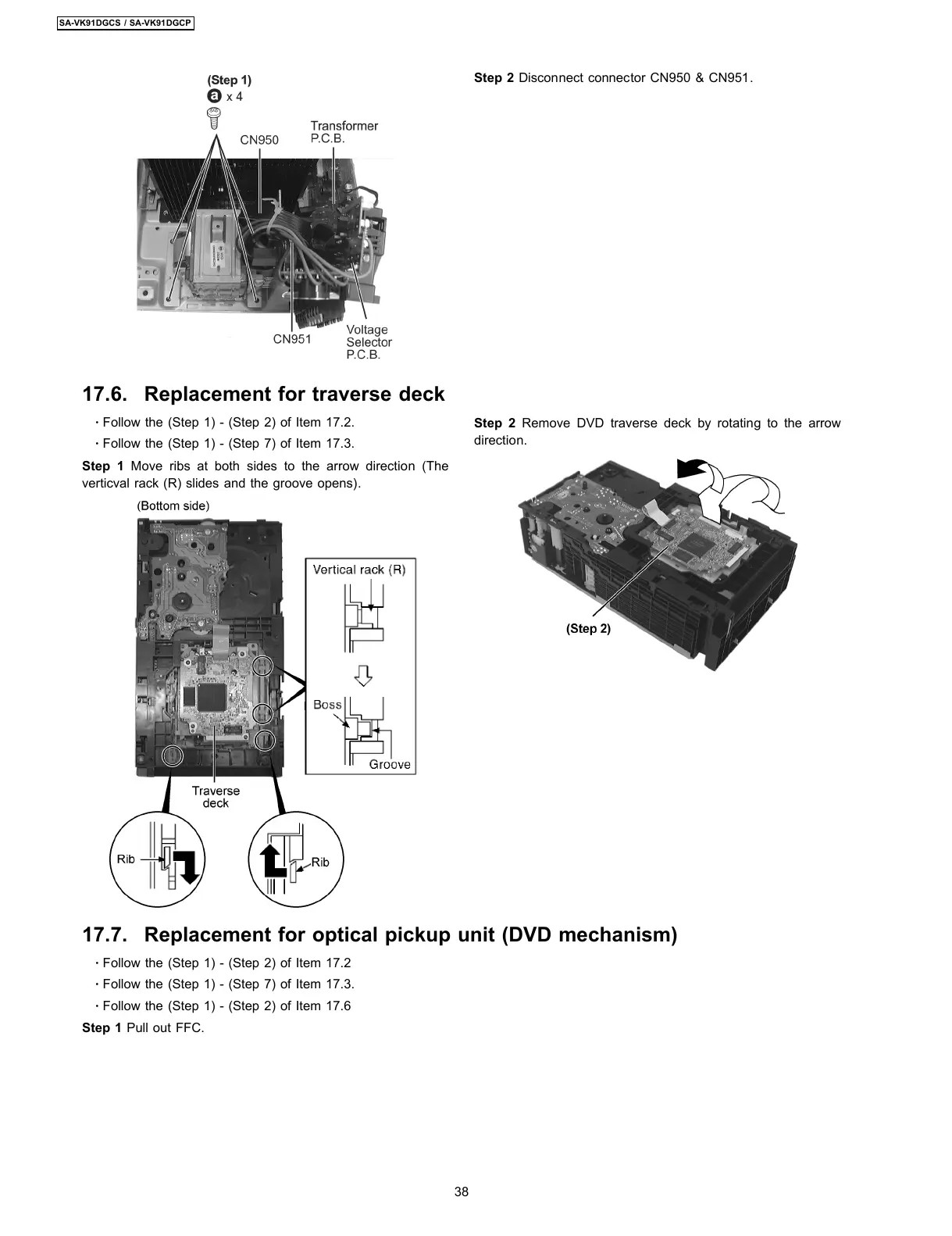

Panasonic SA-VK91D - Replacement for Traverse Deck; Replacement for Optical Pickup Unit (DVD Mechanism)

· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the (Step 1) - (Step 7) of Item 17.3.
Step 1 Move ribs at both sides to the arrow direction (The
verticval rack (R) slides and the groove opens).
Step 1 Pull out FFC.
Step 2 Disconnect connector CN950 & CN951.
Step 2 Remove DVD traverse deck by rotating to the arrow
direction.
17.6. Replacement for traverse deck
17.7. Replacement for optical pickup unit (DVD mechanism)
· Follow the (Step 1) - (Step 2) of Item 17.2
· Follow the (Step 1) - (Step 7) of Item 17.3.
· Follow the (Step 1) - (Step 2) of Item 17.6
38
SA-VK91DGCS / SA-VK91DGCP
