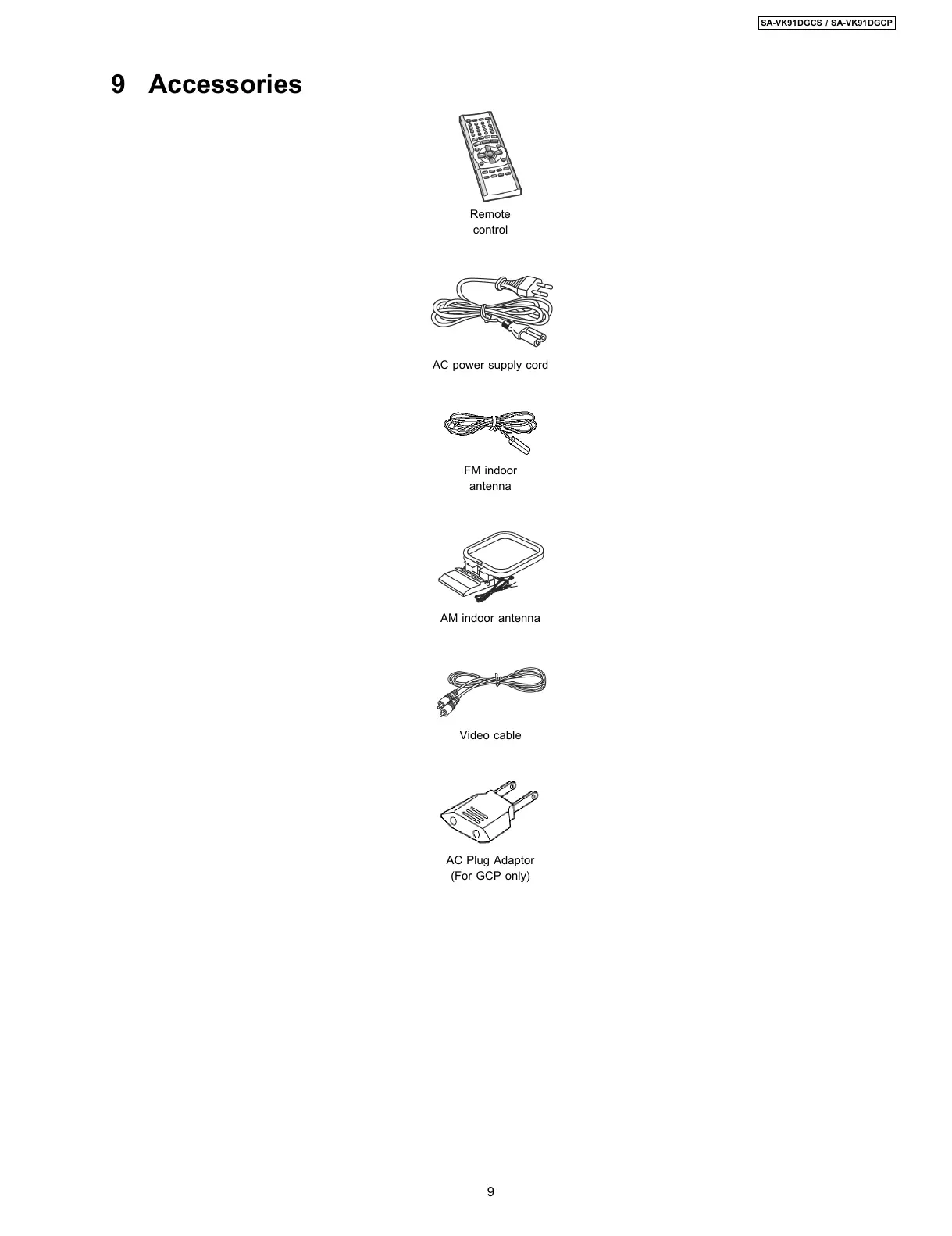

9 Accessories

Remote

control

AC power supply cord

FM indoor

antenna

AM indoor antenna

Video cable

AC Plug Adaptor

(For GCP only)

SA-VK91DGCS / SA-VK91DGCP
