Panasonic SA-VK91D - Disassembly of Deck Mechanism Unit

· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the Disassembly for the CD changer unit of Item
17.2.1.

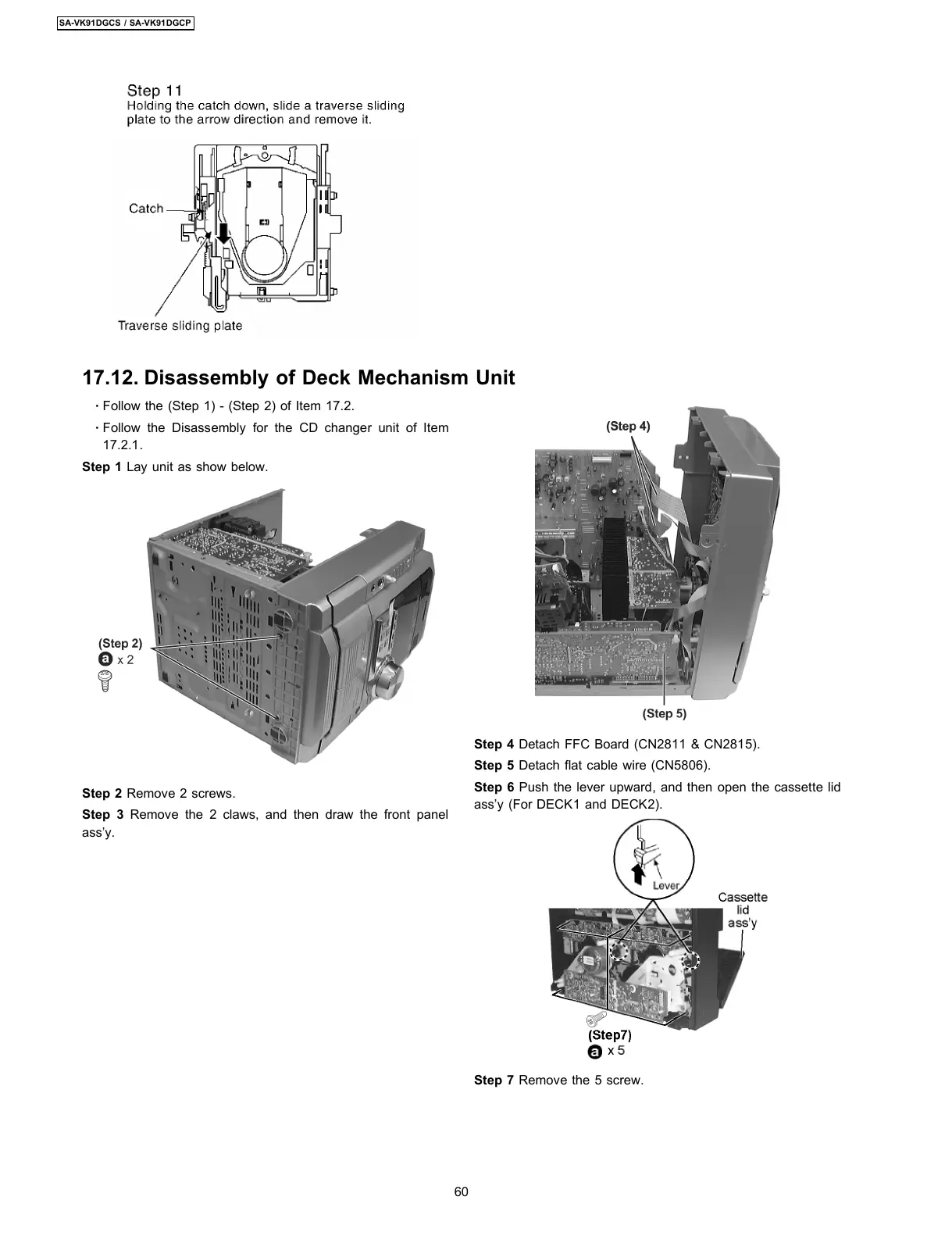

Step 1 Lay unit as show below.
Step 2 Remove 2 screws.
Step 3 Remove the 2 claws, and then draw the front panel
ass’y.
Step 4 Detach FFC Board (CN2811 & CN2815).
Step 5 Detach flat cable wire (CN5806).
Step 6 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 7 Remove the 5 screw.
17.12. Disassembly of Deck Mechanism Unit
60
SA-VK91DGCS / SA-VK91DGCP
