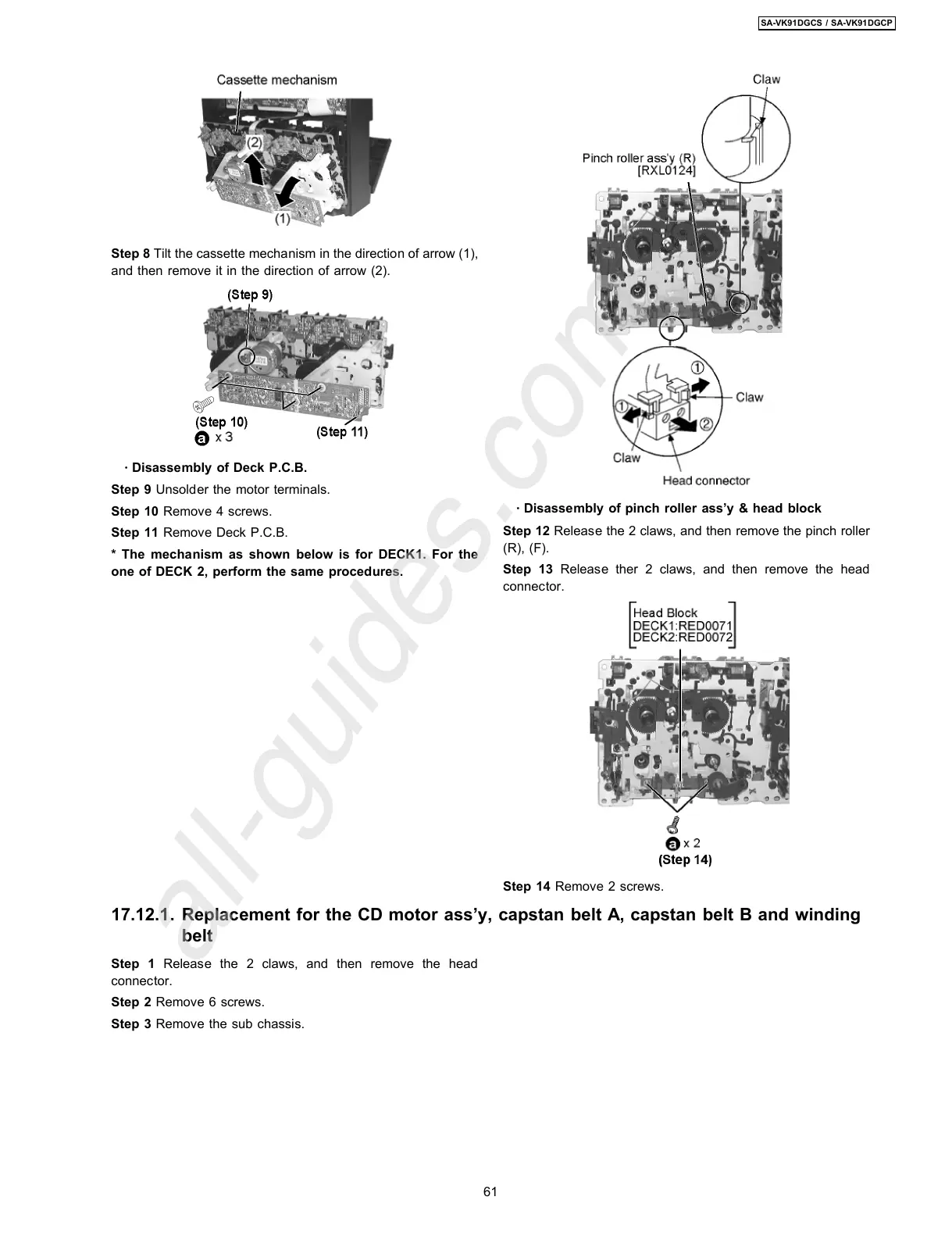

Step 8 Tilt the cassette mechanism in the direction of arrow (1),
and then remove it in the direction of arrow (2).
·
Disassembly of Deck P.C.B.
Step 9 Unsolder the motor terminals.
Step 10 Remove 4 screws.
Step 11 Remove Deck P.C.B.
* The mechanism as shown below is for DECK1. For the
one of DECK 2, perform the same procedures.
Step 1 Release the 2 claws, and then remove the head
connector.
Step 2 Remove 6 screws.
Step 3 Remove the sub chassis.
·
Disassembly of pinch roller ass’y & head block
Step 12 Release the 2 claws, and then remove the pinch roller
(R), (F).
Step 13 Release ther 2 claws, and then remove the head
connector.
Step 14 Remove 2 screws.
17.12.1. Replacement for the CD motor ass’y, capstan belt A, capstan belt B and winding
belt
61
SA-VK91DGCS / SA-VK91DGCP
