Panasonic SA-VK91D - Checking the Panel P.C.B., Tact P.C.B., MIC P.C.B., Deck; Deck Mechanism P.C.B

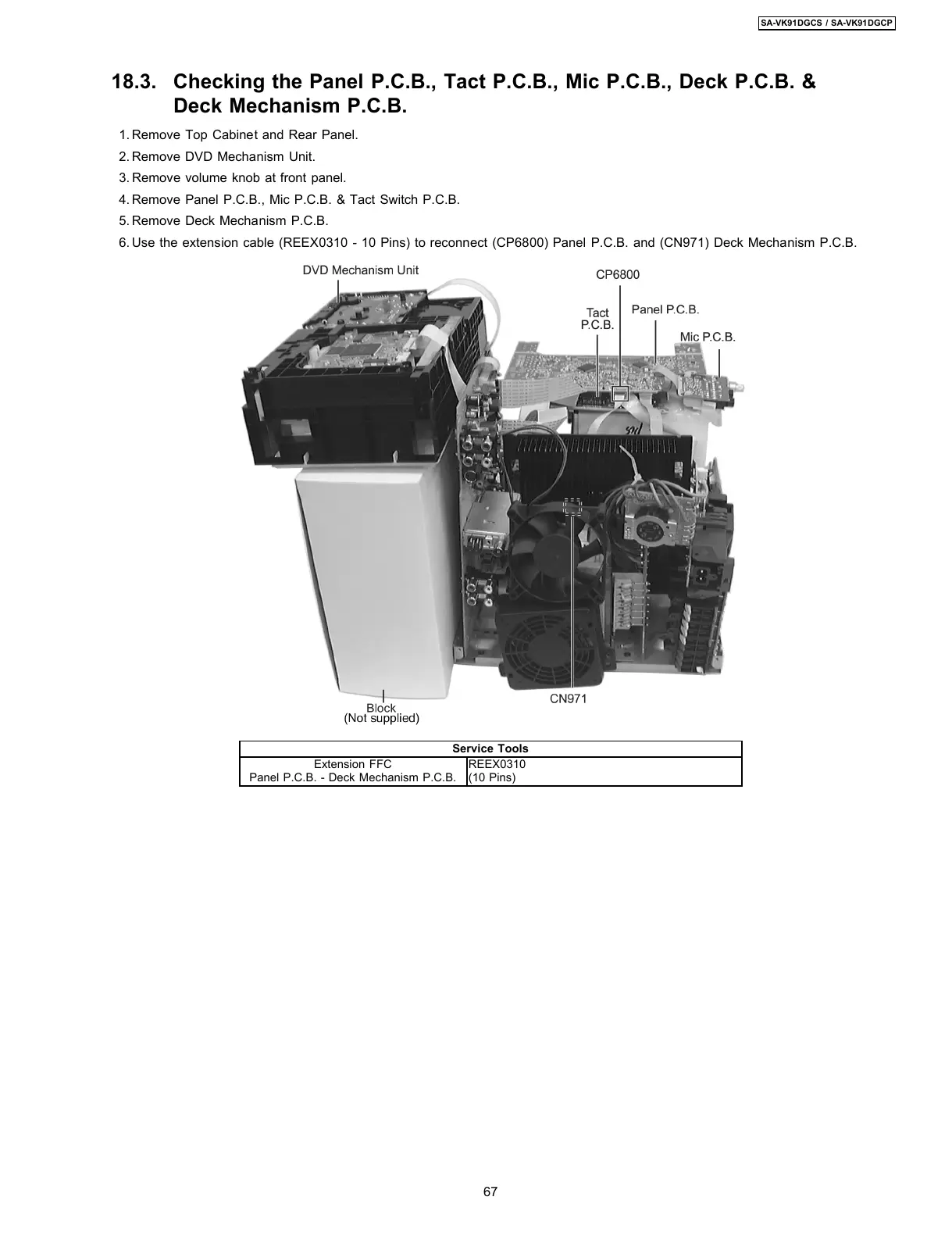

18.3. Checking the Panel P.C.B., Tact P.C.B., Mic P.C.B., Deck P.C.B. &
Deck Mechanism P.C.B.
1. Remove Top Cabinet and Rear Panel.
2. Remove DVD Mechanism Unit.
3. Remove volume knob at front panel.
4. Remove Panel P.C.B., Mic P.C.B. & Tact Switch P.C.B.
5. Remove Deck Mechanism P.C.B.
6. Use the extension cable (REEX0310 - 10 Pins) to reconnect (CP6800) Panel P.C.B. and (CN971) Deck Mechanism P.C.B.
Service Tools
Extension FFC
Panel P.C.B. - Deck Mechanism P.C.B.
REEX0310
(10 Pins)
67
SA-VK91DGCS / SA-VK91DGCP
