Panasonic SA-VK91D - Service Position; Checking Procedure; Checking the Main P.C.B., Speaker P.C.B., Power P.C.B., Sub Power P.C.B., Transformer P.C.B., Voltage Selector P.C.B. and AC Inlet

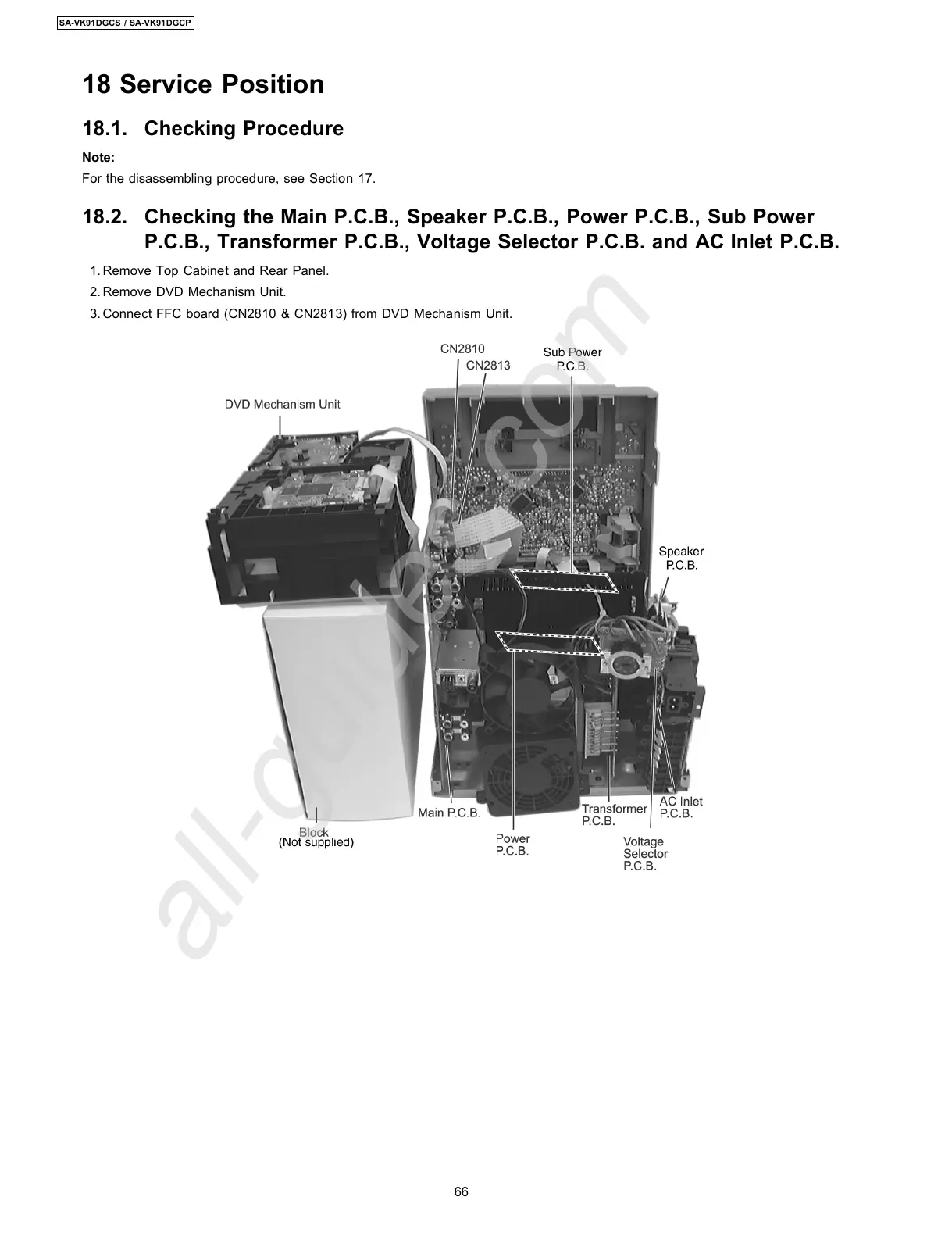

18 Service Position
18.1. Checking Procedure
Note:
For the disassembling procedure, see Section 17.
18.2. Checking the Main P.C.B., Speaker P.C.B., Power P.C.B., Sub Power
P.C.B., Transformer P.C.B., Voltage Selector P.C.B. and AC Inlet P.C.B.
1. Remove Top Cabinet and Rear Panel.
2. Remove DVD Mechanism Unit.
3. Connect FFC board (CN2810 & CN2813) from DVD Mechanism Unit.
66
SA-VK91DGCS / SA-VK91DGCP
