Ref. No. Part No. Part Name & Description Remarks
TRAVERSE DECK
301 RDG0519 MAIN GEAR [M]
302 RDG0520 SPEED UP GEAR [M]
303 RDG0521 REVERSE GEAR [M]
304 RDG0522 GENEVA GEAR [M]
305 RDG0523 HOR RELAY GEAR [M]
306 RDG0525 CROWN GEAR [M]
307 RDG0526 TRAY RELAY GEAR [M]
308 RDG0527 UD PULLEY GEAR [M]
309 RDG0528 HOR SPEED DOWN GEAR [M]
310 RDG0529 HOR SPEED DOWN GEAR [M]
311 RDG0530 HOR DRIVE GEAR [M]
312 RDG0531 LOAD RELAY GEAR [M]
313 RDG0532 LOAD GEAR [M]
314 RDG0535 UD SPEED DOWN GEAR [M]
315 RDG0534 UD SPEED DOWN GEAR [M]
316 RDG0536 SELECT SPEED DOWN GE [M]
317 RDG0537-1 SELECT DRIVE GEAR [M]
318 RDG0538-1 CHANGE GEAR [M]
319 RDG0539 UD DRIVE GEAR [M]
320 RDG0540 TIMING GEAR [M]
321 RDG0542 TRAY GEAR [M]
322 RDG0543 HOR PULLEY GEAR [M]
323 RDV0068 HOR BELT [M]
324 RDV0069 UD BELT [M]
325 RME0344-1 UD ASSIST SPRING [M]
326 RME0361 TRAY STOPPER SPRING [M]
327 RME0363-1 LIMIT SPRING [M]
328 RME0368-1 MAIN GEAR SPRING [M]
329 RML0616 SPEED UP LOCK [M]
330 RML0617-2 SEPARATE LEVER 1 [M]
331 RML0618-1 SEPARATE LEVER 2 [M]
332 RML0619-1 UD. CONNECTION LEVER [M]
333 RML0620 TRV.CONNECT LEVER [M]
334 RML0621-2 TRAY CHG. LEVER [M]
335 RML0622-1 TRAY LOCK LEVER [M]
336 RML0623 OPEN SW. LEVER [M]
337 RML0624 CHG. LEVER [M]
338 RML0637 TRAY STOPPER [M]
339 RMM0239-1 UD.RACK (L) [M]
340 RMM0240 UD.RACK (R) [M]
341 RMM0241-1 TRV.SLIDE PLATE (L) [M]
342 RMM0242-1 TRV.SLIDE PLATE (R) [M]
343 RMM0243 SELECT RACK [M]
344 RMM0244 SELECT GUIDE [M]
345 RMQ1051-2 PITCH PLATE [M]
346 RMQ1209 UD BASE [M]
347 RMQ1056 TRAY GUIDE (L) [M]
348 RMQ1057 TRAY GUIDE (R) [M]
349 RMQ1058 GEAR HOLDER [M]
350 RMQ1059-2 TOP COVER [M]
351 RMQ1060 CLAMP GUIDE [M]
352 RMQ1061 TG.PLATE [M]
353 RMR1531-X FIXTURE [M]
354 RMR1446-X CLAMPER [M]
355 RMR1407A-H1 TRAY NO. 1 [M]
356 RMR1407B-H1 TRAY NO. 2 [M]
357 RMR1407C-H1 TRAY NO. 3 [M]
358 RMR1407D-H1 TRAY NO. 4 [M]
359 RMR1407E-H1 TRAY NO. 5 [M]
360 RFKNAPM77MDS MECHA BASE ASS’Y [M]
361 RMS0762 TRAY GEAR SHAFT [M]
362 RXG0053 TRAY DRIVE GEAR ASSY [M]
363 RXQ0803 LOADING MOTOR ASS’Y [M]
364 RXQ0804 UD MOTOR ASS’Y [M]
365 XTB3+10J SCREW [M]
366 RMC0472 TRAY SPRING [M]
367 XTV2+6G SCREW [M]
368 XWG6FFY BACK YOKE [M]
369 JSM0048 MAGNET [M]
370 RMC0387 SUPPORT SPRING [M]
Ref. No. Part No. Part Name & Description Remarks
371 XTBS26+8J SCREW [M]
381 RAE2008W-S TRAVERSE SUB UNIT [M]
382 RMG0598-A FLOATING RUBBER [M]
383 RMG0617-H CUSHION RUBBER A [M]
384 RMG0618-H CUSHION RUBBER B [M]
385 RMR1596-K MIDDLE CHASSIS [M]
387 RMS0789 FIXED PIN [M]
388 RAF3112A-S DVD OPU 7.1H [M]
389 RMM0261 DRIVE RACK [M]

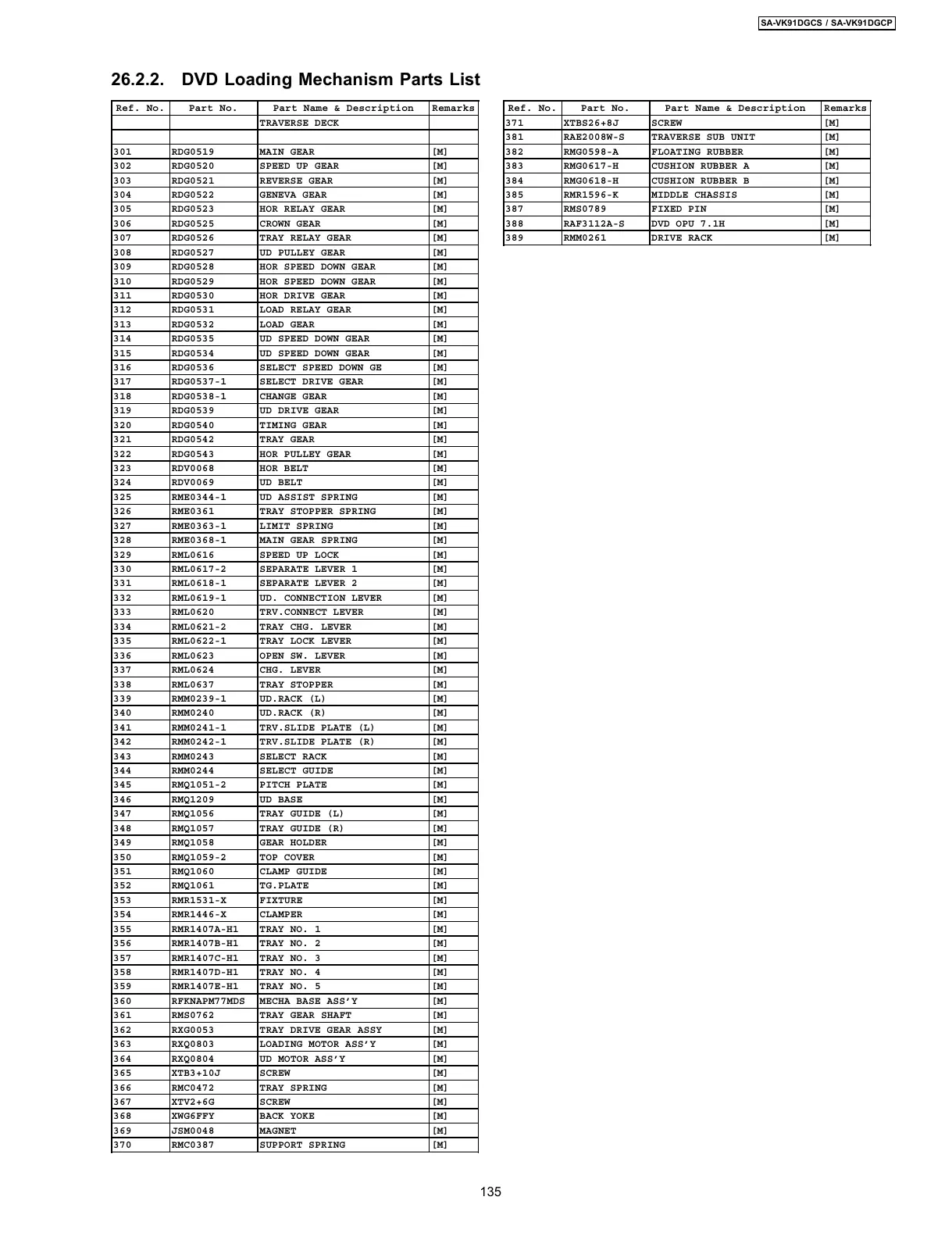

26.2.2. DVD Loading Mechanism Parts List
135
SA-VK91DGCS / SA-VK91DGCP
