Panasonic TH-42PV70H

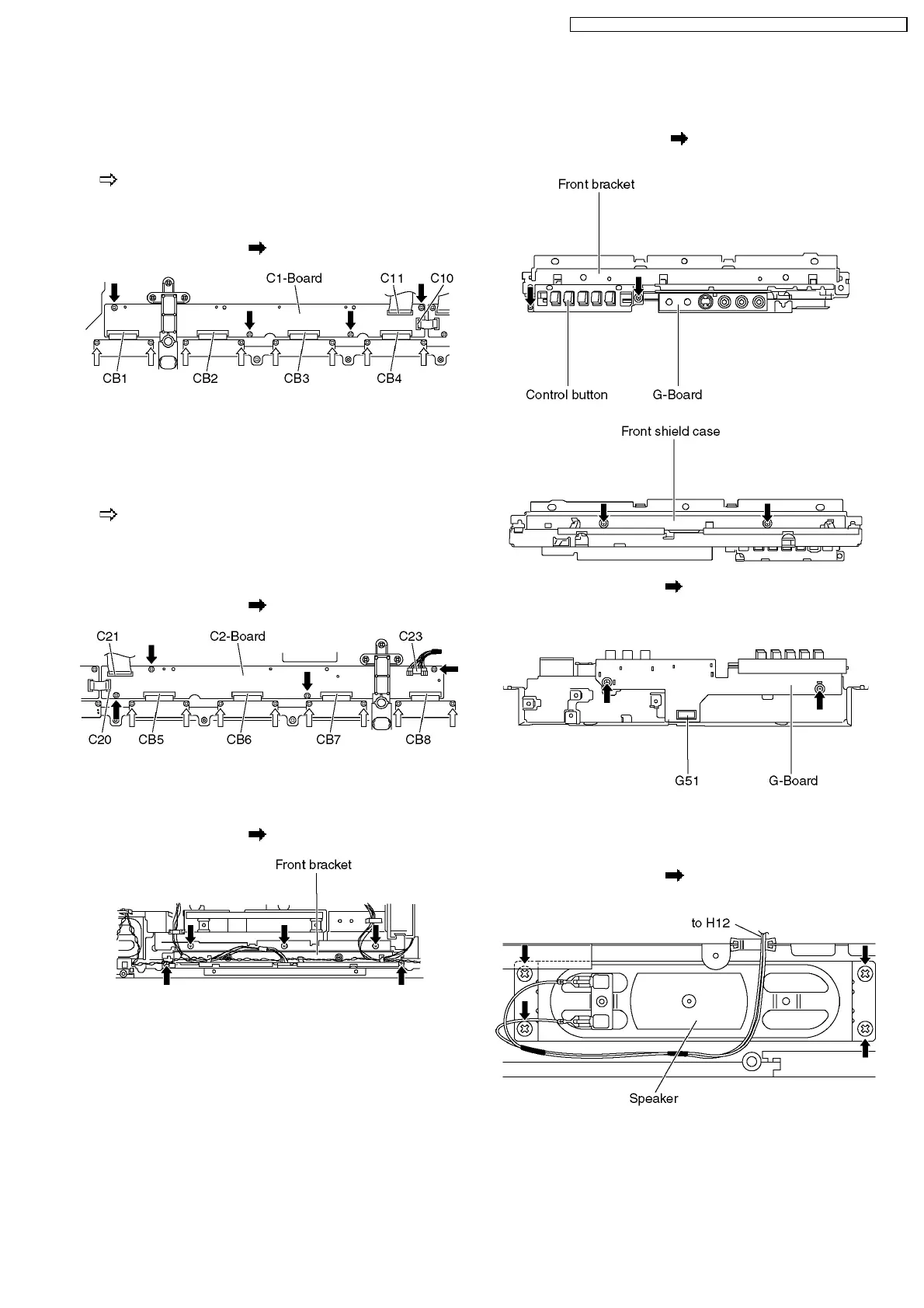

6.14. Remove the C1-Board
1. Remove the tuner unit. (See section 6.5.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×8
).
4. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).
5. Disconnect the flexible cables (C10 and C11).
6. Remove the screws (×4
) and remove the C1-Board.
6.15. Remove the C2-Board
1. Remove the tuner unit. (See section 6.5.)
2. Unlock the cable clampers to free the cable.
3. Remove the flexible cables holder fastening screws (×8
).
4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
5. Disconnect the flexible cables (C20 and C21).
6. Disconnect the connector (C23).
7. Remove the screws (×4
) and remove the C2-Board.
6.16. Remove the front bracket
1. Disconnect the connector (H51). (See section 6.5.)
2. Remove the screws (×5
) and remove the front bracket.
6.17. Remove the G-Board
1. Remove the front bracket. (See section 6.16.)
2. Remove the screws (×4
) and remove the front shield
case and the control button.
3. Remove the screws (×2 ) and disconnect the connector
(G51).
4. Remove the G-Board.
6.18. Remove the speaker L, R
1. Disconnect the connector (H12). (See section 6.5.)
2. Remove the screws (×4
each) and remove the speaker
L, R.
13
TH-42PV70AZ / TH-42PV70H / TH-42PV70M / TH-42PV70MR / TH-42PV70MT
