Panasonic TH-42PV70H - Service Hints; Rear Cover Removal; Board Identification

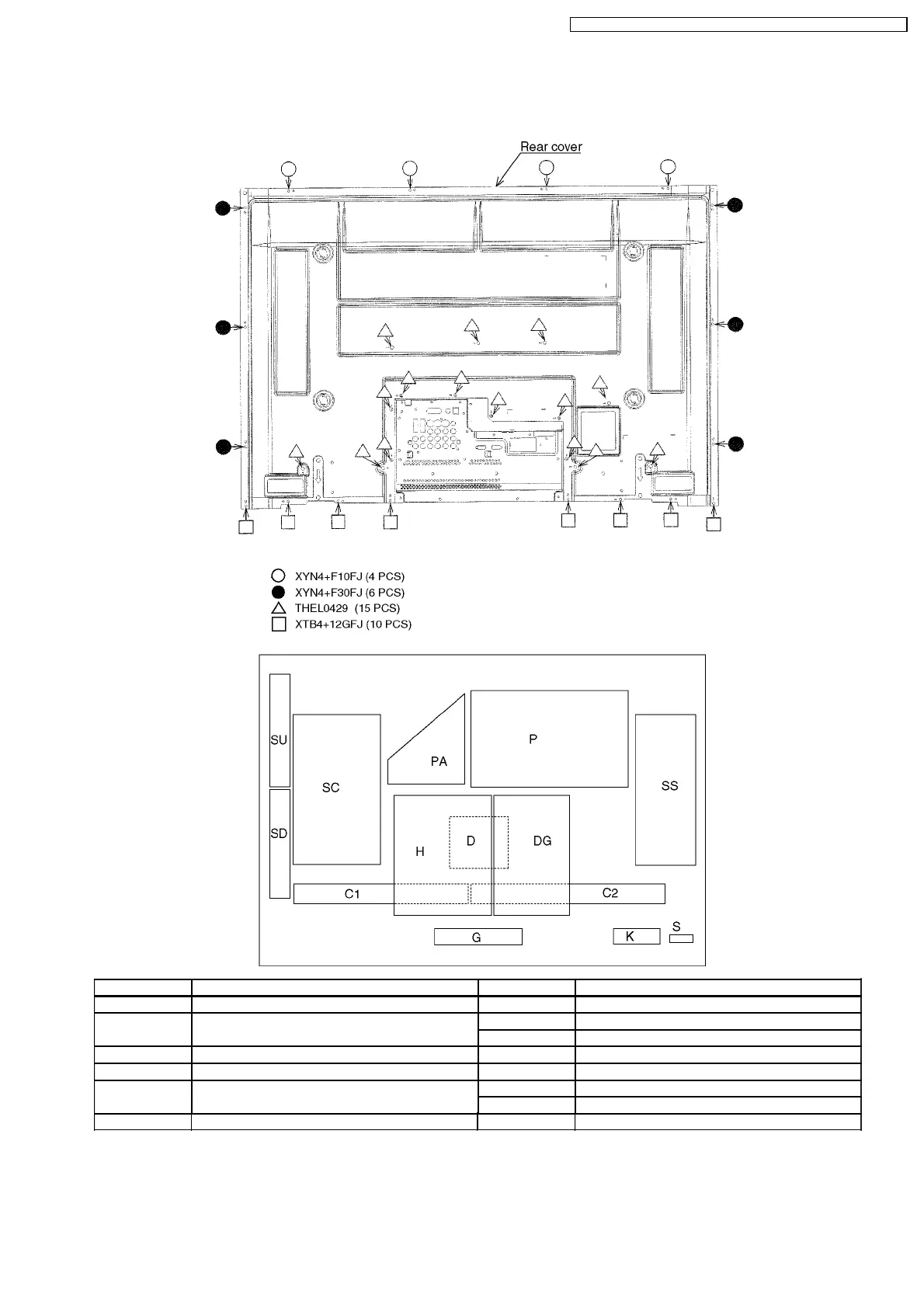

Remove the Rear Cover
5 Service Hint
Board Name Function Board Name Function
P Power Supply D Format Converter, Plasma AI, Sub-Field Processor
DG Digital Signal Processor, Micon, HDMI Interface
Peaks Lite 2
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Left)
K Remote receiver, Power LED SC Scan Drive
S Power Switch SU Scan out (Upper)
H Speaker out, Sound Processor
AV Terminal, AV Switch
SD Scan out (Lower)
SS Sustain Drive
PA DC-DC Converter G Key Switch, Front Terminal
9
TH-42PV70AZ / TH-42PV70H / TH-42PV70M / TH-42PV70MR / TH-42PV70MT
