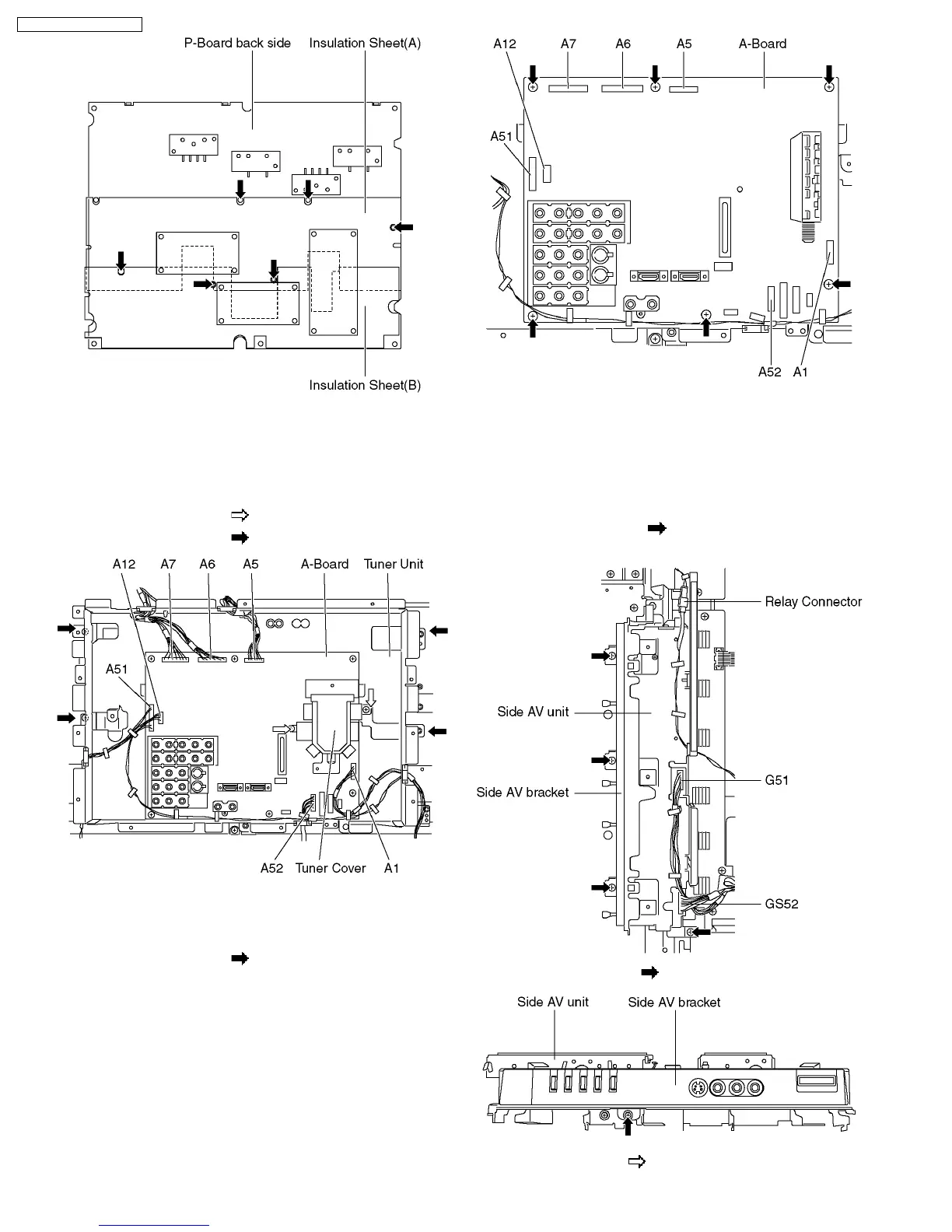

6.4. Remove the Tuner unit
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (A1, A5, A6, A7, A12, A51 and
A52).
3. Remove the screws (×2
) and remove the tuner cover.
4. Remove the screws (×4
) and remove the tuner unit.
6.5. Remove the A-Board
1. Remove the tuner unit. (See section 6.4.)
2. Remove the screws (×6
) and remove the A-Board.
6.6. Remove the side AV unit and
the side AV bracket.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (G51 and GS52) and relay
connector.
3. Remove the screws (×4
).
4. Remove the side AV unit.
5. Remove the screw (×1 ).
6. Remove the tabs (×4 ) and Remove the side AV bracket.
