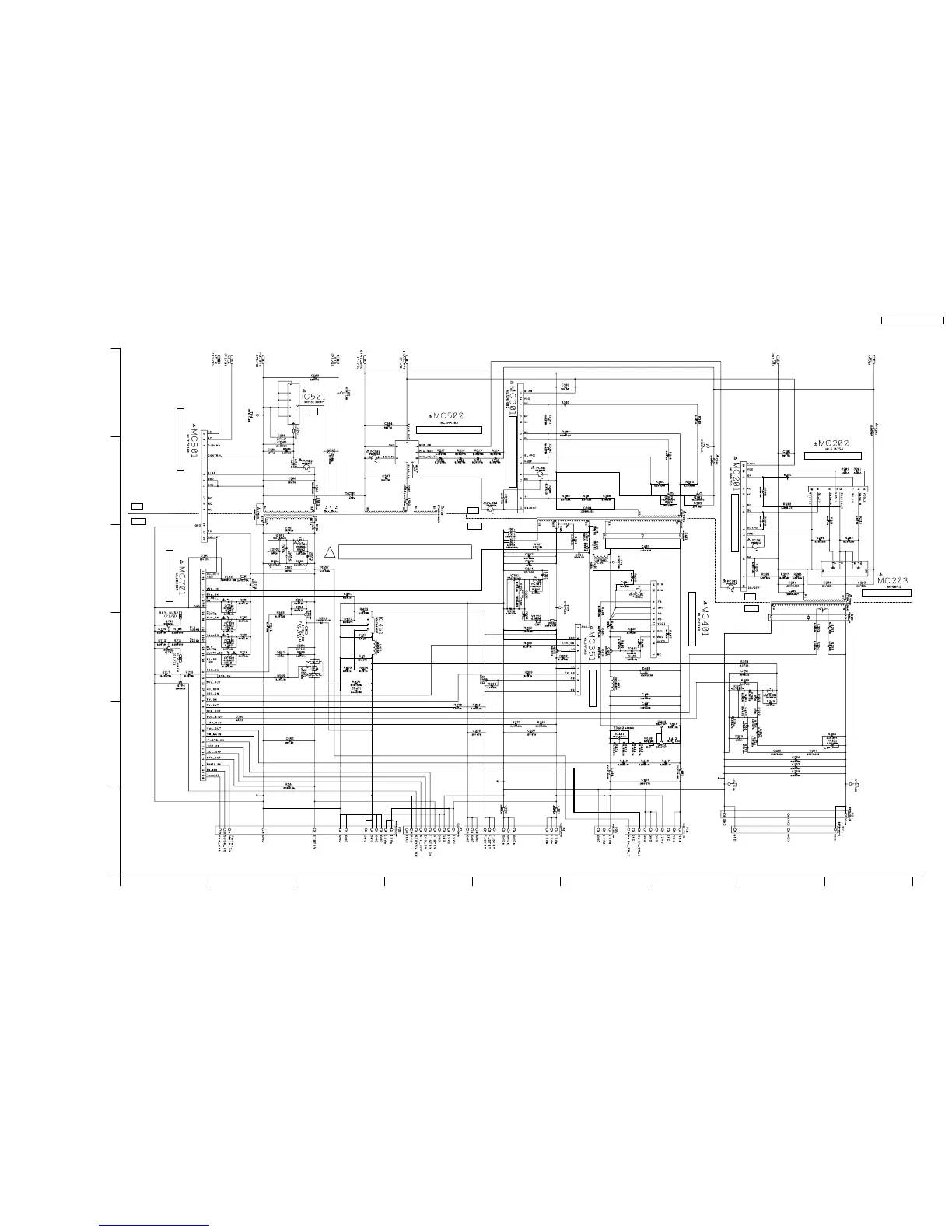

15.5. P-Board (2 of 2) Schematic Diagram
C
32
B
A
E
657
D
14
F
89
TH-50PX77U/PE77U
P-Board (2 of 2) Schematic Diagram
TH-50PX77U/PE77U
P-Board (2 of 2) Schematic Diagram
TO
D-BOARD
(D25)
TO
A-BOARD
(A6)
TO
A-BOARD
(A7)
TO
SS-BOARD
(SS12)
NO
USE
TO
SS-BOARD
(SS11)
TO
SC-BOARD
(SC2)
!
P-BOARD ETXMM655MEH (2/2)
PFC/BIAS CONTROL MODULE
<Exchange board only>
<Exchange board only>
IPD
Vsus POWER CONTROL 2
<Exchange board only>
<Exchange board only>
Vsus POWER CONTROL 1
Vda CONTROL MODULE
POWER CONTROL MODULE
<Exchange board only>
POWER MCU MODULE
<Exchange board only>
15V/FV ON/OFF
Vda POWER CONTROL MODULE
<Exchange board only>
<Exchange board only>
Vsus POWER SUPPLY
<Exchange board only>
HOT
COLD
HOT
COLD
HOT
COLD
