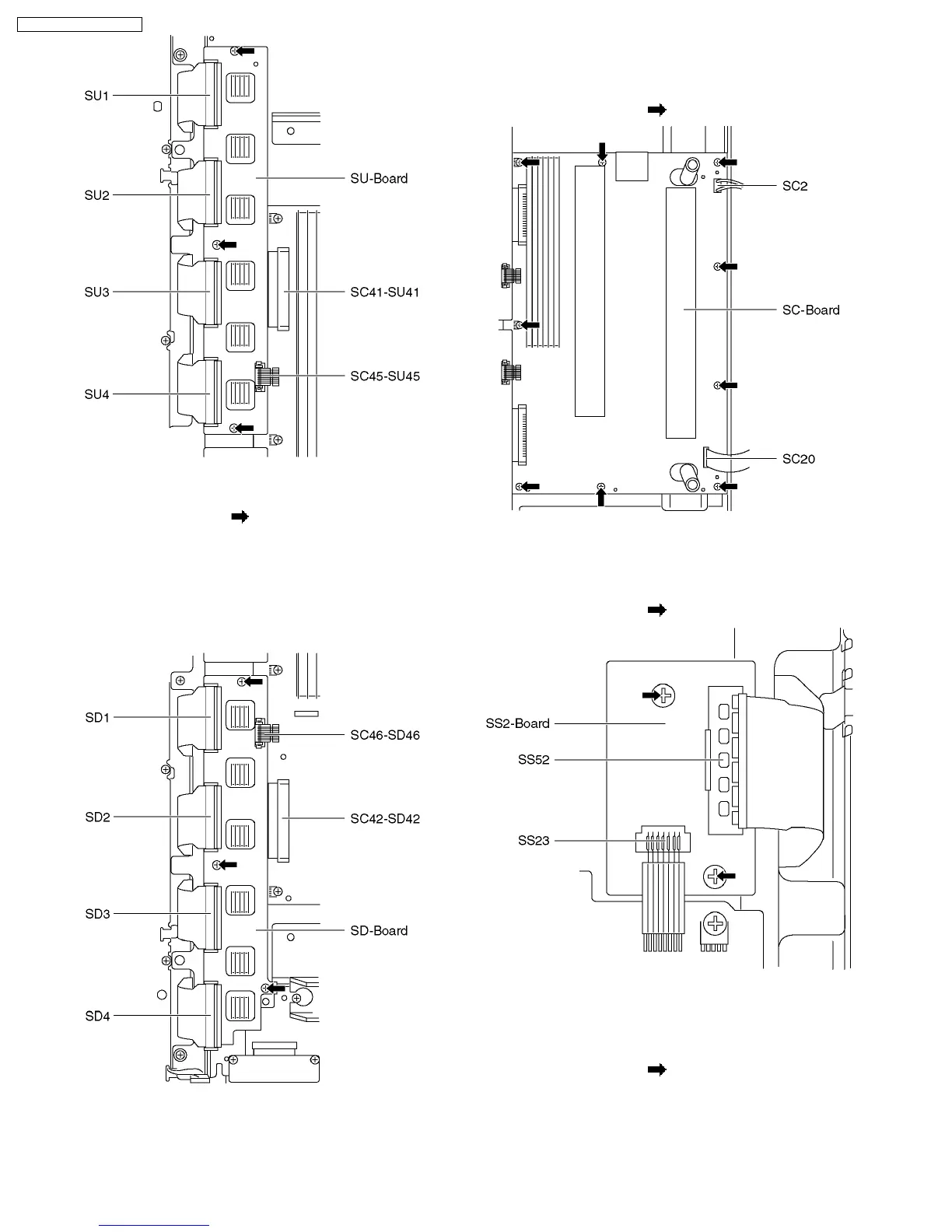

6.10. Remove the SD-Board
1. Remove the screws (×3 ).
2. Remove the flexible cables (SD1, SD2, SD3 and SD4)
connected to the SD-Board and remove the connector
(SC46-SD46).
3. Slide the SD-Board to the left to disconnect from a
connector (SC42-SD42) on the SC-Board and remove the
SD-Board.
6.11. Remove the SC-Board
1. Remove the SU-Board and SD-Board. (See section 6.9.
and 6.10.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connector (SC2).
4. Disconnect the flexible cable (SC20).
5. Remove the screws (×9
) and remove the SC-Board.
6.12. Remove the SS2-Board
1. Disconnect the connector (SS23) and disconnect the
flexible cable (SS52).
2. Remove the screws (×2
) and remove the SS2-Board.
6.13. Remove the SS3-Board
1. Disconnect the connector (SS24) and disconnect the
flexible cable (SS57).
2. Remove the screws (×2
) and remove the SS3-Board.
12
TH-50PX77U / TH-50PE77U
