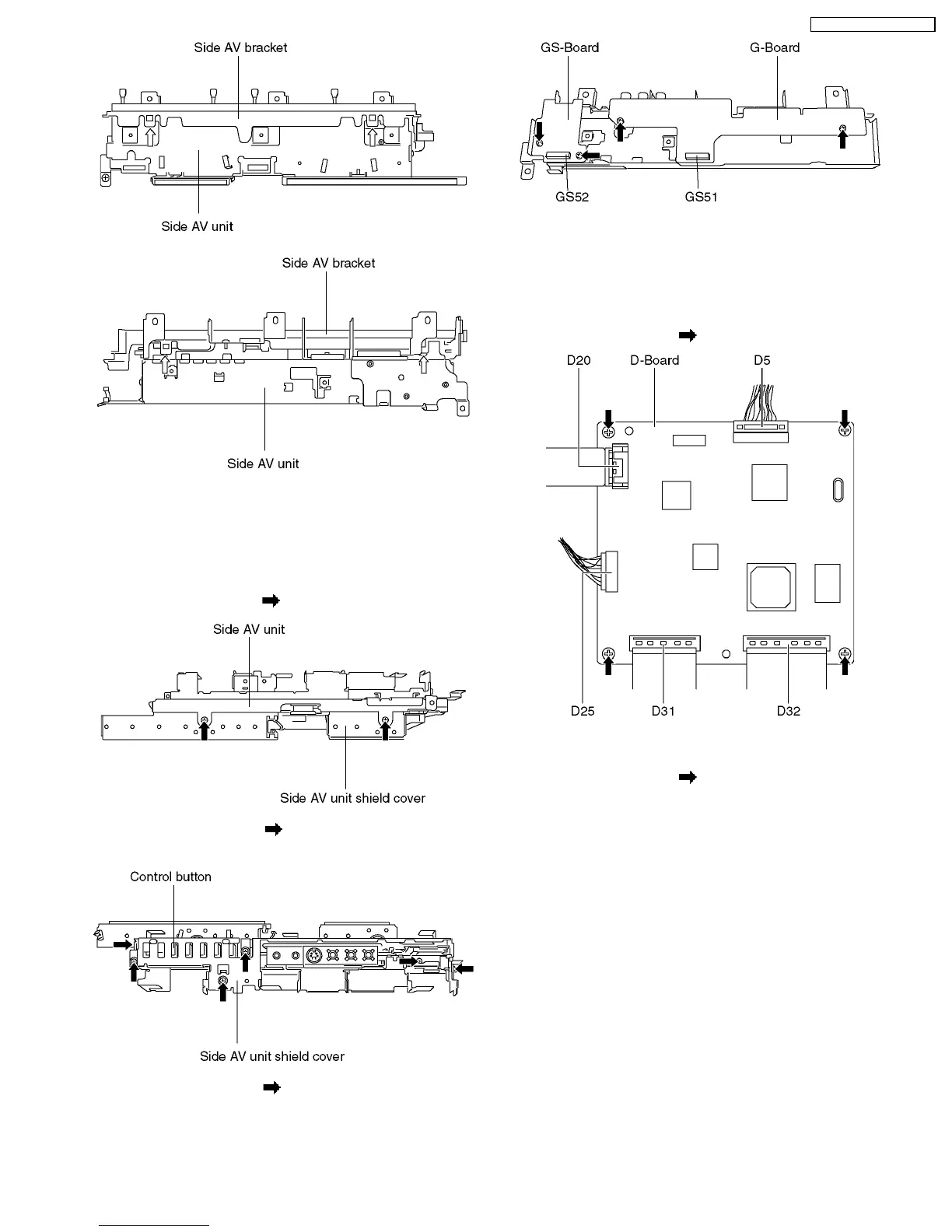

6.7. Remove the G-Board and GS-
Board
1. Remove the side AV unit and the side AV bracket. (See
section 6.6.)
2. Remove the screws (×2
).
3. Remove the screws (×6 ) and remove the side AV unit
shield cover and the control button.
4. Remove the screws (×4 ) and remove the G-Board and
GS-Board.
6.8. Remove the D-Board
1. Remove the tuner unit. (See section 6.4.)
2. Disconnect the connectors (D5 and D25).
3. Disconnect the flexible cables (D20, D31 and D32).
4. Remove the screws (×4
) and remove the D-Board.
6.9. Remove the SU-Board
1. Remove the screws (×3 ).
2. Remove the flexible cables (SU1, SU2, SU3 and SU4)
connected to the SU-Board and remove the connector
(SC45-SU45).
3. Slide the SU-Board to the left to disconnect from a
connector (SC41-SU41) on the SC-Board and remove the
SU-Board.
